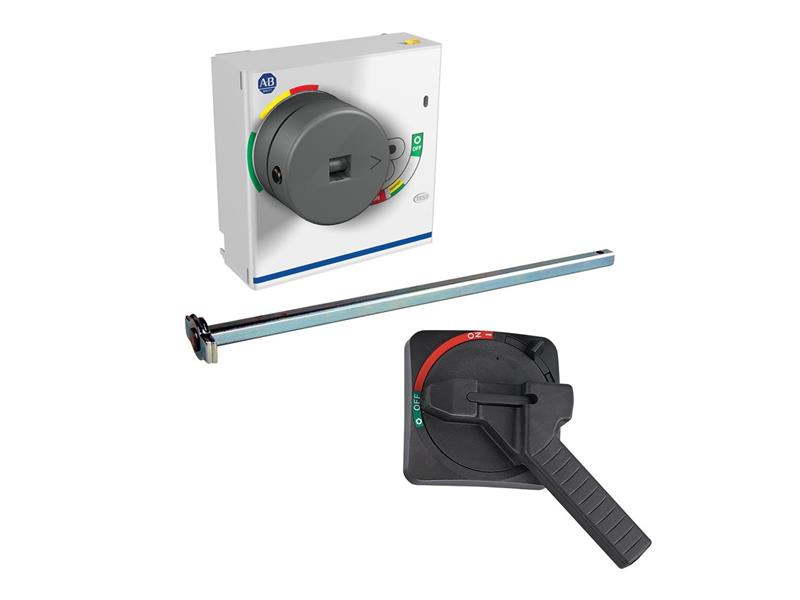

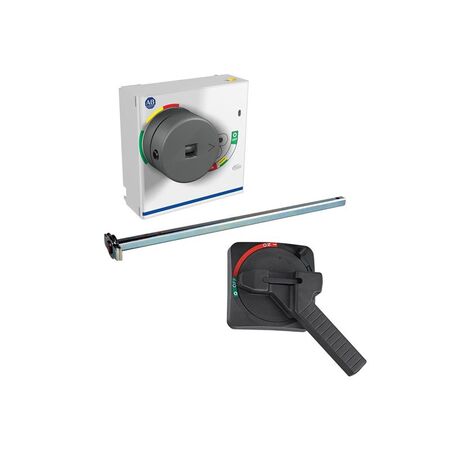

Circuit Breaker Frame M Frame 800 AMP | Rotary Mechanism | Black Handle | by Allen-Bradley
The Circuit Breaker Frame M Frame 800 AMP is designed for molded case circuit breakers, featuring a rotary operating mechanism and a durable black handle. Ideal for industrial electrical panels and electrical distribution systems, this frame ensures reliable protection against electrical faults, making it essential for safety and compliance in high-capacity applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frame Type: M Frame
- Current Rating: 800 AMP
- Operating Mechanism: Rotary
- Handle Color: Black
- Shaft Length: 12 inches
- Dimensions (H x L x W): 200mm x 100mm x 150mm
- Weight: 3.5 kg
Key Features
- Circuit breaker frame designed for molded case circuit breakers
- M Frame type with 800 AMP rating
- Rotary operating mechanism with black rotary handle
- 12 inch shaft length for ease of operation
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial electrical panels
- Molded case circuit breaker installations
- Electrical distribution systems requiring 800 AMP capacity
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports reliable electrical protection reducing risk of electrical faults and fires
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 140GMRVM12B Circuit Breaker Frame is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
