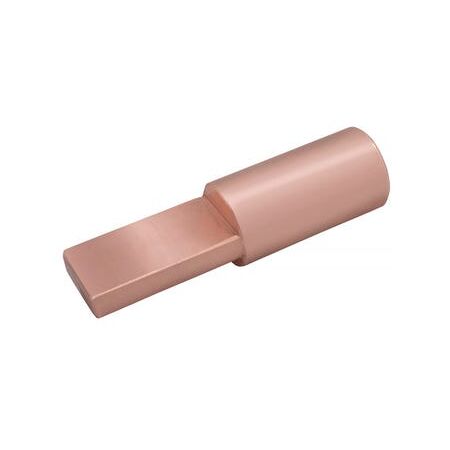

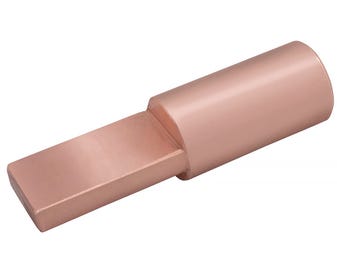

Circuit Breaker Lug 400mm2 | 33mm Wide Palm | High Conductivity Copper | Narrow Design by Cabac

BRAND: CABAC
SKU: CALCB400
$123.70 List price: $149.70
+ −
30 Days Return Delivery Options
Cabac Circuit Breaker Lug 400mm2 with 33mm wide blank palm is designed for terminating large cables to circuit breakers, featuring a narrow palm and high conductivity copper for superior electrical performance.

Product Name/Title: Circuit Breaker Lug 400mm2 33mm Wide Blank Palm

Brand: Cabac

SKU: CALCB400

Alternatively Known As: Copper Circuit Breaker Lug, Electrical Lug, Cable Lug, Circuit Breaker Terminal Lug

Technical Specifications
  • Conductive Material: Copper 99.95% pure
  • Oxygen content: 30 p.p.m max
  • Tensile strength: 200 MPa
  • Ductile rating: 40%
  • Final metal state: Fully annealed
  • Electroplating Material: Tin 99.9% pure with lead and antimony
  • Electroplating thickness: 5-10 microns
  • Total conductivity: 99.7% IACS
  • Total resistivity: 1.738 micro-ohm cm
  • Operating temperature range: -55 to 155°C
  • Tooling compatible with CABAC, Utilux, and Burndy
  • Dimensions (H x L x W): 10mm x 100mm x 33mm
  • Weight: 0.2 kg
Key Features
  • Narrow palm design fits into circuit breaker connection tunnel
  • Unique bell mouth for easier insertion of fine stranded conductors
  • Made from 99.9%+ high conductivity copper for optimal electrical properties
  • Same barrel dimensions as standard range for normal crimping
  • Tooling interchangeable with CABAC, Utilux, and Burndy
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure proper crimping and secure connections.
Applications
  • Terminating large cables to circuit breakers
  • Use in switchboards with flexible cables
  • Suitable for 150 to 250A circuit breakers with narrow connection tunnels
Standards & Compliance
  • Complies with AS/NZS 4325 Part 1
Environmental Benefits
  • Made from high purity copper which is recyclable
  • Durable design reduces need for frequent replacements
Warranty Information

Warranty details available upon request from Cabac.

Available Now

The Cabac Circuit Breaker Lug 400mm2 33mm Wide Blank Palm is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable cable termination.
