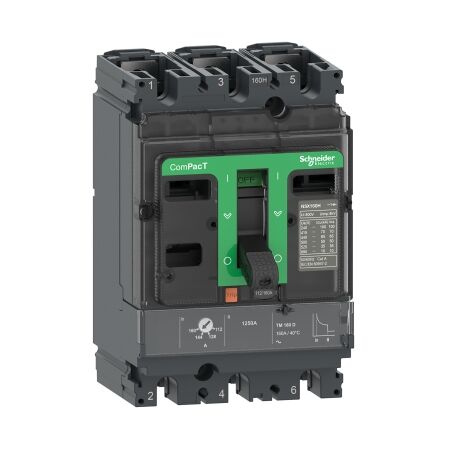

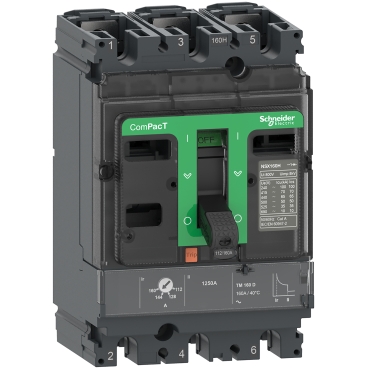

Circuit Breaker NSX100 3P | 70kA Breaking Capacity | Thermal Magnetic Trip | Compact Design | @Pack of 1 | by Clipsal
The Circuit Breaker NSX100 3P is engineered for robust electrical protection with a high breaking capacity of 70kA at 415VAC and a thermal-magnetic trip unit rated at 100A. Ideal for commercial and industrial applications, this molded case circuit breaker ensures reliable overload and short circuit protection, making it perfect for main and sub-main switchboards in large facilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circuit Breaker NSX100 3P | 70kA Breaking Capacity | Thermal Magnetic Trip | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC10H3TM100
Alternatively Known As: ComPacT NSX100H, 100A 3 Pole Circuit Breaker, 70kA MCCB, Schneider NSX100, Industrial Circuit Breaker
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Poles: 3
- Rated Current: 100A
- Breaking Capacity: 70kA at 415VAC
- Trip Unit: Thermal Magnetic (TMD)
- Rated Voltage: 415VAC
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- ComPacT NSX100H circuit breaker with 3 poles
- High breaking capacity of 70kA at 415VAC
- Thermal-magnetic (TMD) trip unit rated at 100A
- Robust protection against overloads and short circuits
- Compact design for easy integration into switchboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of circuits against overloads and short circuits
- Suitable for use in infrastructure, manufacturing, and large facilities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Circuit Breaker NSX100 3P 70kA AC 100A is available for immediate purchase. Ideal for commercial and industrial electrical protection applications.
