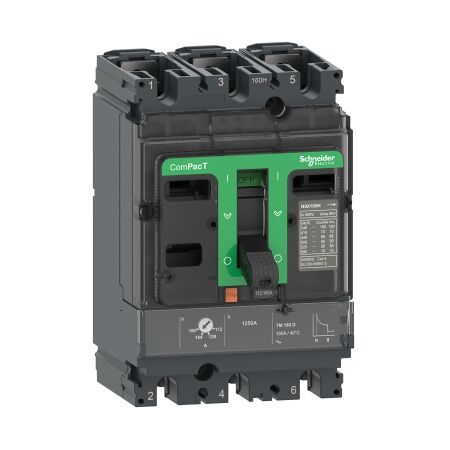

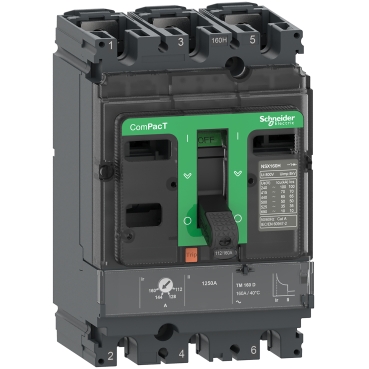

Circuit Breaker NSX100H 3P TripUnit 80A | TMD Trip Unit | 70kA Breaking Capacity | Compact Design | @Pack of 1 | by Clipsal
The Circuit Breaker NSX100H 3P TripUnit 80A is a molded case circuit breaker designed for reliable protection in commercial and industrial electrical distribution. With a TMD trip unit rated at 80A and a high breaking capacity of 70kA at 415VAC, it ensures safety and efficiency in power distribution. Ideal for use in main and sub-main switchboards, this robust breaker is perfect for factories, warehouses, and large buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circuit Breaker NSX100H 3P TripUnit 80A | TMD Trip Unit | 70kA Breaking Capacity | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC10H3TM080
Alternatively Known As: ComPacT NSX100H Circuit Breaker, 80A 3 Pole MCCB, Schneider NSX100H, 3P 80A TMD Breaker, SCHC10H3TM080
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Rated Current: 80A
- Number of Poles: 3
- Trip Unit: TMD (Thermal Magnetic)
- Breaking Capacity: 70kA at 415VAC
- Rated Voltage: 415VAC
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.2 kg
Key Features
- ComPacT NSX100H molded case circuit breaker
- 3 pole, 3d configuration for three-phase systems
- TMD (Thermal Magnetic) trip unit rated at 80A
- High breaking capacity: 70kA at 415VAC
- Robust design for reliable circuit protection
- Compact size for easy integration into panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution panels
- Main and sub-main switchboards
- Protection of circuits in factories, warehouses, and large buildings
- Suitable for use in infrastructure and utility projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables safe and efficient power distribution, reducing risk of electrical fires and equipment damage.
- Supports energy management by providing reliable circuit protection and minimizing downtime.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Circuit Breaker NSX100H 3P TripUnit 80A (SCHC10H3TM080) is available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
