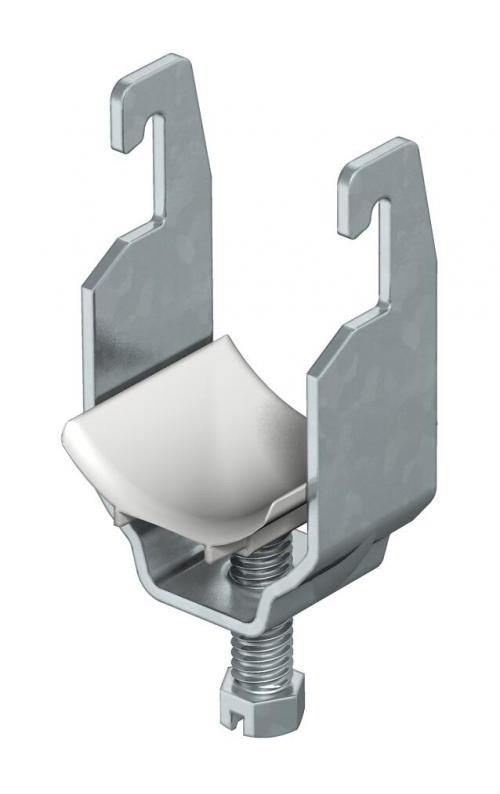

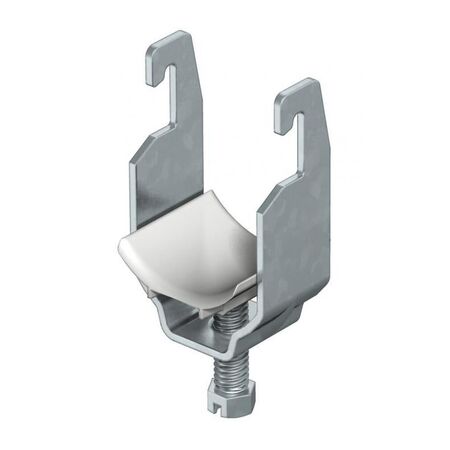

Clamp Clip 34-40mm Hot Dip Galvanised OBO
OBO clamp clip features 34-40mm clamping range and hot dip galvanised finish. Ideal for fixing conduit and cable to walls and structures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: OBO single clamp clip, metal pressure trough clamp, cable and conduit clamp
Technical Specifications
- Clamping Range: 34–40 mm
- Material: Steel
- Pressure Trough: Hot-dip galvanised steel
- Surface Finish: Hot-dip galvanised to DIN EN ISO 1461
- Mounting Type: C-profile rail
- Compatible Rail Slot Width: 16–17 mm
- Number of Cables or Pipes: 1
- Thread: M8
- Maximum Tightening Torque: 5 Nm
- Smallest Sales Unit: 100 pieces
- Dimensions (H x L x W): 72mm x 44mm x 45mm
- Weight: 0.1 kg
Key Features
- 34–40 mm clamping range for large cable and conduit installations
- Metal pressure trough with rounded cable-contact surfaces
- Suitable for horizontal and vertical mounting on compatible C-profile rails
- Hot-dip galvanised finish for improved corrosion resistance
- Suitable for indoor and outdoor applications
- Designed for single-cable or single-conduit support
Applications
- Securing electrical conduit to C-profile support rails
- Supporting power, data and telecommunications cables
- Cable routing in commercial, industrial and infrastructure installations
- Indoor and outdoor cable support systems
- Mounting cable and conduit to walls, ceilings and structural frameworks
Standards & Compliance
- AS/NZS 3000:2018 Wiring Rules — cable and conduit support and fixing methods should be selected and installed in accordance with the standard
Environmental Benefits
- Steel components can be recycled at the end of service life
- Hot-dip galvanising helps extend service life and reduce replacement waste
- Durable construction supports longer-lasting cable-management installations
Warranty Information
Warranty details vary by supply channel; refer to OBO warranty terms and the authorised distributor’s conditions for the applicable product warranty.
Available Now
Available through authorised OBO distributors in Australia.
