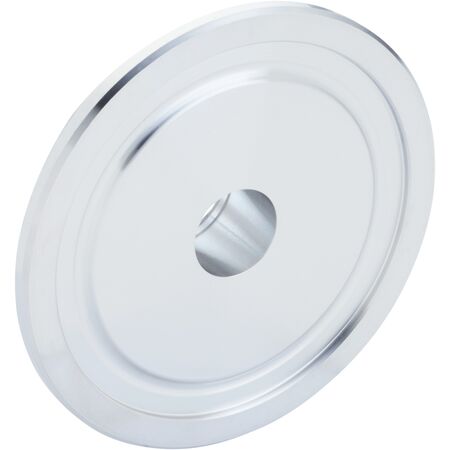

Clamp Coupling DN50 to DIN EHEDG Approved Stainless Steel 1.4435 SICK

BRAND: SICK
SKU: 2144186
$215.10 List price: $270.30
+ −
30 Days Return Electricians Unlock Trade Access
The Clamp Coupling DN50 to DIN Standard is designed for secure flange connections in hygienic applications.

Product Name/Title: Clamp Coupling DN50 to DIN Standard | EHEDG Approved | Stainless Steel 1.4435 | by SICK

Brand: SICK

SKU: 2144186

Alternatively Known As: Clamp Coupling DN50, Hygienic Flange Coupling, Sanitary Pipe Clamp, DIN11864-3 Clamp

Technical Specifications
  • Accessory group: Mounting systems
  • Accessory family: Flanges and nozzles
  • Clamp coupling DN50 to DIN, form A, DIN11864-3
  • Compatible pipe size: 41 x 1.5 mm
  • Material: Stainless steel 1.4435
  • Surface roughness: Ra < 0.76 µm
  • EHEDG approved
  • Dimensions (H x L x W): 70mm x 50mm x 70mm
  • Weight: 1.2 kg
Key Features
  • Clamp coupling DN50 to DIN standard
  • Form A, DIN11864-3 compliant
  • Designed for 41 x 1.5 pipe
  • Material: Stainless steel 1.4435 with surface roughness Ra < 0.76 µm
  • EHEDG approved for hygienic applications
Professional Installation Requirements
  • Installation by qualified personnel familiar with hygienic piping systems and DIN standards is recommended to ensure proper sealing and compliance.
Applications
  • Industrial piping systems requiring secure flange connections
  • Food and beverage processing plants
  • Pharmaceutical manufacturing facilities
  • Sanitary and hygienic process installations
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • EHEDG approval ensures hygienic design reducing contamination risk and waste
  • Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK warranty terms for details.

Available Now

The SICK HYGADAPT-P.XKW clamp coupling is available for immediate purchase, ideal for hygienic and industrial piping system installations.
