Class CC Time Delay Fuse | 5A Amperage | 600V Voltage | 200kA Interrupting Rating | @Each by Eaton
The Class CC Time Delay Fuse is a 5A, 600V current-limiting fuse designed for line protection and industrial control applications. With a 200kA interrupting rating and a response time of 12 seconds at 200% overload, this non-indicating fuse ensures safety and compatibility in various electrical systems. Ideal for qualified electricians, it meets AS/NZS 3000 standards and is RoHS compliant for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

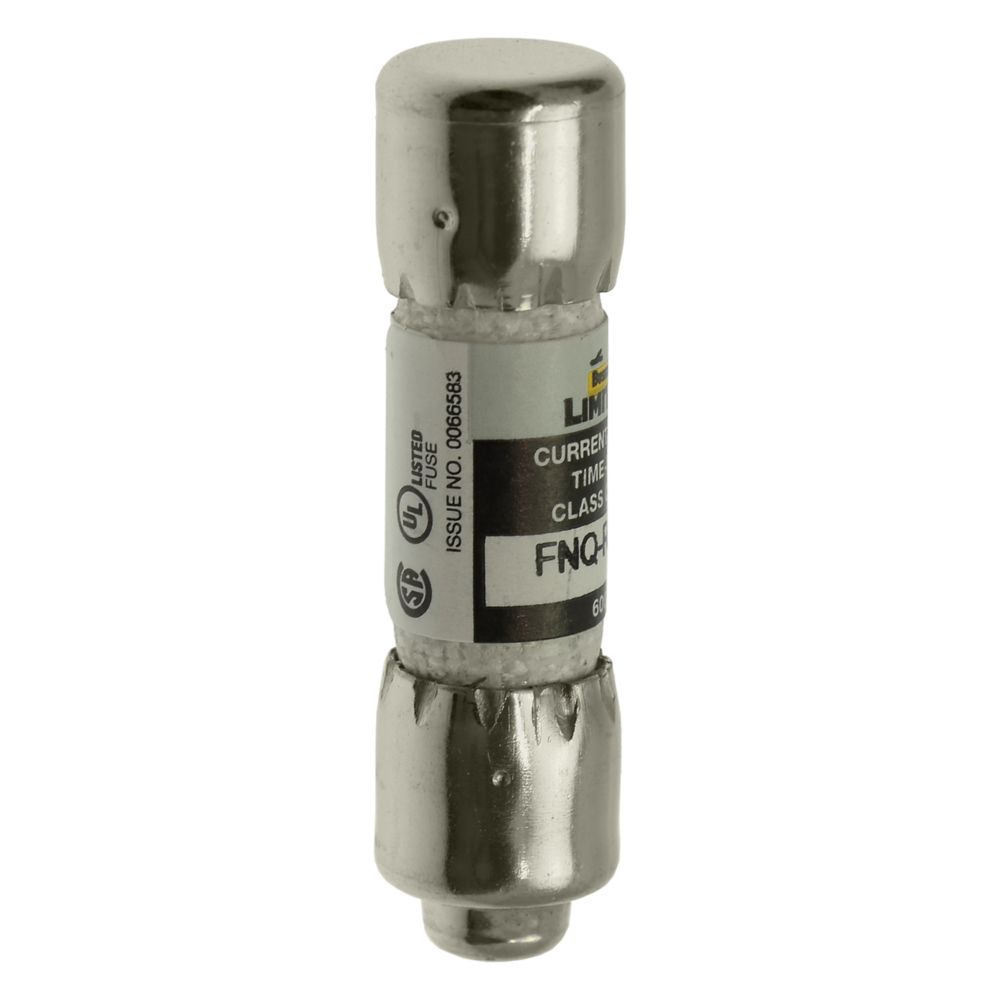

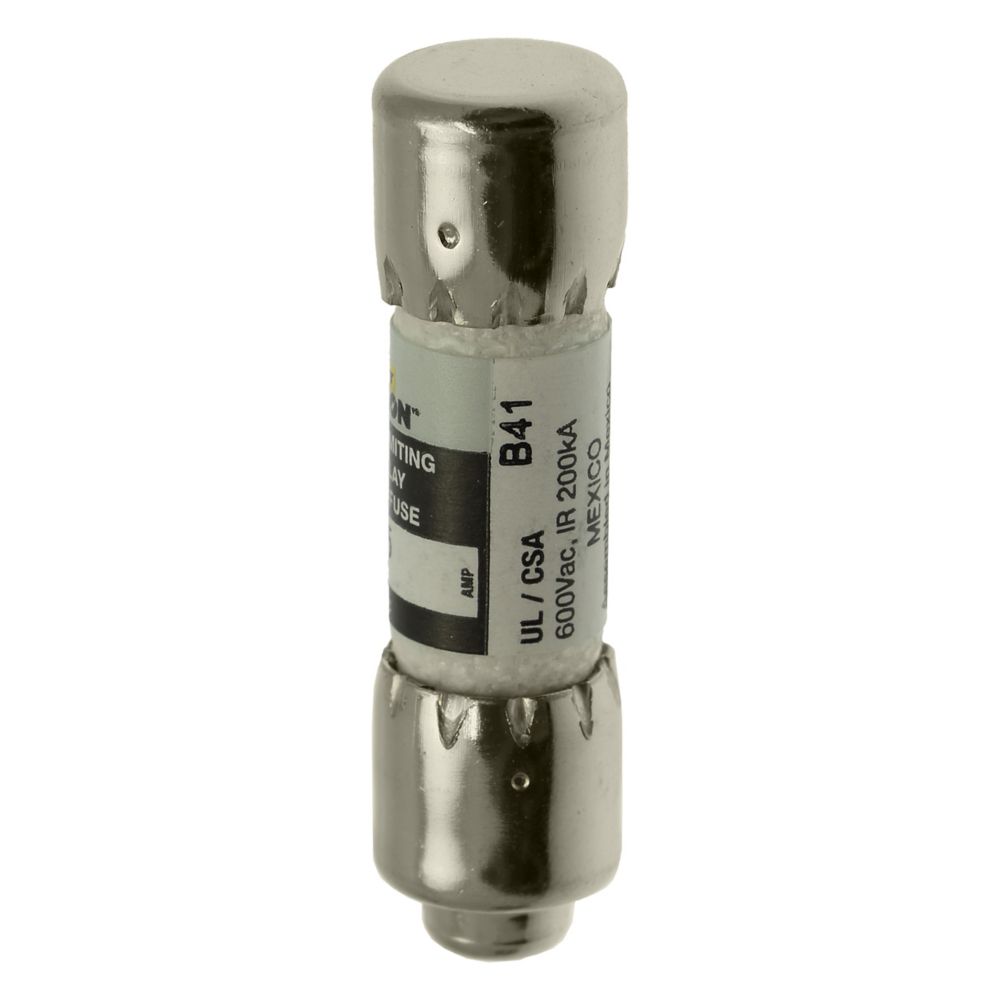

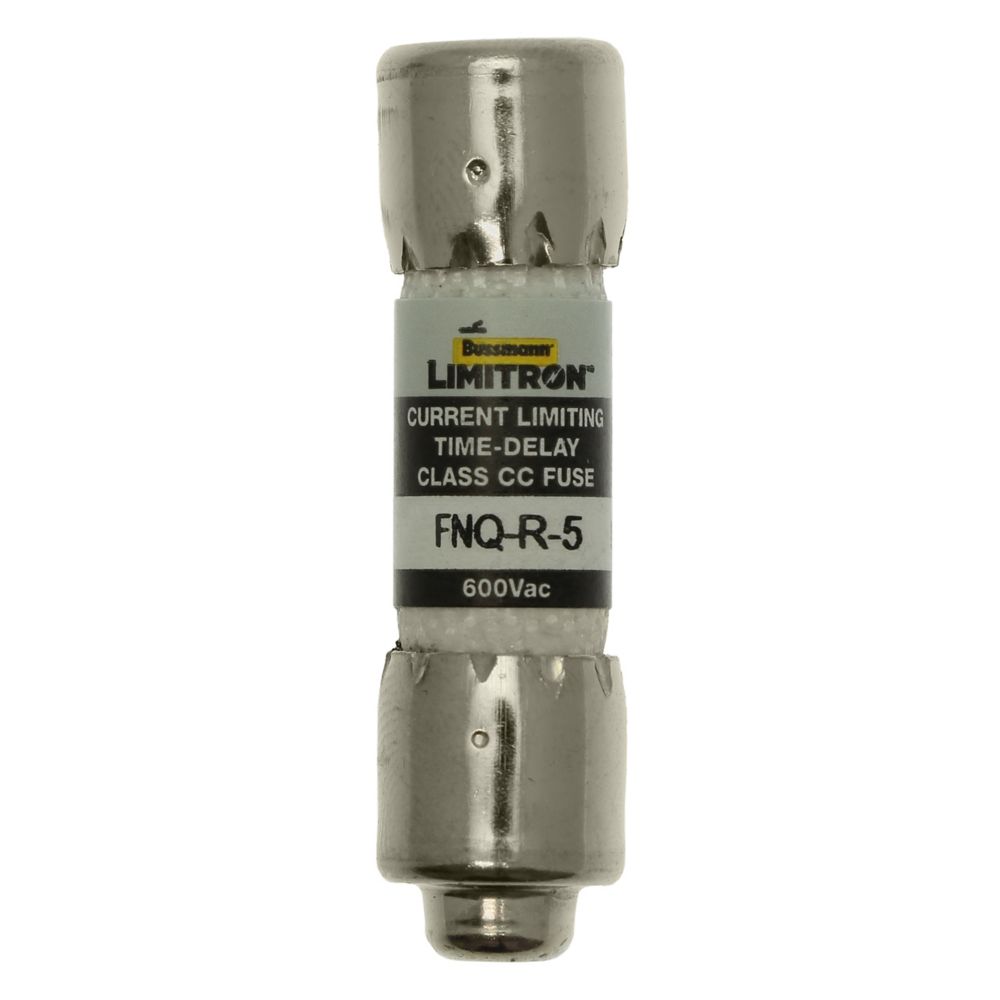

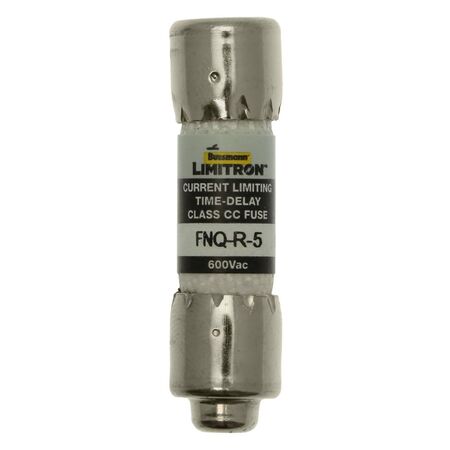

Product Name/Title: Class CC Time Delay Fuse | 5A Amperage | 600V Voltage | 200kA Interrupting Rating | @Each by Eaton
Brand: Eaton
SKU: FNQ-R-5
Alternatively Known As: Class CC fuse, Time delay fuse, FNQ-R-5 fuse, Eaton FNQ fuse, Current limiting fuse
Technical Specifications
- Amperage Rating: 5 A
- Voltage Rating: 600 V
- Interrupting Rating: 200 kAIC
- Fuse Type: Current-limiting high inrush time-delay fuse
- Material: Melamine tube
- Connection: Ferrule end x ferrule end
- Response Time: 12 seconds at 200% overload
- Fuse Indicator: Non-indicating
- Special Features: Rejection style
- Dimensions (H x L x W): 38mm x 10mm x 10mm
- Weight: 0.1 kg
Key Features
- Class CC time-delay dual-element current limiting fuse
- Rejection style fuse for safety and compatibility
- Interrupting rating of 200kA at 600Vac
- Non-indicating fuse
- Ferrule end to ferrule end connection
- Response time: 12 seconds at 200% overload
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Line protection
- Small control transformers
- Industrial control
- Branch circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Not applicable
Available Now

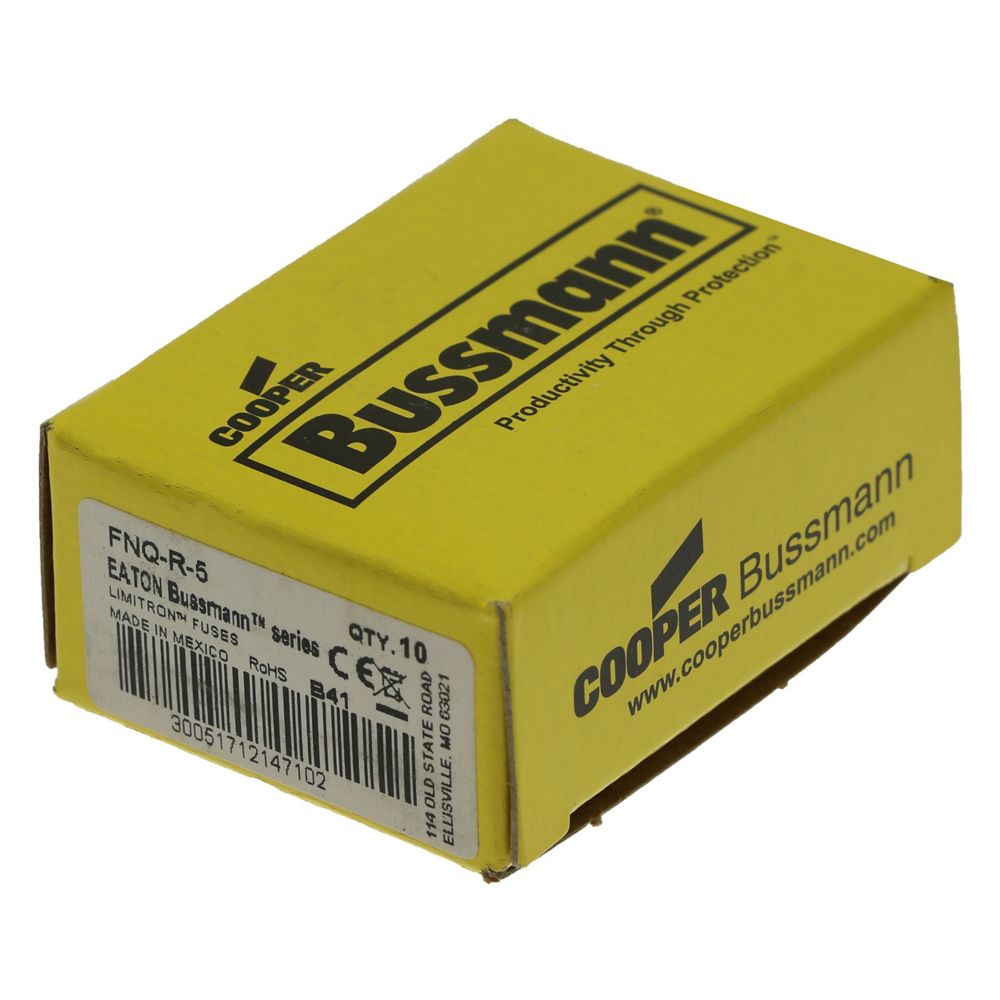

The Eaton Bussmann Series Class CC Time Delay Fuse FNQ-R-5 5A is available for immediate purchase, ideal for industrial control and branch circuit protection applications.
