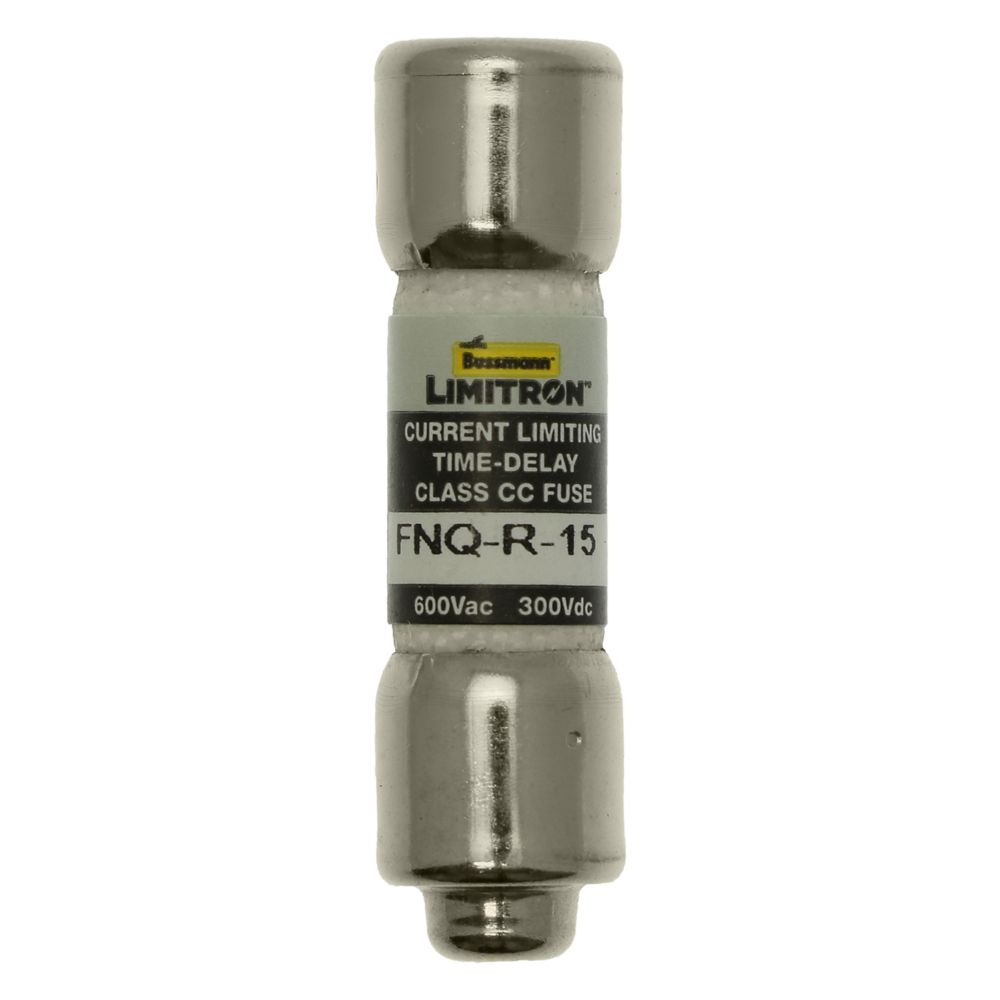

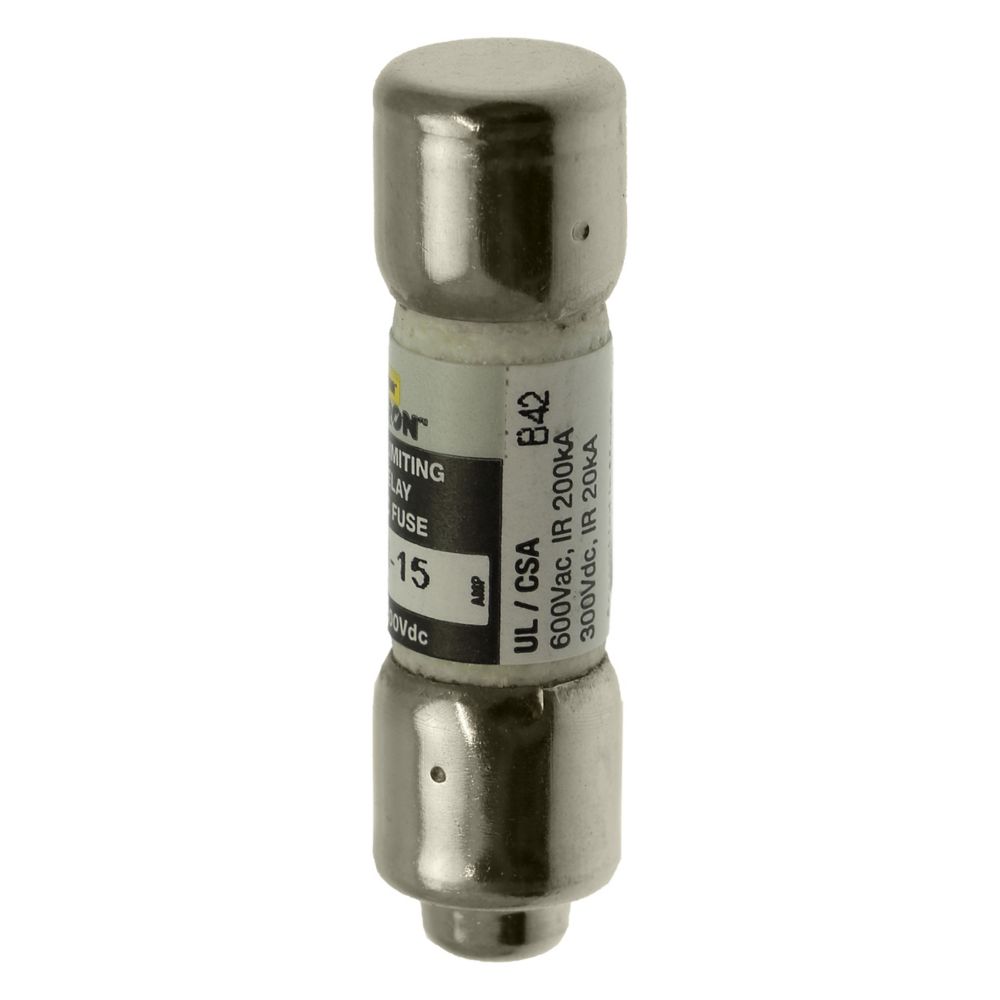

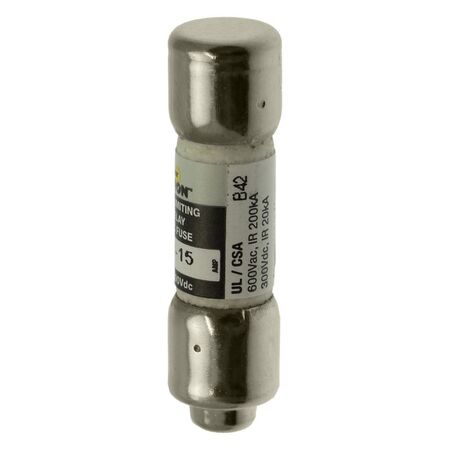

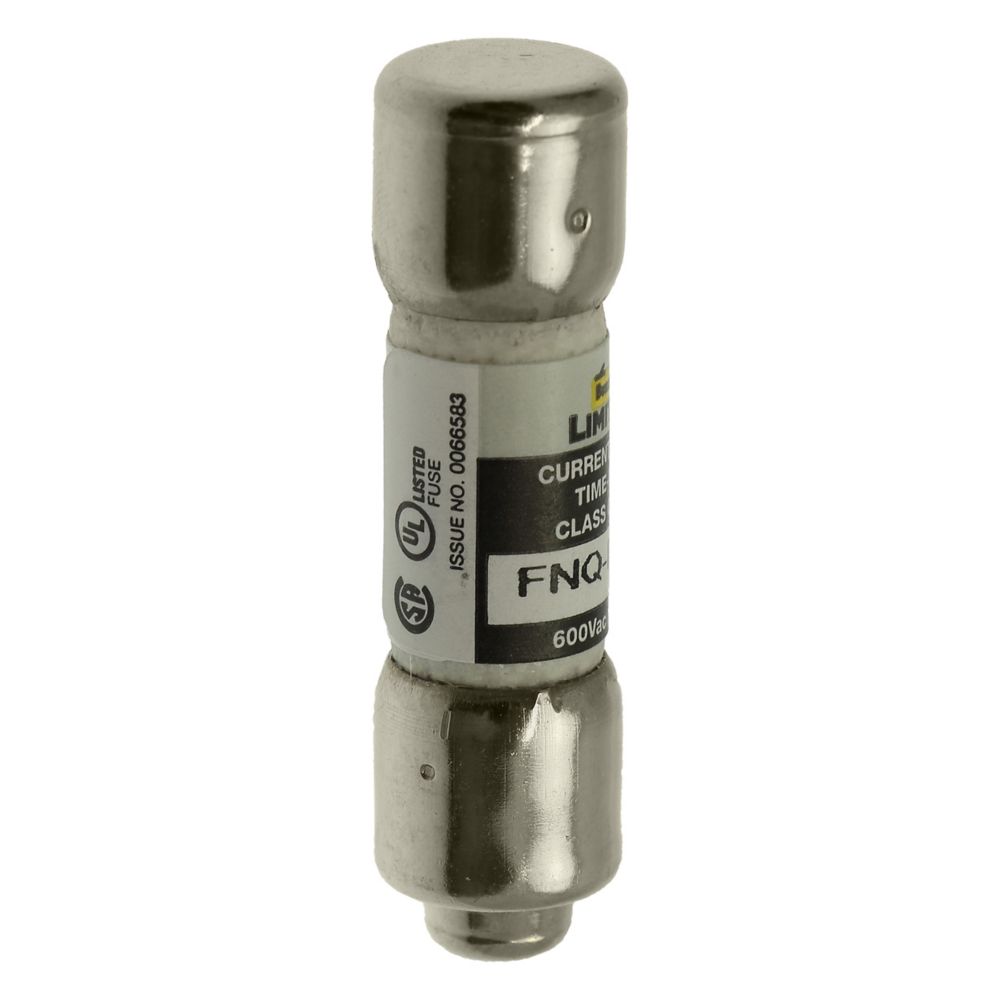

Class CC Time Delay Rejection Fuse | 15A Amperage | 200kA Interrupting Rating | Non-Indicating | @Each by Eaton
The Class CC Time Delay Rejection Fuse is designed for reliable circuit protection, featuring a 15A amperage rating and a robust 200kA interrupting capacity at 600Vac. Ideal for line protection and industrial control applications, this dual-element current-limiting fuse prevents incorrect replacements with its rejection style design, ensuring safety and compliance in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Class CC Time Delay Rejection Fuse | 15A Amperage | 200kA Interrupting Rating | Non-Indicating | @Each by Eaton
Brand: Eaton
SKU: FNQ-R-15
Alternatively Known As: Class CC time delay fuse, FNQ-R fuse, Eaton FNQ-R-15 fuse, dual-element current limiting fuse
Technical Specifications
- Amperage Rating: 15 A
- Voltage Rating: 600 Vac, 300 Vdc
- Interrupting Rating: 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
- Response Time: 12 seconds at 200% overload
- Material: Melamine tube
- Connection Type: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Type: Current-limiting time-delay fuse
- Special Features: Rejection style
- Dimensions (H x L x W): 10mm x 38mm x 10mm
- Weight: 0.1 kg
Key Features
- Class CC time-delay dual-element current limiting fuse
- Rejection style fuse to prevent incorrect fuse replacement
- Interrupting rating of 200kA at 600Vac and 20kA at 300Vdc
- Non-indicating fuse
- Ferrule end x ferrule end connection
- Response time: 12 seconds at 200% overload
- Melamine tube construction for durability
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Line protection
- Small control transformers
- Industrial control
- Branch circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Not applicable
Available Now
The Eaton Bussmann Series Class CC Time Delay Rejection Fuse FNQ-R-15 is available for immediate purchase, ideal for industrial and control circuit protection applications.
