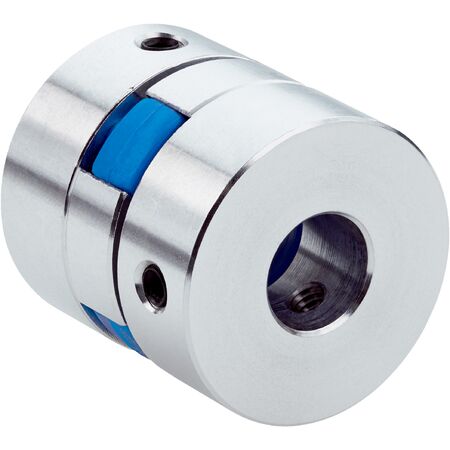

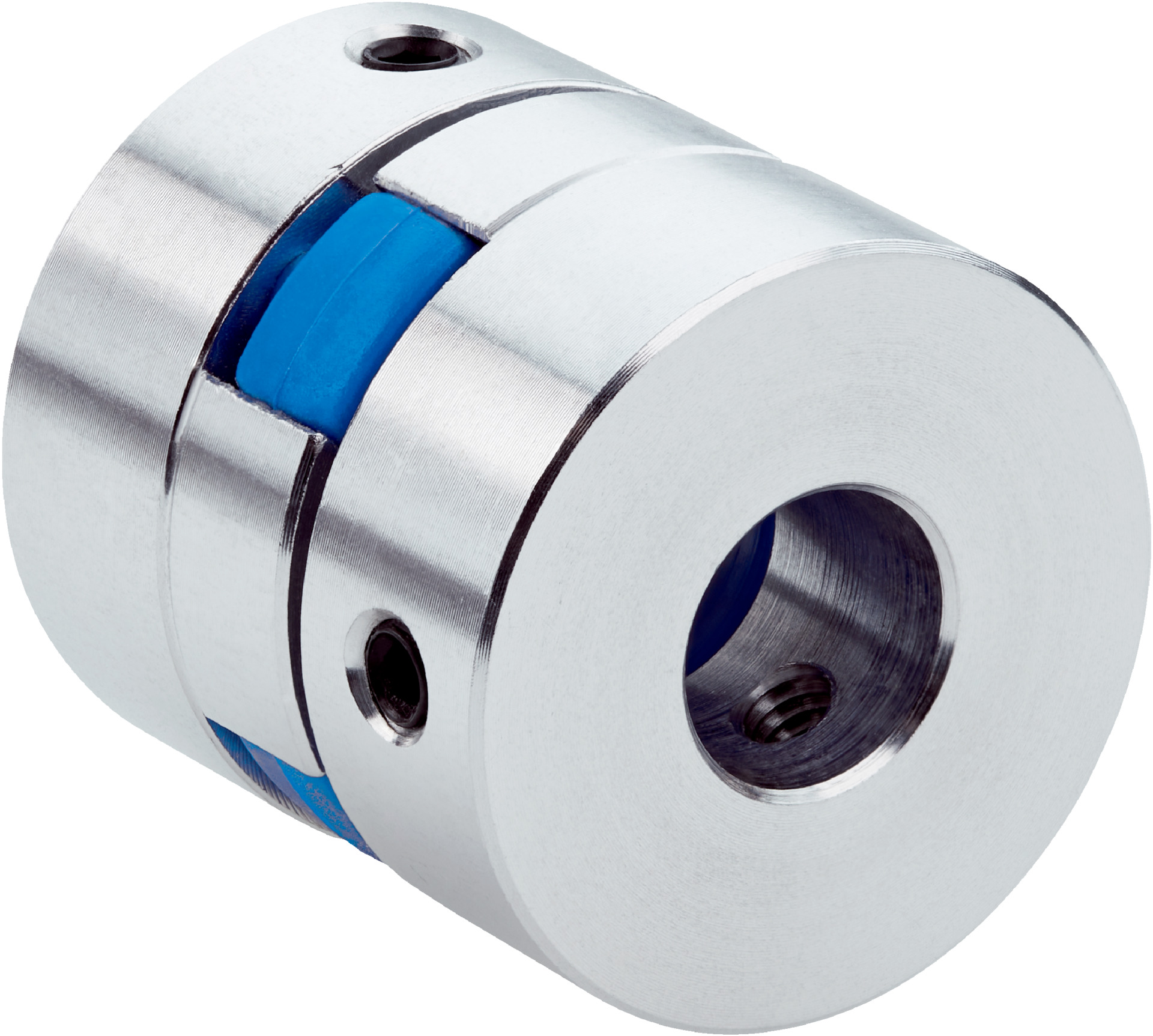

Claw Shaft Coupling KUP-0610-J | 6mm & 10mm Compatibility | 800 Ncm Torque | by SICK
The KUP-0610-J claw shaft coupling is designed for reliable shaft connections in industrial machinery, featuring compatibility with 6 mm and 10 mm shafts. With a maximum torque of 800 Ncm and a damping element made of 80 shore blue polyurethane, it ensures efficient power transmission and reduced vibration. Ideal for automation equipment, this coupling operates effectively within a temperature range of -30 °C to +80 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 10 mm
- Damping element hardness: 80 shore blue polyurethane
- Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
- Maximum speed: 19,000 rpm
- Maximum angle of twist: 10°
- Operating temperature range: -30 °C to +80 °C
- Maximum torque: 800 Ncm
- Tightening torque of screws: 150 Ncm (ISO 4029)
- Material: aluminum flange with polyurethane damping element
- Dimensions (H x L x W): 30mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Claw coupling design for reliable shaft connection
- Shaft diameter compatibility: 6 mm and 10 mm
- Damping element made of 80 shore blue polyurethane
- Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
- Maximum speed up to 19,000 rpm
- Maximum angle of twist: 10°
- Operating temperature range: -30 °C to +80 °C
- Maximum torque capacity: 800 Ncm
- Tightening torque of screws per ISO 4029: 150 Ncm
- Material: aluminum flange with polyurethane damping element
Professional Installation Requirements
- Installation by qualified mechanical or maintenance personnel is recommended to ensure proper alignment and torque settings.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission
- Automation equipment requiring precise shaft coupling
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Polyurethane damping element enhances energy efficiency by reducing vibration
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-0610-J claw shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
