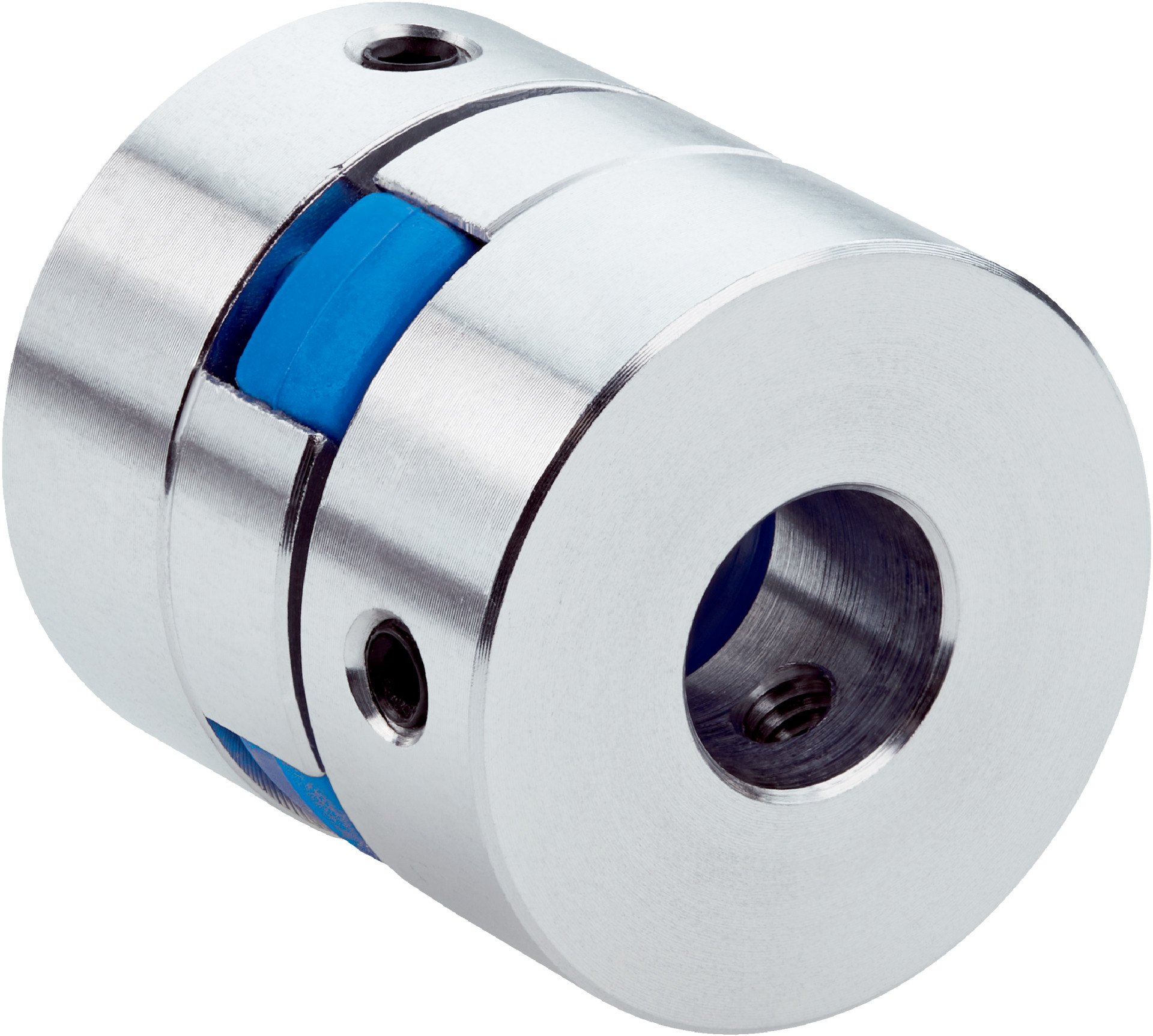

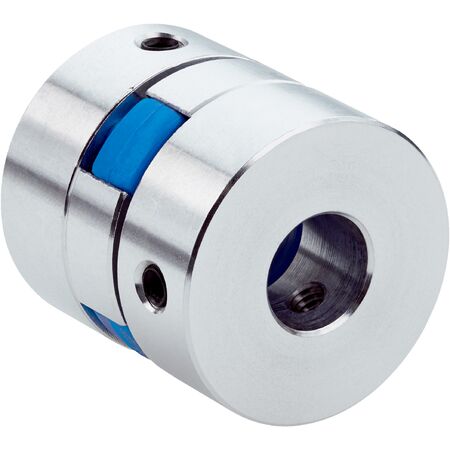

Claw Shaft Coupling KUP-1012-J | 80 Shore Polyurethane Damping | Max Torque 800 Ncm | by SICK
The KUP-1012-J Claw Shaft Coupling is designed for secure shaft connections in industrial machinery, featuring a damping element made of 80 shore blue polyurethane. With a maximum speed of 19,000 rpm and a torque capacity of 800 Ncm, it’s perfect for mechanical power transmission systems and rotating equipment that require vibration damping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 10 mm / 12 mm
- Damping element hardness: 80 shore blue polyurethane
- Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
- Maximum speed: 19,000 rpm
- Maximum torque: 800 Ncm
- Operating temperature range: -30 °C to +80 °C
- Material: Aluminum flange
- Tightening torque of screws: ISO 4029 150 Ncm
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Claw coupling design for secure shaft connection
- Shaft diameter compatibility: 10 mm / 12 mm
- Damping element made of 80 shore blue polyurethane
- Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
- Maximum speed up to 19,000 rpm
- Maximum torque capacity of 800 Ncm
- Operating temperature range from -30 °C to +80 °C
- Aluminum flange material for durability
- Tightening torque of screws per ISO 4029: 150 Ncm
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper shaft alignment and torque settings.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission systems
- Rotating equipment requiring vibration damping
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Polyurethane damping element enhances equipment longevity by reducing vibration
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-1012-J claw shaft coupling is available for immediate purchase, ideal for industrial shaft adaptation and mechanical power transmission applications.
