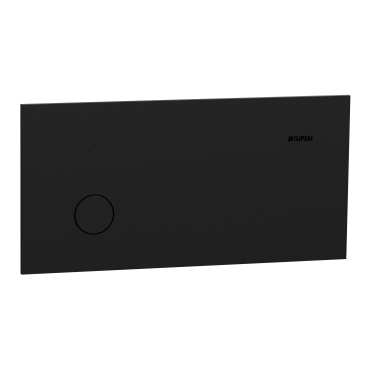

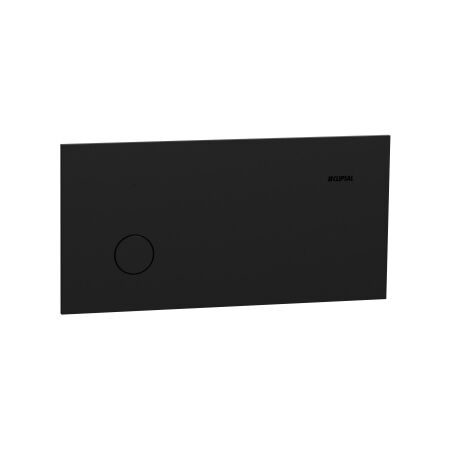

Clipsal Solis Flush Switch | 1 Gang | 10AX 1-Way/2-Way | Horizontal Mount | Zen Black | @Each of 1 | by Clipsal
The Clipsal Solis Flush Switch is designed for seamless lighting control, featuring a 1 gang, 10AX 1-way/2-way function and a sleek horizontal mount. Ideal for both residential and commercial applications, this switch supports LED lamps up to 250W and is built with screw terminal connections for easy installation. With its stylish Zen Black finish, it not only enhances your decor but also complies with AS/NZS 60669 standards for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 230/240 V AC
- Rated current: 20 A/16 AX
- Control type: Push-button
- Number of gangs: 1
- Switch function: 1-pole 1/2-way
- Load type: LED lamp 0-250 W
- Connection terminals: Screw terminals
- Clamping connection capacity: 4 x 1.5 mm² to 3 x 2.5 mm²
- Ambient operating temperature: 0 to 45 °C
- Relative humidity: 10 to 95%
- Fixing center: 84 mm
- Cut-out dimensions: 93 x 50 mm
- Material: Plastic
- Surface finish: Matt painted
- Installation direction: Horizontal
- Dimensions (H x L x W): 148mm x 45.5mm x 74mm
- Weight: 0.1 kg
Key Features
- Flush mount design with horizontal installation
- 1 gang switch with 1-pole 1/2-way function
- Rated operational voltage 230/240 V AC
- Rated current 20 A/16 AX suitable for LED lamps up to 250 W
- Screw terminal connections with clamping capacity for 1.5 to 2.5 mm² wires
- Matt black finish with painted surface for aesthetic appeal
- Complies with AS/NZS 60669 standards
- Mercury free and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Lighting control in homes
- Commercial: Office and retail lighting control
- General: Suitable for LED and incandescent lighting loads
Standards & Compliance
- AS/NZS 60669 – Switches for household and similar fixed electrical installations
Environmental Benefits
- Mercury free design reduces hazardous material use
- RoHS compliant ensuring reduced environmental impact
- Packaging made with recycled cardboard
Warranty Information
Standard Clipsal warranty applies; typically 2 years against manufacturing defects.
Available Now
The Clipsal Solis Flush Switch Horizontal Mount 1 Gang 10AX in Zen Black is available for immediate purchase, ideal for residential and commercial lighting control applications.
