Clipsal Solis Flush Switch | 3 Gang | 10AX 1-Way/2-Way | Horizontal Mount | @Each of 1 | by Clipsal

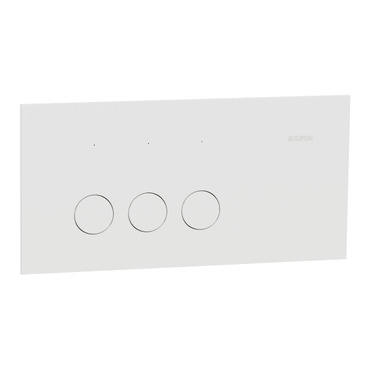

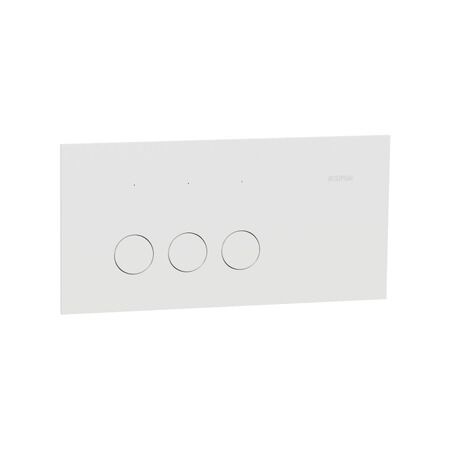

The Clipsal Solis Flush Switch is a versatile 3 gang switch designed for horizontal mounting, perfect for residential and commercial lighting control. With a rated operational voltage of 230V-240V and a 10AX 1-way/2-way function, it ensures reliable performance for LEDi lamps up to 250W. Its sleek matt white finish and compliance with AS/NZS 60669 standards make it an ideal choice for modern installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 230/240 V AC
- Rated current: 20 A/16 AX
- Control type: Push-button
- Number of gangs: 3
- Switch function: 1-pole 1/2-way
- Load type: LEDi lamp 0-250 W
- Clamping connection capacity: 4 x 1.5 mm² to 3 x 2.5 mm²
- Device mounting: Flush
- Installation direction: Horizontal
- Ambient air temperature for operation: 0 to 45 °C
- Relative humidity: 10 to 95%
- Material: Plastic
- Surface finish: Matt painted
- Fixing mode: Screw with 84 mm fixing center
- Dimensions (H x L x W): 74mm x 45.5mm x 148mm
- Weight: 0.124 kg
Key Features
- Flush mount design with horizontal installation
- 3 gang switch with 1-pole 1/2-way function
- Rated operational voltage 230/240 V AC, 50 Hz
- Rated current 20 A/16 AX suitable for LEDi lamps up to 250 W
- Matt white painted plastic finish
- Screw terminal connections with clamping capacity for 1.5 to 2.5 mm² wires
- Complies with AS/NZS 60669 standards
- RCM certified
- Suitable for ambient temperatures 0 to 45 °C and relative humidity 10 to 95%
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential lighting control
- Commercial lighting control
- Indoor horizontal flush mounting switch applications
Standards & Compliance
- AS/NZS 60669 – Switches for household and similar fixed electrical installations
Environmental Benefits
- Mercury free and RoHS compliant
- Packaging made with recycled cardboard
- Low carbon footprint with 1.91 kg CO2 equivalent per product lifecycle
Warranty Information
Standard Clipsal warranty applies; typically 2 years against manufacturing defects.
Available Now
The Clipsal Solis Flush Switch Horizontal Mount 3 Gang 230V-240V 10AX 1-Way/2-Way in Zen White is available for immediate purchase, ideal for residential and commercial lighting control applications.
