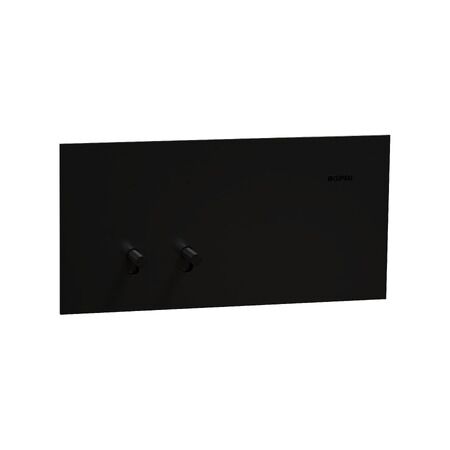

Clipsal Solis T Series Flush Switch | 2 Gang Toggle | 10AX 1-Way/2-Way | 230V-240V | Ebony Aluminium | @Each of 1 | by Clipsal
The Clipsal Solis T Series Flush Switch is a versatile 2 gang toggle switch designed for both 1-way and 2-way control, operating at 230V-240V. Ideal for residential and commercial lighting applications, it features a polished white ceramic surface and is compliant with AS/NZS 60669 standards. With a rated current of 20A, it's perfect for controlling LED lamps up to 250W, ensuring safety and efficiency in your lighting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 230-240 V AC
- Rated current: 20 A / 16 AX
- Load type: LED lamps 0-250 W
- Control type: Toggle switch, 1-pole 1/2-way
- Number of gangs: 2
- Device mounting: Flush
- Connections: Screw terminals, clamping capacity 4 x 1.5 to 3 x 2.5 mm²
- Ambient operating temperature: 0 to 45 °C
- Relative humidity: 10 to 95%
- Fixing center: 84 mm
- Cut-out dimensions: 93 x 50 mm
- Surface finish: Polished white ceramic
- Compliance: RCM certified, AS/NZS 60669
- Dimensions (H x L x W): 74mm x 56mm x 148mm
- Weight: 0.14 kg
Key Features
- Flush mount design with horizontal orientation
- 2 gang toggle switch for 1-way or 2-way control
- Rated operational voltage of 230-240V AC
- Rated current of 20A/16AX suitable for LED lamps up to 250W
- Screw terminal connections with clamping capacity for 1.5 to 2.5 mm² wires
- Polished white ceramic surface with polished finish
- Ambient operating temperature range 0 to 45°C
- Compliant with AS/NZS 60669 standards
- RCM certified and mercury free
- Cut-out dimensions 93 x 50 mm for installation
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Lighting control in homes
- Commercial: Office and retail lighting control
- Industrial: General lighting control applications
Standards & Compliance
- AS/NZS 60669 – Switches for household and similar fixed electrical installations
Environmental Benefits
- Mercury free design reduces hazardous material use
- Compliant with RoHS directives limiting harmful substances
- Packaging made with recycled cardboard
Warranty Information
Standard Clipsal warranty applies; typically 2 years against manufacturing defects.
Available Now
The Clipsal Solis T Series Flush Switch 2 Gang Horizontal Mount 10AX in Ebony Aluminium is available for immediate purchase, ideal for residential and commercial lighting control applications.
