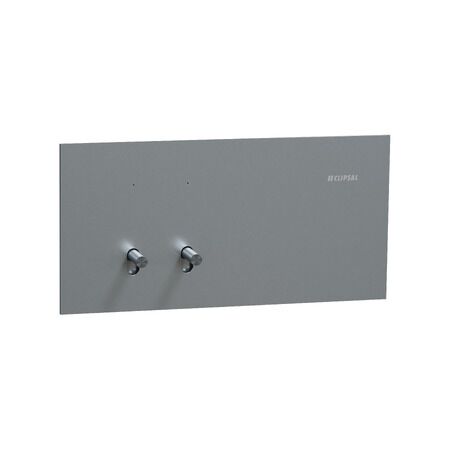

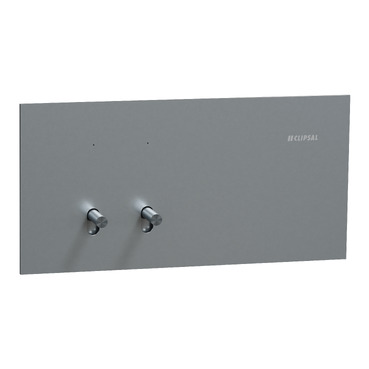

Clipsal Solis T Series Flush Switch | 2 Gang Toggle | 230V-240V | Polished Platinum Finish | @Each of 1 | by Clipsal
The Clipsal Solis T Series Flush Switch is a versatile 2 gang toggle switch designed for both 1-way and 2-way control, operating at 230V-240V. With a polished platinum finish and a robust ceramic construction, it’s perfect for residential and commercial lighting applications. This switch features screw terminal connections and is compliant with AS/NZS 60669 standards, ensuring safety and reliability in any setting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product type: Switch
- Number of gangs: 2
- Control type: Toggle switch
- Rated operational voltage: 230/240 V AC
- Rated current: 20 A/16 AX
- Load type: LEDi lamp 0-250 W
- Connection type: Screw terminals
- Clamping connection capacity: 4 x 1.5 mm² to 3 x 2.5 mm²
- Device mounting: Flush
- Installation direction: Horizontal
- Switch function: 1-pole 1/2-way
- Ambient operating temperature: 0 to 45 °C
- Relative humidity: 10 to 95%
- Material: Ceramic
- Surface finish: Polished
- Colour tint: White ceramic with platinum color
- Dimensions (H x L x W): 74mm x 56mm x 148mm
- Weight: 0.136 kg
Key Features
- Flush mount design with horizontal installation
- 2 gang toggle switch for 1-way or 2-way control
- Rated operational voltage of 230/240 V AC
- Rated current of 20 A/16 AX suitable for LEDi lamps up to 250 W
- Polished white ceramic finish with platinum color tint
- Screw terminal connections with clamping capacity for 1.5 to 2.5 mm² wires
- Complies with AS/NZS 60669 standards
- RCM certified and mercury free
- Ambient operating temperature range 0 to 45 °C
- Relative humidity tolerance 10 to 95%
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Lighting control in homes
- Commercial: Office and retail lighting control
- Industrial: General lighting control applications
Standards & Compliance
- AS/NZS 60669 – Switches for household and similar fixed electrical installations
Environmental Benefits
- Mercury free design reduces hazardous material use
- Compliant with RoHS and China RoHS regulations
- Packaging made with recycled cardboard
Warranty Information
Standard Clipsal warranty applies; typically 2 years against manufacturing defects.
Available Now
The Clipsal Solis T Series Flush Switch 2 Gang Horizontal Mount in Platinum is available for immediate purchase, ideal for residential and commercial lighting control applications.
