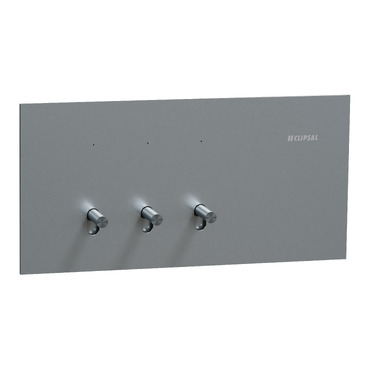

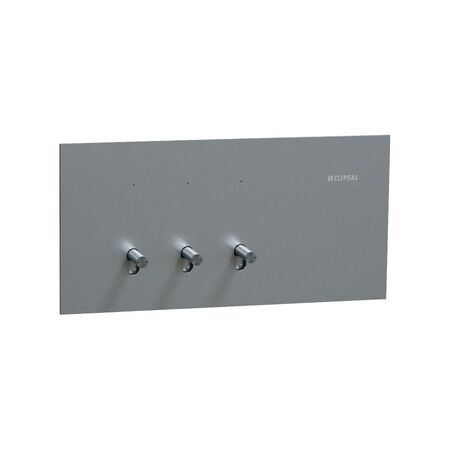

Clipsal Solis T Series Flush Switch | 3 Gang Toggle | 230V-240V | Polished Ceramic Finish | @Each of 1 | by Clipsal
The Clipsal Solis T Series Flush Switch features a 3 gang toggle switch configuration, designed for horizontal mounting and rated for 230V-240V AC. Ideal for both residential and commercial indoor applications, this polished ceramic switch ensures reliable performance with a rated current of 20A/16AX, making it perfect for LED lamps up to 250W. Its sleek platinum finish adds a modern touch to any space.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 230-240 V AC
- Rated current: 20 A / 16 AX
- Control type: Toggle switch
- Number of gangs: 3
- Device mounting: Flush
- Connections: Screw terminals with clamping capacity 4 x 1.5 mm² to 3 x 2.5 mm²
- Ambient operating temperature: 0 to 45 °C
- Relative humidity: 10 to 95%
- Switch function: 1-pole 1/2-way
- Material: Ceramic
- Surface finish: Polished
- Installation direction: Horizontal
- Cut-out dimensions: 93 x 50 mm
- Compliance: AS/NZS 60669
- Dimensions (H x L x W): 74mm x 56mm x 148mm
- Weight: 0.166 kg
Key Features
- Flush mount design with horizontal orientation
- 3 gang toggle switch configuration
- Rated operational voltage of 230-240V AC
- Rated current of 20A/16AX suitable for LEDi lamps up to 250W
- Polished white ceramic finish with platinum color tint
- Screw terminal connections with clamping capacity for 1.5 to 2.5 mm² wires
- Complies with AS/NZS 60669 standards
- Suitable for ambient temperatures from 0 to 45°C and relative humidity 10-95%
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Homes and apartments
- Commercial: Offices, retail spaces, hospitality venues
- General: Indoor electrical switching applications
Standards & Compliance
- AS/NZS 60669 – Switches for household and similar fixed electrical installations
Environmental Benefits
- Mercury free and compliant with RoHS exemptions
- Packaging made with recycled cardboard
Warranty Information
Standard Clipsal warranty applies; typically 2 years against manufacturing defects.
Available Now
The Clipsal Solis T Series Flush Switch 3 Gang Horizontal Mount in Platinum is available for immediate purchase, ideal for residential and commercial indoor electrical switching applications.
