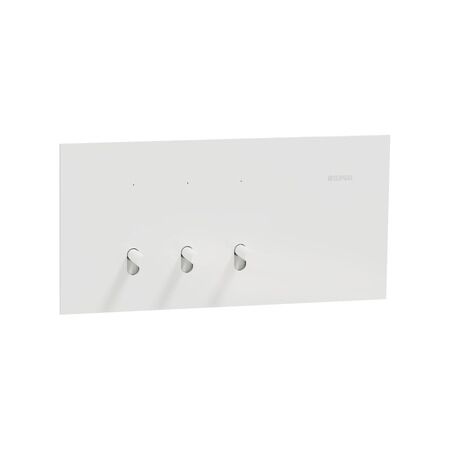

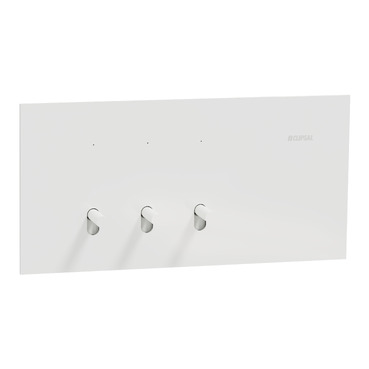

Clipsal Solis T Series Flush Switch | 3 Gang Toggle | 230V-240V | Polished White Ceramic | @Each of 1 | by Clipsal
The Clipsal Solis T Series Flush Switch features a 3 gang toggle configuration and operates at 230V-240V, making it perfect for controlling LED and incandescent lighting in both residential and commercial settings. With a polished white ceramic finish, this switch not only offers durability but also adds a touch of elegance to your space. Ideal for licensed electricians to install, it ensures compliance with AS/NZS 60669 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 230/240 V AC
- Rated current: 20 A/16 AX
- Load type: LED lamp 0-250 W
- Control type: Toggle switch
- Number of gangs: 3
- Device mounting: Flush
- Installation direction: Horizontal
- Connections: Screw terminals
- Clamping connection capacity: 4 x 1.5 mm² to 3 x 2.5 mm²
- Wire stripping length: 10 mm
- Fixing mode: Screw
- Fixing center: 84 mm
- Ambient operating temperature: 0 to 45 °C
- Relative humidity: 10 to 95%
- Material: Ceramic
- Surface finish: Polished white ceramic
- Dimensions (H x L x W): 74mm x 56mm x 148mm
- Weight: 0.166 kg
Key Features
- Flush mount design with horizontal installation
- 3 gang toggle switch configuration
- Rated operational voltage of 230/240 V AC
- Rated current 20 A/16 AX suitable for LED lamps up to 250 W
- Screw terminal connections for secure wiring
- Polished white ceramic finish for durability and aesthetic appeal
- Complies with AS/NZS 60669 standards
- Mercury free and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Lighting control in homes
- Commercial: Office and retail lighting control
- General: Suitable for LED and incandescent lighting loads
Standards & Compliance
- AS/NZS 60669 – Switches for household and similar fixed electrical installations
Environmental Benefits
- Mercury free design reduces hazardous material use
- RoHS compliant ensuring reduced environmental impact
- Packaging made with recycled cardboard
Warranty Information
Standard Clipsal warranty applies; typically 2 years against manufacturing defects.
Available Now
The Clipsal Solis T Series Flush Switch 3 Gang Horizontal Mount in White Ceramic is available for immediate purchase, ideal for residential and commercial lighting control applications.
