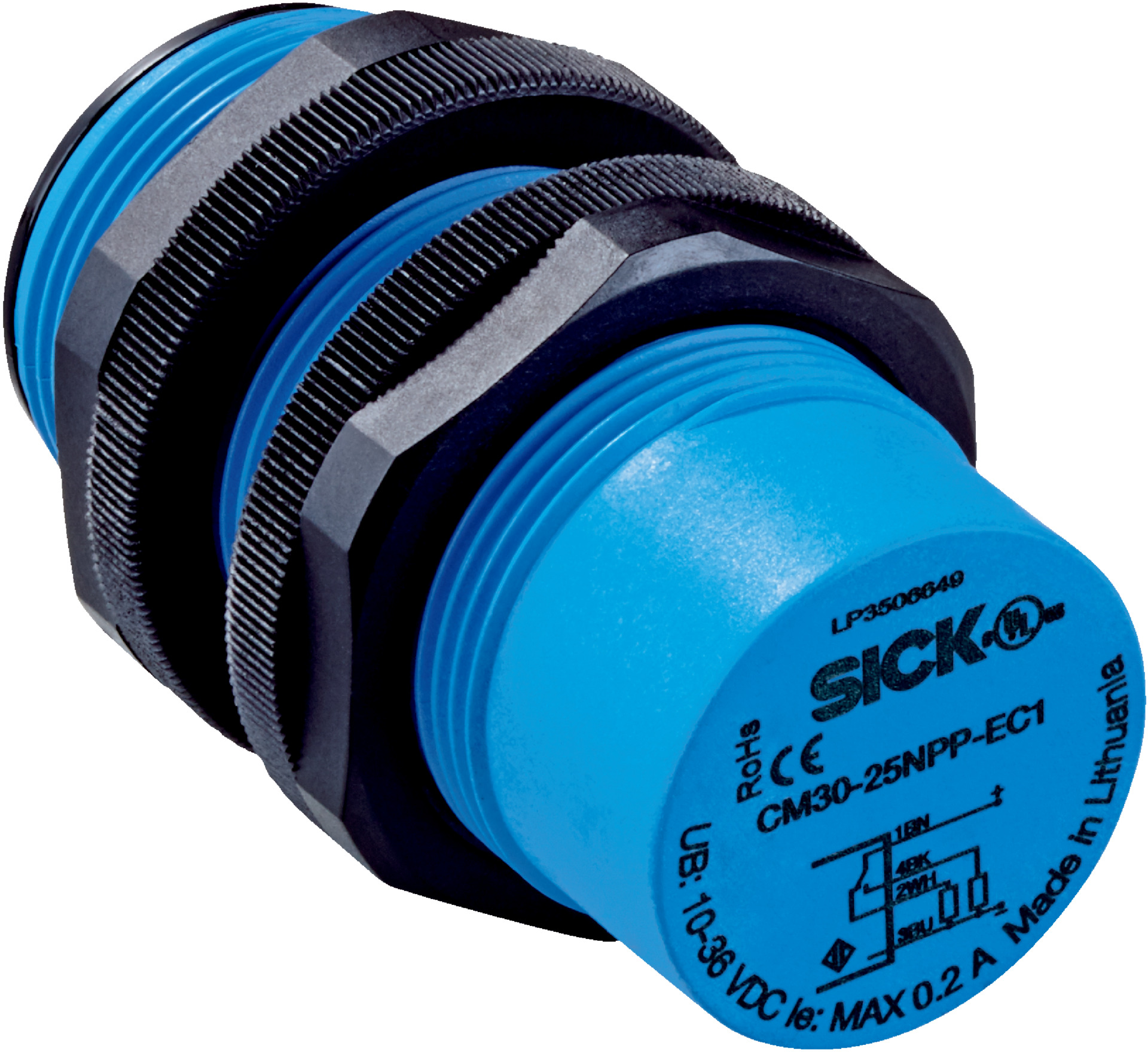

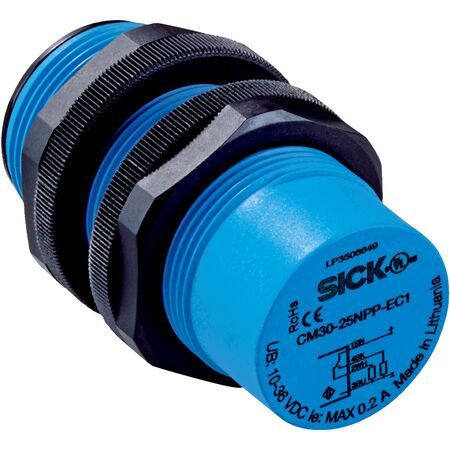

CM30-25NPP-EC1 Proximity Sensor | Non-Flush M30 Thread | IP67/IP68/IP69K Rated | by SICK
The CM30-25NPP-EC1 proximity sensor is designed for industrial automation, featuring a sensing range of up to 25 mm and a robust IP67/IP68/IP69K rating for harsh environments. With a PNP switching output and a wide operating voltage range from 10 V DC to 36 V DC, this sensor is perfect for object detection and safety monitoring in manufacturing and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric thread M30 x 1.5
- Sensing range Sn: 0 mm to 25 mm
- Safe sensing range Sa: 19.13 mm
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Output function: Complementary, wire configurable PNP
- Electrical wiring: DC 4-wire
- Adjustment: Sensitivity potentiometer with 11 turns
- Enclosure rating: IP67, IP68, IP69K
- Supply voltage: 10 V DC to 36 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V DC
- Current consumption: 12 mA
- Time delay before availability: ≤ 200 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: According to EN 60068
- Ambient operating temperature: -30°C to +85°C
- Housing material: Plastic, PBT
- Housing length: 74 mm
- Thread length: 45.5 mm
- Tightening torque max: ≤ 7.5 Nm
- Dimensions (H x L x W): 74mm x 74mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-flush installation type with M30 x 1.5 metric thread housing
- Sensing range up to 25 mm with safe sensing range of 19.13 mm
- PNP switching output with complementary wire configurable function
- High protection rating IP67, IP68, and IP69K for harsh environments
- Operating voltage range from 10 V DC to 36 V DC
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant according to EN 60068
- Operating temperature range from -30°C to +85°C
- Includes mounting nuts and screwdriver for potentiometer adjustment
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67/IP68/IP69K rated housing reduces replacement frequency and electronic waste
- Low current consumption of 12 mA supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CM30-25NPP-EC1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
