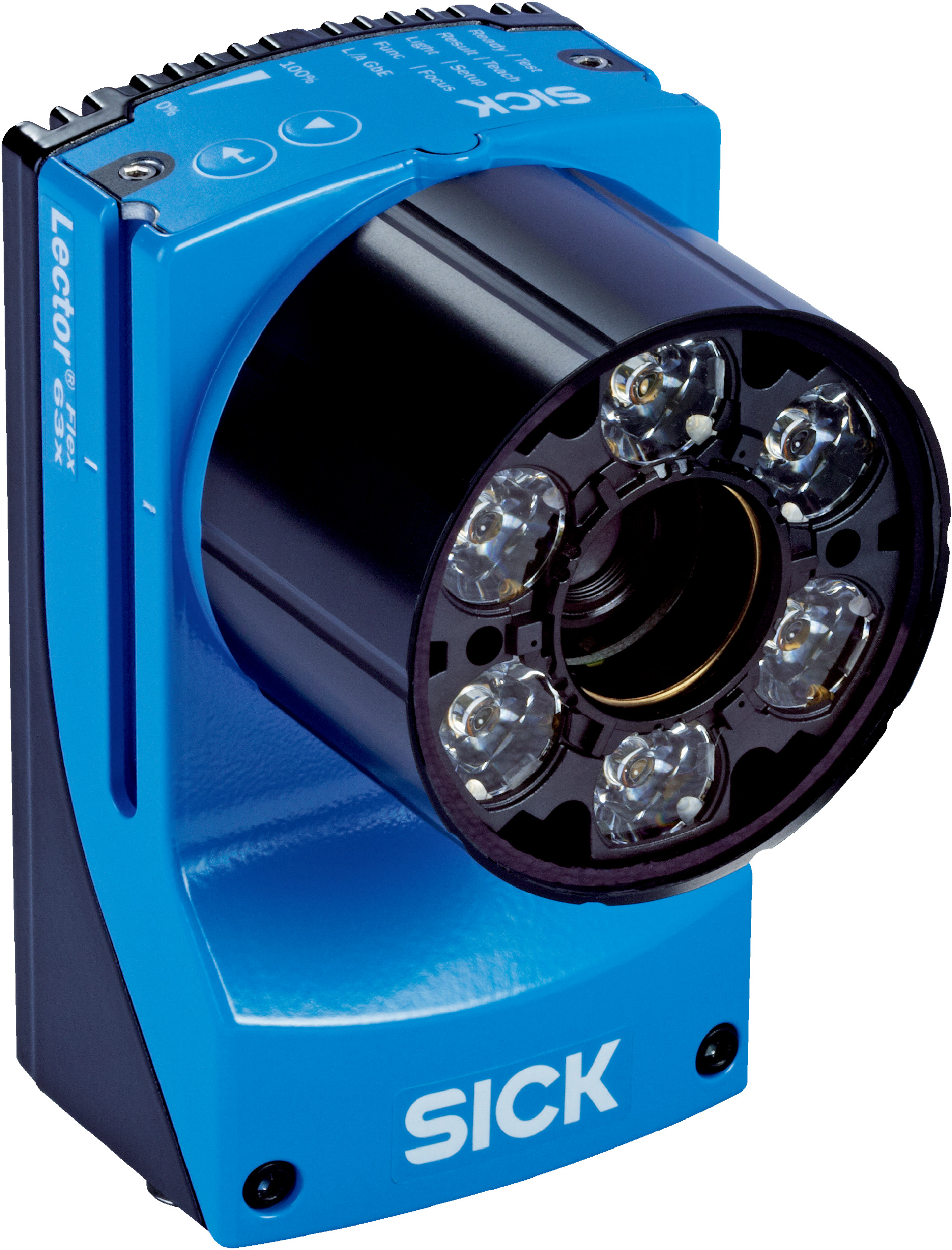

CMOS Barcode Reader | 1.3MP Resolution | Adjustable Focus & IP67 Rated | by SICK

BRAND: SICK
SKU: 1080075
$10,806.10 List price: $13,582.20
+ −
30 Days Return Delivery Options
The CMOS Barcode Reader is designed for industrial automation, featuring a 1.3MP resolution and adjustable manual optical focus. With integrated white LED illumination and robust IP67-rated housing, it excels in logistics, quality control, and material handling applications, ensuring reliable performance in demanding environments.
Technical Specifications
  • Sensor: CMOS monochrome, 1280 x 1024 pixels (1.3 MP)
  • Optical focus: Adjustable manual
  • Illumination: Integrated white LED
  • Feedback spot: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
  • Alignment aid: Red laser (630-680 nm), Class 1 laser
  • Lens: C-mount compact, 12 mm focal length, aperture 8
  • Scanning frequency: Up to 50 Hz at full resolution
  • Code resolution: ≥ 0.1 mm
  • Working range: 50 mm to 2200 mm
  • Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
  • Supply voltage: 12 V DC to 24 V DC ±20%
  • Power consumption: Typical 10 W ±20%
  • Output current: ≤ 100 mA
  • Housing material: Aluminum die cast
  • Window material: Plastic
  • Enclosure rating: IP67
  • Electrical safety: EN 60950-1
  • Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232/422), CAN, PROFIBUS DP (optional)
  • Digital inputs: 4
  • Digital outputs: 6
  • Operator interface: Web server
  • Configuration software: SOPAS ET
  • Memory card: Micro SD up to 32 GB (optional)
  • Operating temperature: 0°C to +50°C
  • Storage temperature: -20°C to +70°C
  • Relative humidity: 90%, non-condensing
  • Dimensions (H x L x W): 74mm x 108mm x 63mm
  • Weight: 0.5 kg
Key Features
  • Adjustable manual optical focus
  • CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
  • Integrated white LED illumination
  • Visible green and red LED feedback spots
  • Red laser alignment aid (Class 1 laser compliant with IEC 60825-1)
  • C-mount compact lens with 12 mm focal length and aperture 8
  • Scanning frequency up to 50 Hz at full resolution
  • Reads 1D, 2D, and stacked barcodes including GS1-128, QR code, Data Matrix ECC200, PDF417
  • Multiple communication interfaces: Ethernet, PROFINET, EtherNet/IP, Serial (RS-232/422), CAN, PROFIBUS DP
  • Robust aluminum die-cast housing with IP67 rating
  • Operating temperature range 0°C to +50°C
Professional Installation Requirements
  • Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
  • Industrial automation and manufacturing
  • Barcode and 2D code reading in logistics and warehousing
  • Quality control and inspection systems
  • Material handling and packaging lines
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Energy-efficient LED illumination reduces power consumption
  • Durable IP67 rated housing extends product lifespan and reduces waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

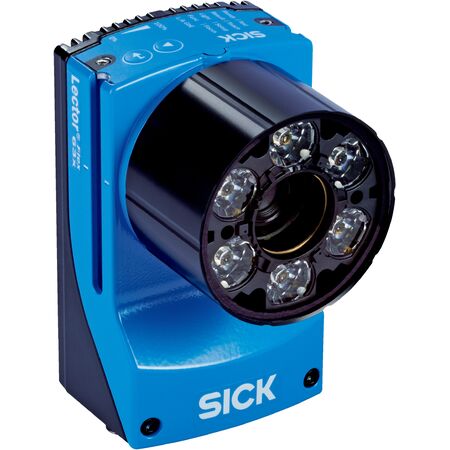

The SICK V2D631R-MKMDB4 sensor is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
