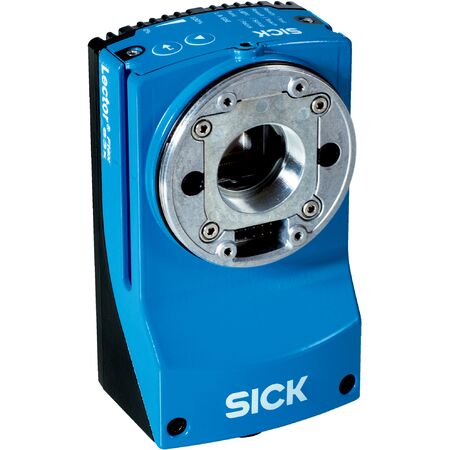

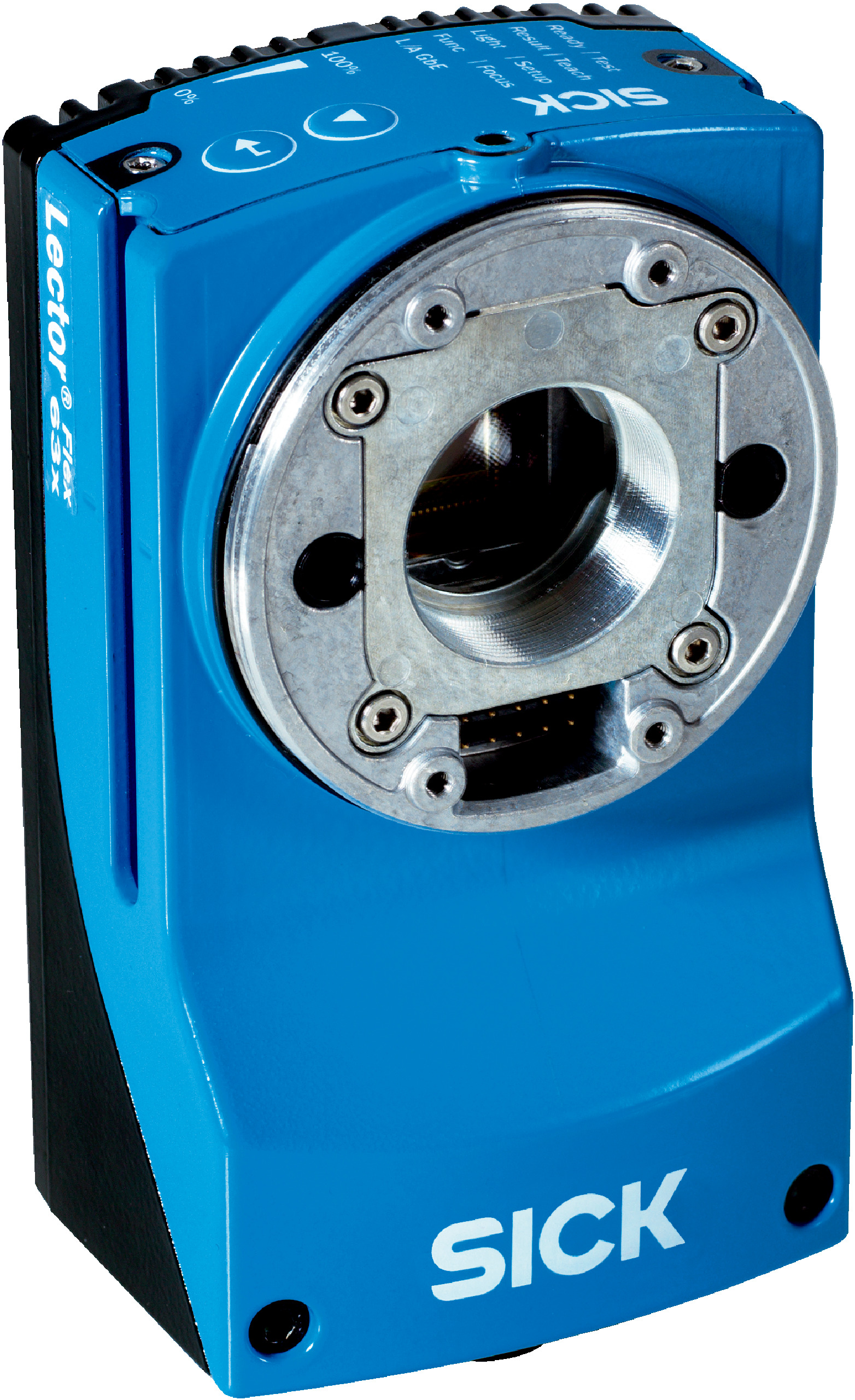

CMOS Barcode Reader | 1.9MP Resolution | Adjustable Focus & IP67 Rated | by SICK
The CMOS Barcode Reader is designed for industrial automation, featuring a 1.9MP resolution and adjustable manual optical focus. With a robust IP67-rated aluminum housing, it excels in logistics, quality control, and manufacturing monitoring, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor type: CMOS monochrome
- Resolution: 1600 x 1200 pixels (1.9 Megapixels)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Lens: C-mount (compact), optical format 1/1.8"
- Scanning frequency: Up to 50 Hz at full resolution
- Code resolution: Minimum 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: Up to 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4 configurable
- Digital outputs: 6 configurable
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB (optional)
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Certifications: EU, UK, ACMA, China-RoHS, cULus, KC Mark, BIS
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- High scanning frequency up to 50 Hz at full resolution
- Wide working range from 50 mm to 2200 mm
- Robust aluminum die cast housing with IP67 protection
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Supports reading of 1D, 2D, and stacked codes with ISO/IEC qualification
- Configurable digital inputs and outputs with various control options
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card support for image and data storage
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Quality control and inspection systems
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient operation with typical power consumption of 10 W
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D632R-MXCXB0 sensor is available for immediate purchase, ideal for industrial automation and barcode reading applications.
