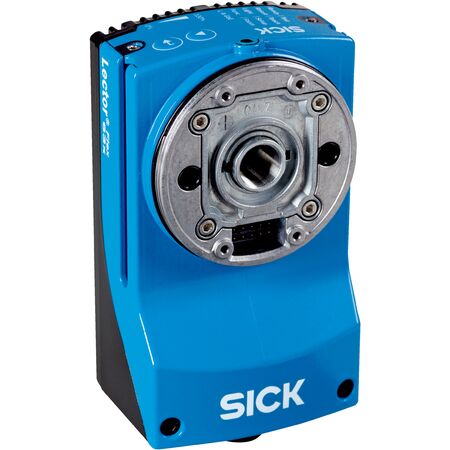

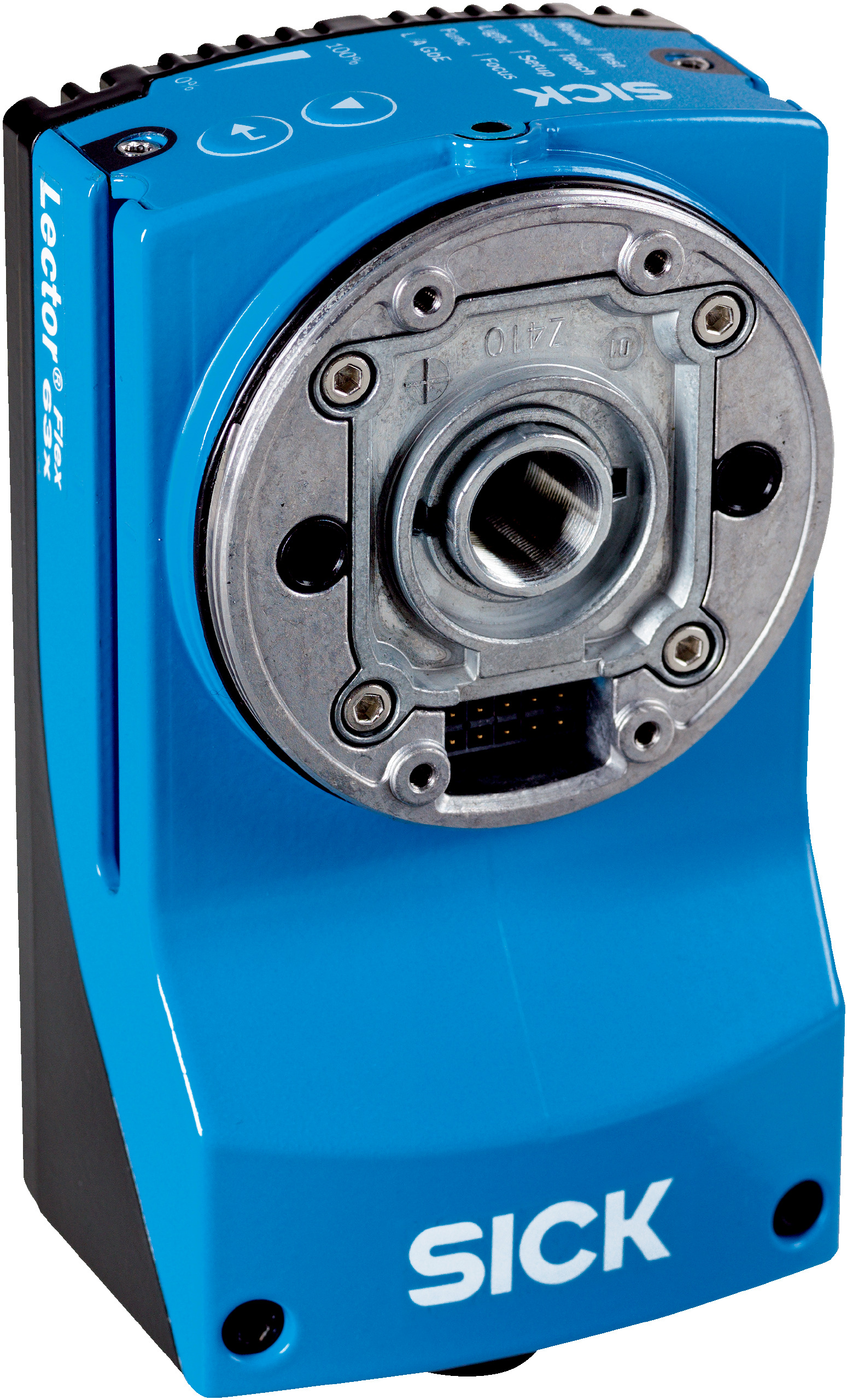

CMOS Barcode Reader SICK V2D632R-MXSXB0 | 1.9MP Resolution | IP67 Rated | Adjustable Focus | by SICK
The CMOS Barcode Reader SICK V2D632R-MXSXB0 features a 1.9MP resolution and adjustable manual optical focus, making it perfect for industrial automation and barcode reading applications. With a robust IP67 rated aluminum housing and a wide working range of 50 mm to 2200 mm, this scanner ensures reliable performance in demanding environments. Ideal for logistics, quality control, and inspection systems, it supports multiple code types and communication interfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 x 1200 px (1.9 Megapixel)
- Optical focus: Adjustable manual
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Scanning frequency: Up to 50 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet, PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4 configurable
- Digital outputs: 6 configurable
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 32 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90% non-condensing
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- High scanning frequency up to 50 Hz at full resolution
- Wide working range from 50 mm to 2200 mm
- Robust aluminum die-cast housing with IP67 protection
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, CAN, Serial, and PROFIBUS DP
- Supports reading of 1D, 2D, and stacked barcodes
- Configurable digital inputs and outputs with various control options
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card support for image and data storage
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and manufacturing
- Barcode and 2D code reading
- Logistics and warehouse management
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient operation with typical power consumption of 10 W
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D632R-MXSXB0 sensor is available for immediate purchase, ideal for industrial automation and barcode reading applications.
