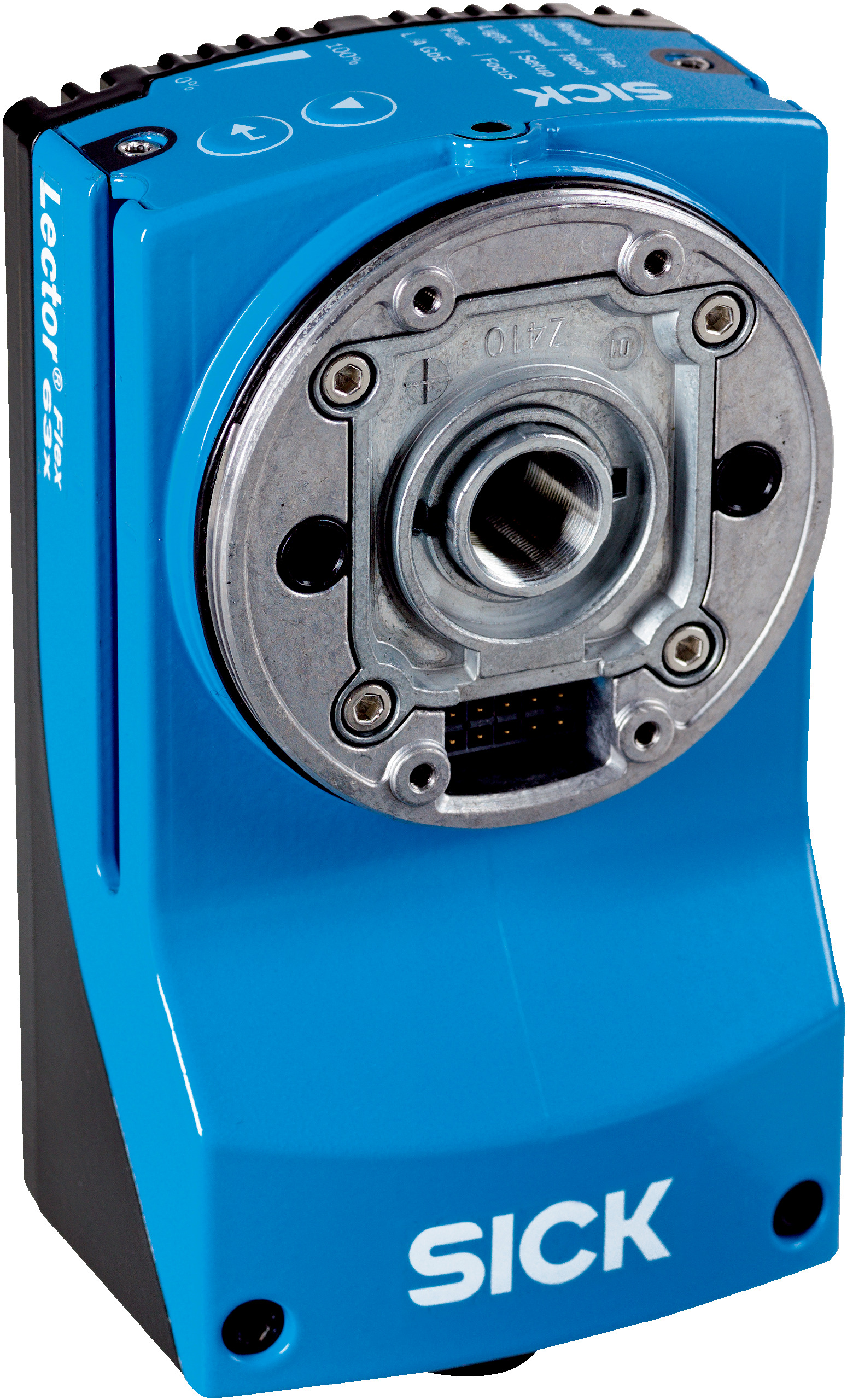

CMOS Barcode Scanner | 1.3MP Resolution | Adjustable Focus & IP67 Rated | by SICK
The CMOS Barcode Scanner is designed for industrial automation, featuring a 1.3MP resolution and adjustable manual optical focus. With robust IP67-rated aluminum housing, it excels in logistics, manufacturing, and packaging applications, ensuring reliable code reading in challenging environments. Its multiple interface options and high vibration resistance make it a versatile choice for quality control and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 px x 1024 px (1.3 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser 630 nm to 680 nm, Class 1 laser
- Lens: S-mount, optical format 1/1.8" (ordered separately)
- Scanning frequency: Up to 50 Hz at 1.3 Megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable codes: 1D, 2D, stacked, direct-marked codes including GS1-128, Data Matrix ECC200, QR code, PDF417
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4; Digital outputs: 6 configurable
- Indicators: 11 LEDs, beeper, 2 control buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: 90% non-condensing
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- Supports reading of 1D, 2D, stacked, and direct-marked codes
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- IP67 rated aluminum die-cast housing for robust industrial use
- Configurable digital inputs and outputs with multiple feedback indicators
- Supports image and data storage via microSD card and FTP
- Operating temperature range 0°C to +50°C with high vibration and shock resistance
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management for code scanning
- Manufacturing for quality control and traceability
- Packaging lines for code verification and tracking
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with typical power consumption of 10 W
- Supports digital data storage reducing paper and physical media usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

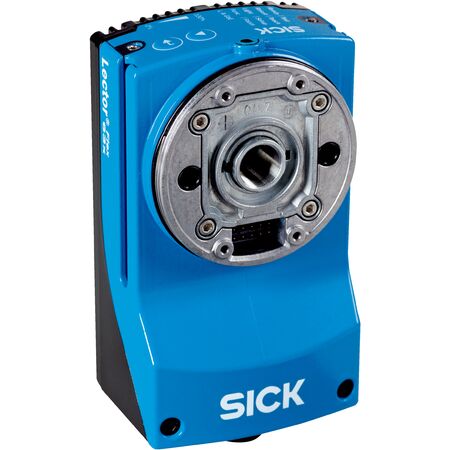

The SICK V2D631D-MXSXB0 sensor is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
