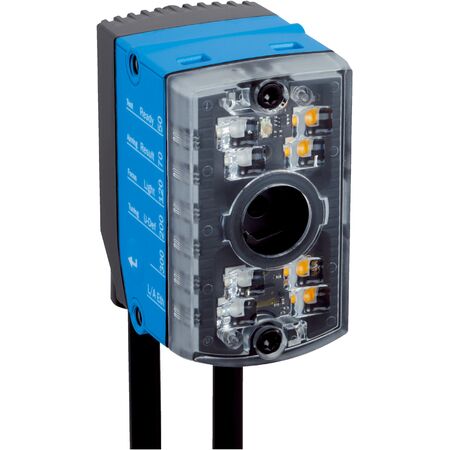

CMOS Barcode Scanner | 640 x 480 px Resolution | Adjustable Focus & IP54 Rated | by SICK
The CMOS Barcode Scanner is designed for industrial automation, featuring a 640 x 480 px resolution and adjustable manual focus for precise scanning. With integrated amber and blue LED illumination, it excels in logistics and manufacturing applications, ensuring reliable barcode and 2D code reading in various environments. Its IP54 rated housing protects against dust and water splashes, making it a durable choice for demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 640 px x 480 px (0.3 Mpixel)
- Optical focus: Adjustable manual focus, 6 mm focal length
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Laser class: 1 (IEC 60825-1 compliant)
- Scanning frequency: 40 Hz
- Code resolution: 0.1 mm
- Working range: 50 mm to 300 mm
- Connection types: M12 male connector (17-pin), M12 Ethernet socket (4-pin), circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast, light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP54
- Protection class: III
- Electrical safety: EN 62368-1
- Readable code types: 1D, 2D, stacked, direct-marked codes
- Supported bar code types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey, MSI/Plessey, Telepen, postal codes
- Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, PDF417, QR code, MaxiCode
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial RS-232, CAN, CANopen
- Digital inputs: 2
- Digital outputs: 3
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Adjustable manual optical focus with 6 mm focal length lens
- CMOS monochrome sensor with 640 x 480 px resolution
- Integrated amber and blue LED illumination
- Supports reading of 1D, 2D, stacked, and direct-marked codes
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial RS-232, CAN, and CANopen
- IP54 rated zinc diecast housing for protection against dust and water splashes
- Laser class 1 compliant with IEC and FDA standards
- Automated parameter switching and web server operator interface
- Supports up to 50 codes per reading interval and 500 characters for multiplexer function
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehousing for package tracking
- Manufacturing for quality control and product identification
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D610D-MMSBE4 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
