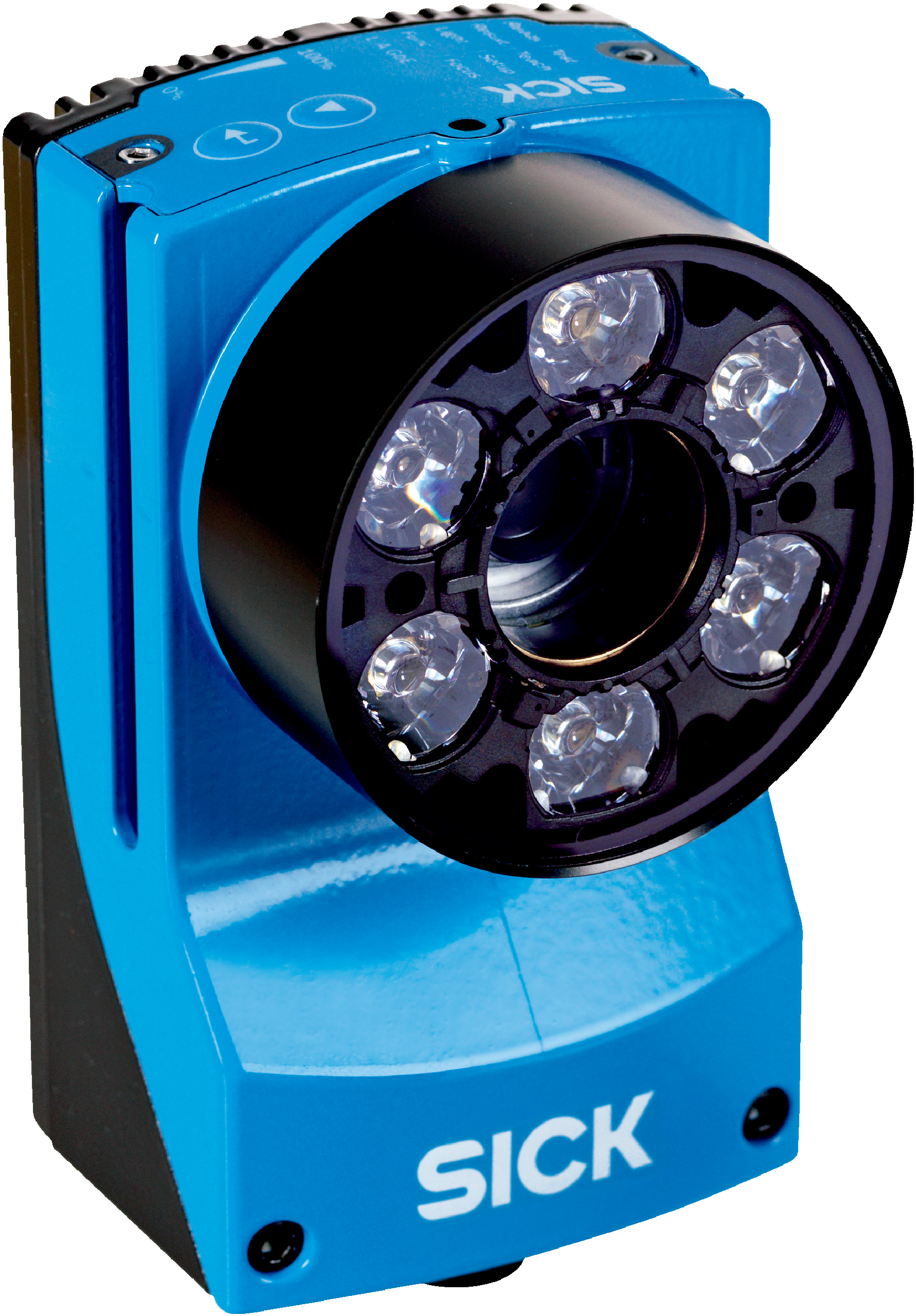

CMOS Barcode Scanner SICK V2D631D | 1.3 Megapixel | IP67 Rated | Adjustable Focus | by SICK
The CMOS Barcode Scanner SICK V2D631D is designed for industrial automation, featuring a 1.3 Megapixel resolution and adjustable manual optical focus. With integrated red LED illumination and robust IP67-rated housing, it excels in harsh environments, making it ideal for logistics, quality control, and automated production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 x 1024 pixels (1.3 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated red LED, visible
- Feedback spot: Green and red visible LEDs
- Laser alignment aid: Red laser, Class 1
- Lens: C-mount (compact), 1/1.8" optical format, 25 mm focal length, aperture 8
- Scanning frequency: Up to 50 Hz at 1.3 Megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typically 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked, direct-marked codes including GS1-128, UPC, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.45 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated red LED illumination with visible feedback spots in green and red
- Laser alignment aid with Class 1 laser safety
- Supports reading of 1D, 2D, stacked, and direct-marked codes
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Robust aluminum die-cast housing with IP67 rating for harsh environments
- Operating temperature range from 0°C to +50°C
- Configurable digital inputs and outputs with multiple feedback indicators
- Supports image and data storage via microSD card and FTP
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network protocols to ensure optimal performance and safety.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and inventory tracking
- Quality control and inspection systems
- Automated production lines requiring precise code reading
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

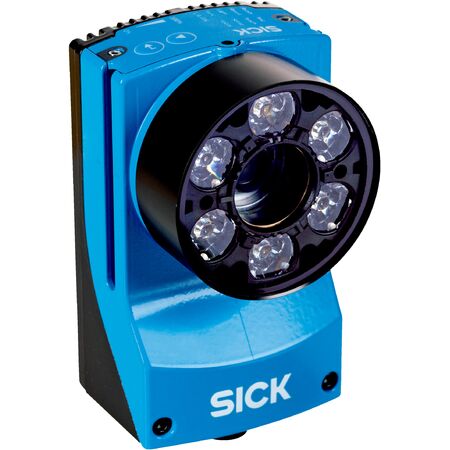

The SICK V2D631D-MRMFB3 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
