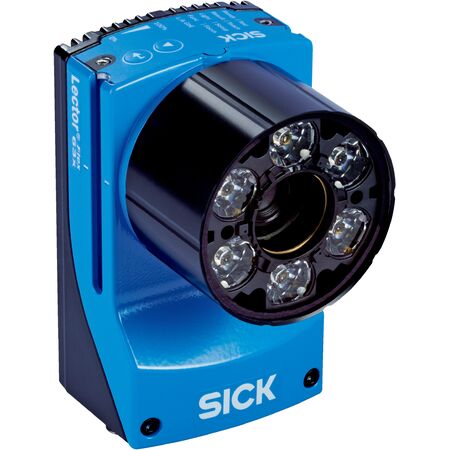

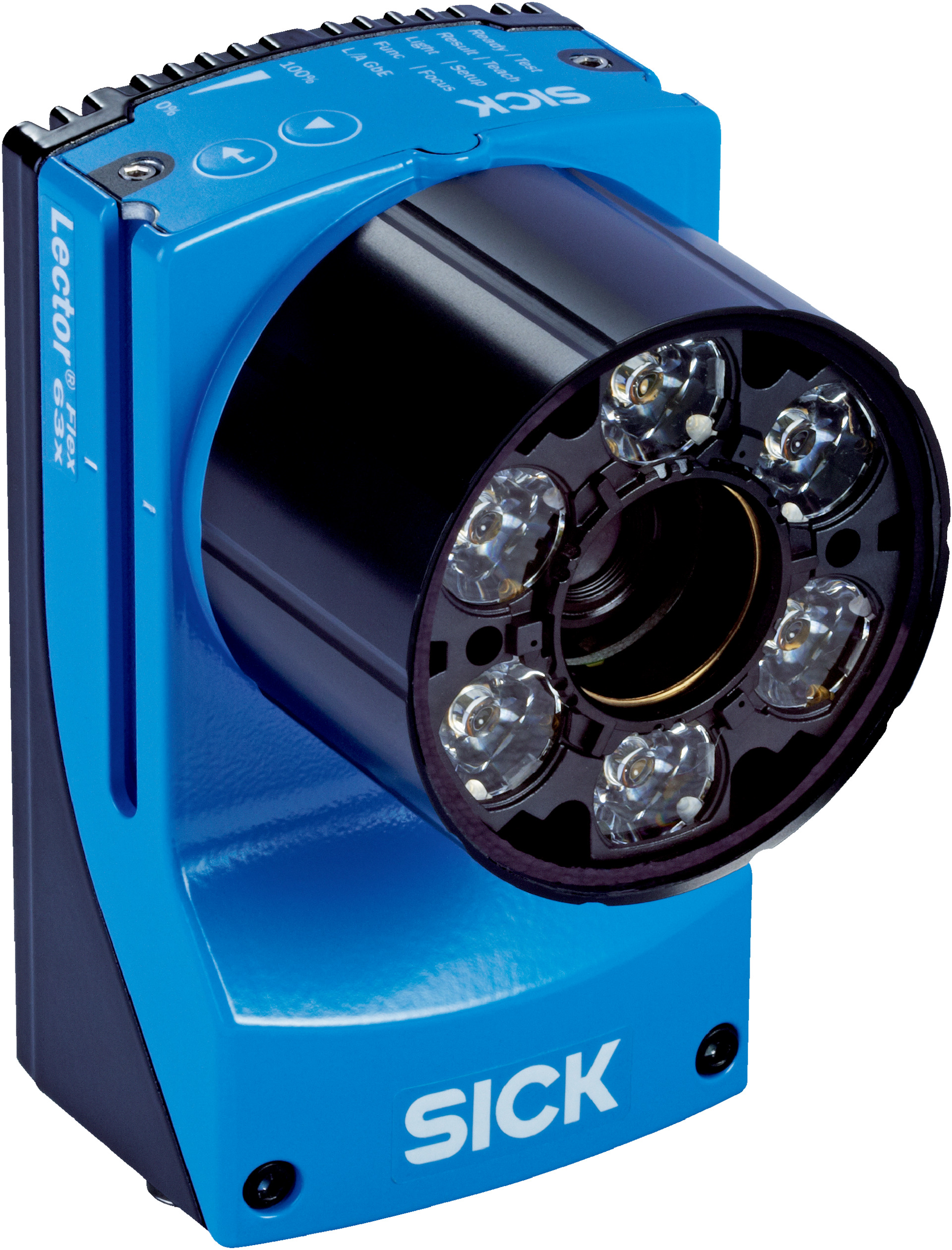

CMOS Barcode Scanner SICK V2D631R | 1.3 MP Resolution | IP67 Rated | by SICK
The CMOS Barcode Scanner SICK V2D631R is designed for industrial automation and logistics, featuring a 1.3 MP resolution and adjustable manual optical focus. With integrated white LED illumination and multiple interface options, it ensures reliable barcode reading in harsh environments, making it ideal for quality control and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 x 1024 px (1.3 MP)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spots: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Lens: C-mount (compact), 1/1.8" optical format, 16 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at 1.3 MP resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable codes: 1D, 2D, stacked codes including GS1-128, UPC, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90% non-condensing
- Dimensions (H x L x W): 96mm x 108mm x 63mm
- Weight: 0.59 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Class 1 laser compliant with IEC 60825-1)
- Supports 1D, 2D, and stacked barcode types including GS1, QR, Data Matrix, PDF417
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, PROFIBUS DP
- IP67 rated aluminum die cast housing for harsh environments
- Operating temperature range 0°C to +50°C
- Configurable digital inputs and outputs with multiple feedback indicators
- Web server operator interface and SOPAS ET configuration software
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Retail and pharmaceutical for product identification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D631R-MKMEB1 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
