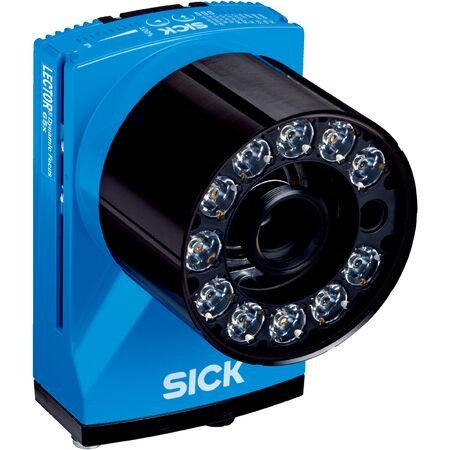

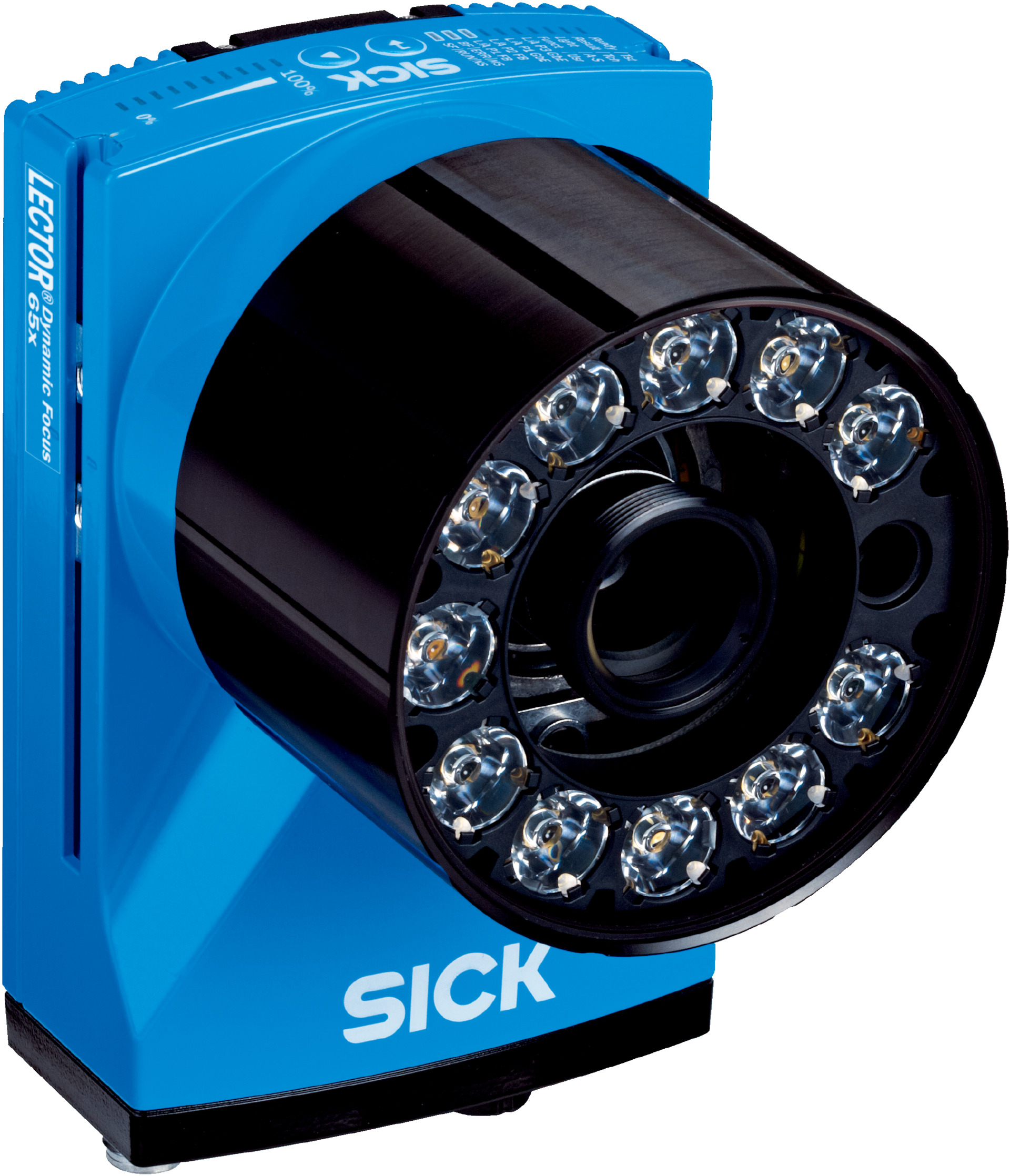

CMOS Barcode Scanner SICK V2D652R-MEBKA6 | 2.1 Mpixel Resolution | IP65 Rated | by SICK
The CMOS Barcode Scanner SICK V2D652R-MEBKA6 features a high-resolution 2.1 Mpixel sensor and integrated blue LED illumination, making it perfect for industrial automation and logistics applications. With a scanning frequency of 70 Hz and the ability to read various 1D and 2D codes, this scanner is designed for reliability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 px x 1088 px (2.1 Mpixel)
- Illumination: Integrated blue LED, 455 nm ± 20 nm
- Laser alignment aid: Red laser 630 nm to 680 nm, Class 1 laser
- Lens: C-mount, 1" optical format, 40 mm focal length, aperture 8
- Scanning frequency: 70 Hz
- Code resolution: ≥ 0.12 mm
- Working range: 500 mm to 2500 mm
- Connection types: 1x M12 17-pin plug, 2x M12 8-pin sockets, 1x M8 4-pin socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable codes: 1D, stacked, 2D codes including GS1-128, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interfaces: Web server, 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 16 GB
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- 2,048 px x 1,088 px (2.1 Mpixel) sensor resolution
- Integrated blue LED illumination (455 nm) with risk group 2 laser class
- Green LED feedback spot and red laser alignment aid
- C-mount lens with 40 mm focal length and aperture 8
- Scanning frequency of 70 Hz with 2 megapixels resolution
- Reads 1D, stacked, and 2D codes including GS1-128, QR code, Data Matrix ECC200
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- Operating temperature range 0 °C to +50 °C
- 512 MB internal image storage and optional microSD card support
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Quality control and product tracking
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP65 housing extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D652R-MEBKA6 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
