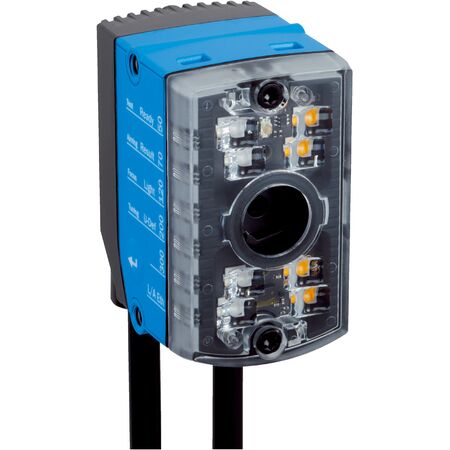

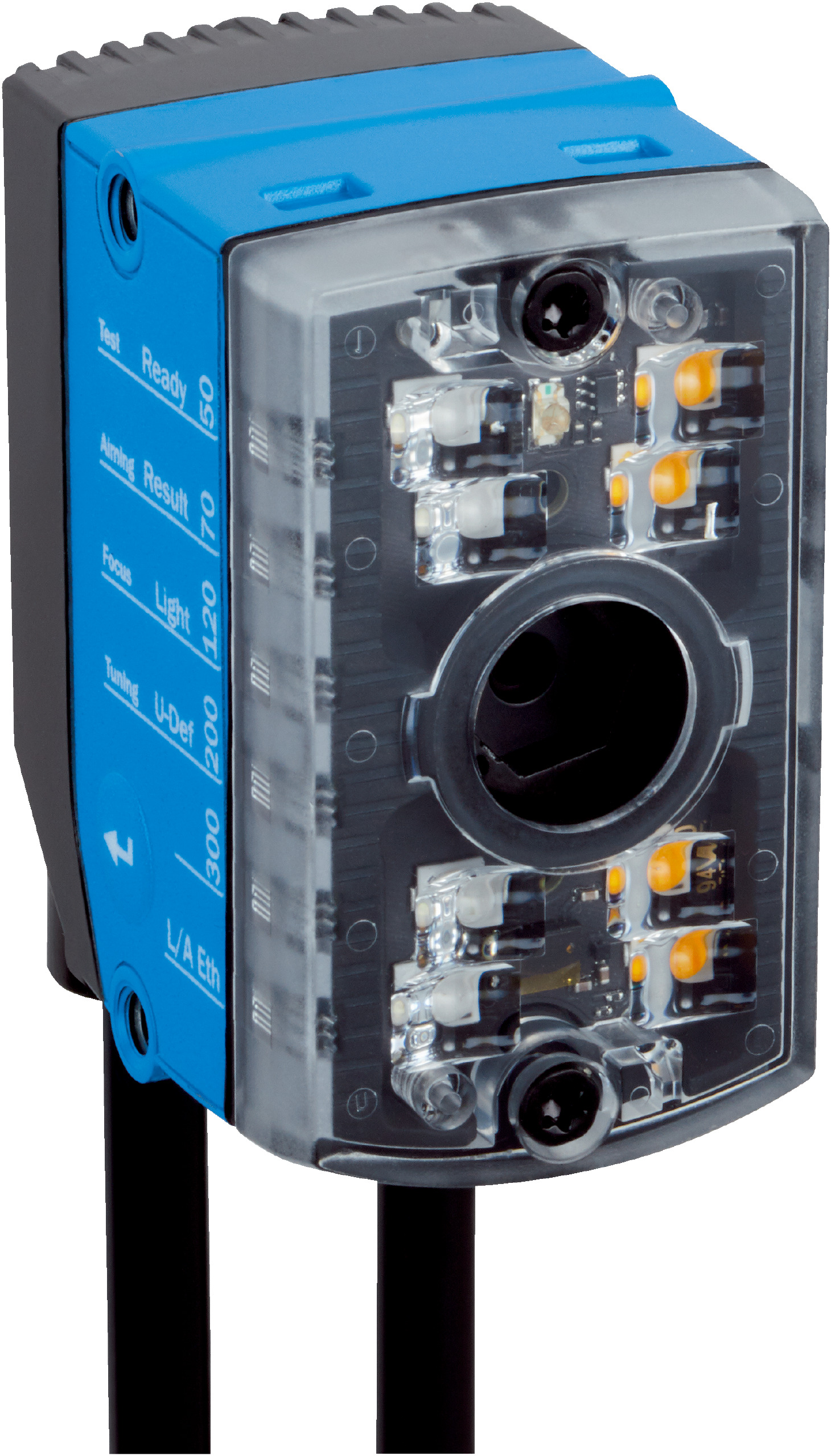

CMOS Barcode Scanner V2D610R | 640 x 480 px | IP54 Rated | Adjustable Focus | by SICK
The CMOS Barcode Scanner V2D610R is designed for industrial automation, featuring a 640 x 480 px resolution and adjustable manual optical focus. With integrated amber and blue LED illumination, it excels in logistics and quality control applications, ensuring reliable barcode reading across various formats, including 1D and 2D codes. Its IP54 rated housing provides protection against dust and water splashes, making it a durable choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 640 x 480 px (0.3 Mpixel)
- Optical focus: Adjustable manual
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Laser class: 1 (IEC 60825-1 compliant)
- Scanning frequency: 40 Hz
- Code resolution: 0.1 mm
- Working range: 50 mm to 300 mm
- Connection types: M12 male connector (17-pin), M12 Ethernet socket (4-pin), circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast
- Enclosure rating: IP54
- Protection class: III
- Electrical safety: EN 62368-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial RS-232, CAN, CANopen
- Digital inputs: 2 physical switching inputs
- Digital outputs: 3 physical switching outputs
- Operator interface: Web server, SOPAS ET configuration software
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Adjustable manual optical focus with 6 mm focal length lens
- CMOS monochrome sensor with 640 x 480 px resolution
- Integrated amber and blue LED illumination
- Class 1 laser compliant with IEC 60825-1 and FDA standards
- Reads 1D, 2D, and stacked barcodes including GS1, QR, Data Matrix, PDF417
- High scanning frequency of 40 Hz with code resolution of 0.1 mm
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, Serial RS-232, CAN, and CANopen
- IP54 rated zinc diecast housing for protection against dust and water splashes
- Supports automated parameter switching and image/data storage via FTP
- Equipped with 9 LEDs for status, alignment, and feedback indication
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for code scanning and tracking
- Quality control and inspection systems
- Packaging and labeling verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK V2D610R-MMSBE4 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
