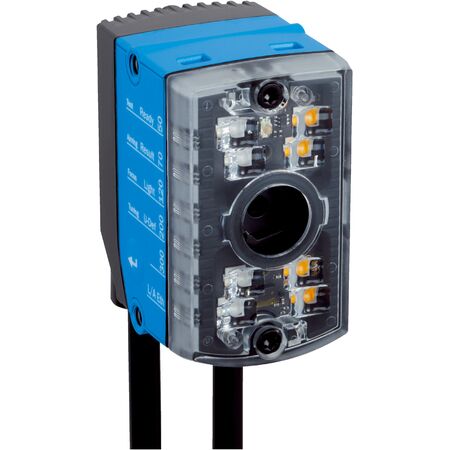

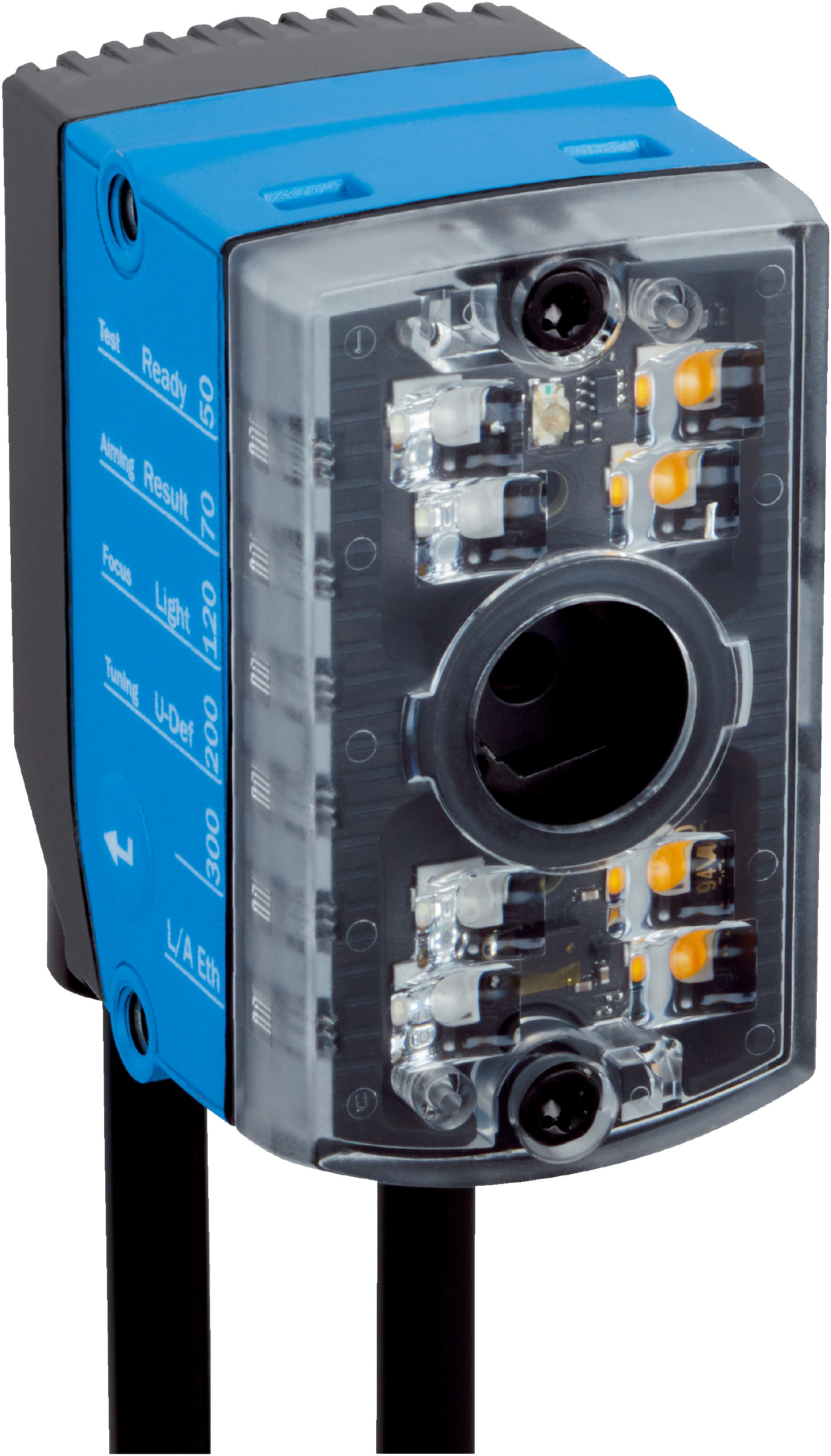

CMOS Barcode Scanner V2D611R-MMSCE4 | 1.2 Mpixel Resolution | IP54 Rated | by SICK
The CMOS Barcode Scanner V2D611R-MMSCE4 is designed for industrial automation, featuring a 1.2 Mpixel resolution and adjustable manual focus for precise code reading. With integrated amber and blue LED illumination, it excels in logistics and manufacturing applications, ensuring reliable performance in various environments. Its robust IP54-rated housing guarantees durability, making it ideal for demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1,280 px x 960 px (1.2 Mpixel)
- Optical focus: Adjustable manual focus, 12 mm focal length
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Scanning frequency: 40 Hz
- Code resolution: 0.02 mm
- Working range: 50 mm to 300 mm
- Connection types: M12 male connector (17-pin), M12 Ethernet socket (4-pin), circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast, light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP54
- Protection class: III
- Electrical safety: EN 62368-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial RS-232, CAN, CANopen
- Digital inputs: 2 physical switching inputs
- Digital outputs: 3 physical switching outputs
- Operator interface: Web server, 1 pushbutton
- Configuration software: SOPAS ET
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Adjustable manual optical focus with 12 mm focal length lens
- CMOS monochrome sensor with 1,280 px x 960 px resolution (1.2 Mpixel)
- Integrated amber and blue LED illumination for clear code reading
- Supports reading of 1D, 2D, and stacked codes including GS1-128, QR code, Data Matrix ECC200
- High scanning frequency of 40 Hz with code resolution of 0.02 mm
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial RS-232, CAN, and CANopen
- Robust zinc diecast housing with IP54 protection rating
- LED feedback spots and alignment aids for easy operation
- Supports automated parameter switching and image/data storage via FTP
- Operating temperature range from 0 °C to +40 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehousing for package tracking
- Manufacturing for product identification and quality control
- Retail for inventory management and point of sale
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D611R-MMSCE4 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
