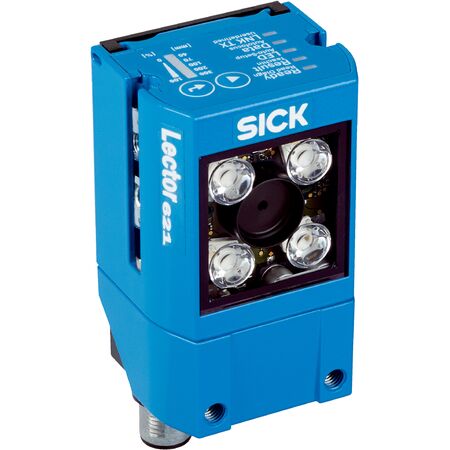

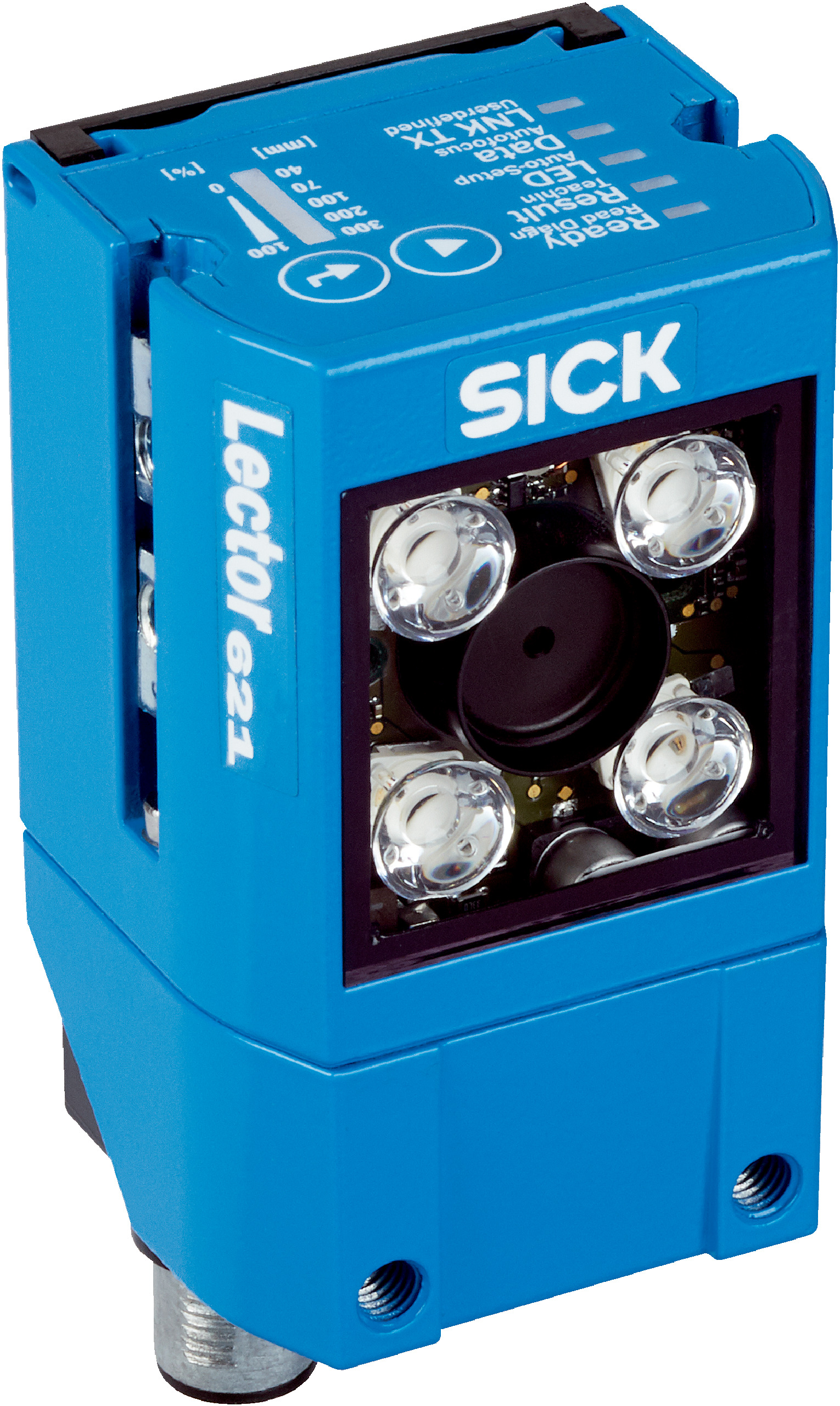

CMOS Barcode Scanner V2D621R-2MCFBB6 | 1.3 Megapixel | IP65 Rated | by SICK
The CMOS Barcode Scanner V2D621R-2MCFBB6 is designed for industrial automation, featuring a 1.3 Megapixel resolution and integrated red and blue LED illumination. With a high scanning frequency of 50 Hz and the ability to read various 1D and 2D codes, it's perfect for logistics, cold storage, and quality control applications. Its robust IP65 rated aluminum housing ensures durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 x 1024 px (1.3 Megapixel)
- Illumination: Integrated red (617 nm) and blue (470 nm) LEDs
- Laser alignment aid: Red laser 630-680 nm, Class 1 laser
- Scanning frequency: 50 Hz
- Code resolution: ≥ 0.05 mm
- Working range: 70 mm to 1500 mm
- Connection types: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 4 W
- Housing: Aluminum die cast, light blue (RAL 5012)
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368
- Weight: 170 g
- MTBF: 75,000 hours
- Readable codes: 1D, stacked, 2D including GS1-128, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, CANopen, PROFIBUS DP
- Operating temperature: 0 °C to +50 °C (special conditions for cold storage)
- Storage temperature: -35 °C to +70 °C
- Relative humidity: 90% non-condensing
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Complete device with teach auto focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated red and blue LED illumination
- Laser alignment aid with Class 1 laser safety
- High scanning frequency of 50 Hz
- Reads 1D, stacked, and 2D codes including GS1-128, QR code, Data Matrix ECC200
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP
- IP65 rated aluminum die cast housing for robust industrial use
- Operating temperature range 0 °C to +50 °C, with special conditions for cold storage
- 16 LED optical indicators and acoustic beeper for status feedback
- Supports image and data storage via microSD and FTP
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Cold storage environments
- Logistics and warehouse management
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable IP65 rated housing extends product life and reduces waste
- Supports cold storage applications minimizing need for additional protective equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D621R-2MCFBB6 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and cold storage applications.
