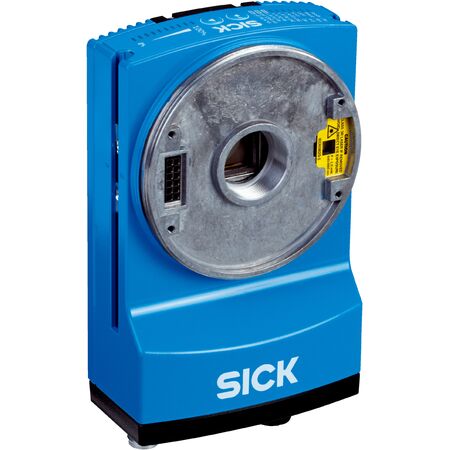

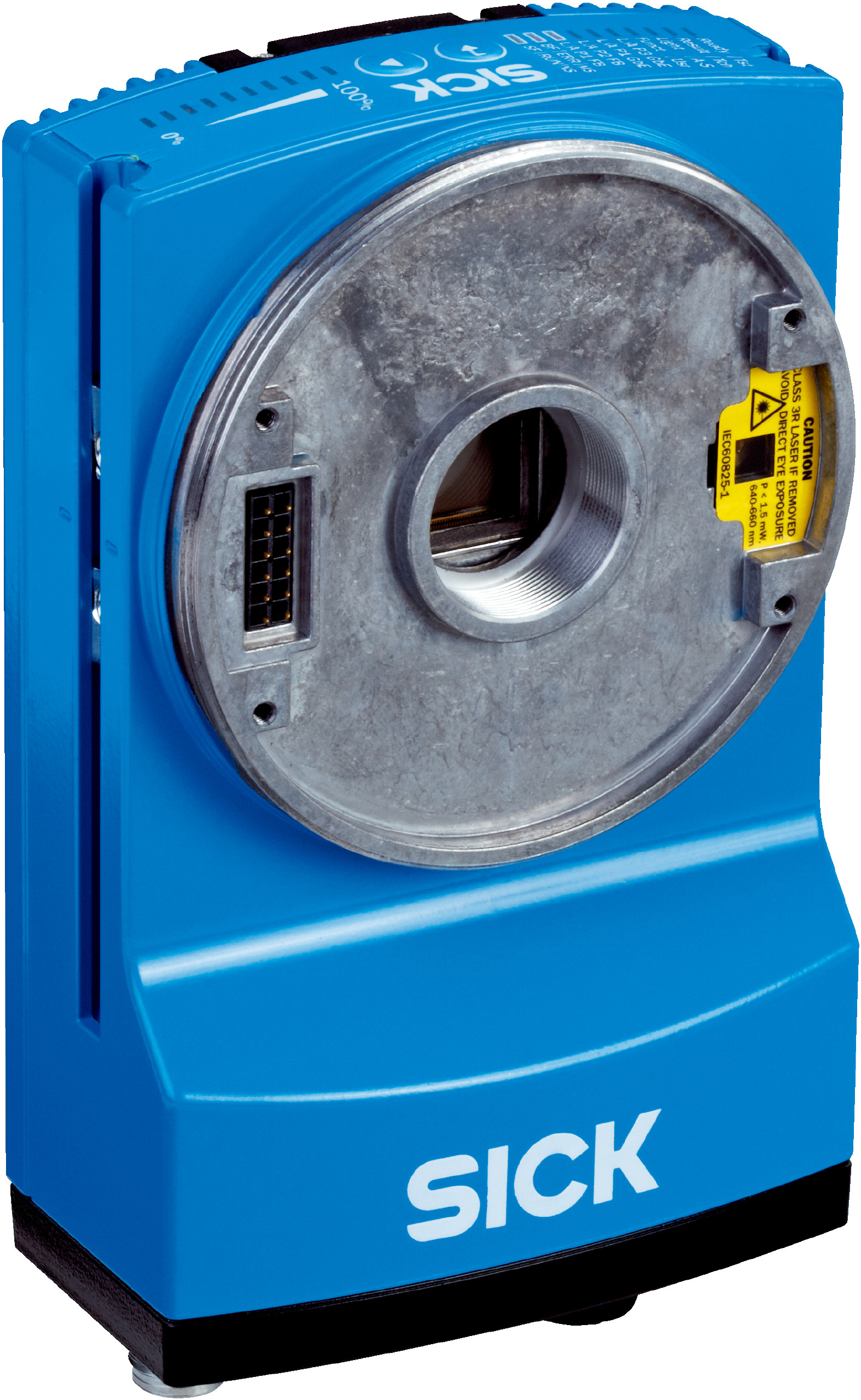

CMOS Barcode Scanner V2D652R-MCXXF6 | 2.1 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The CMOS Barcode Scanner V2D652R-MCXXF6 is designed for industrial automation, featuring a 2.1 Megapixel resolution and adjustable manual optical focus. With a high scanning frequency of 70 Hz and robust IP65-rated aluminum housing, it excels in barcode and 2D code reading applications, ensuring reliability in manufacturing and logistics environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome
- Resolution: 2048 px x 1088 px (2.1 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser 630 nm - 680 nm, Class 1
- Lens: C-mount, 1" optical format (ordered separately)
- Scanning frequency: 70 Hz at 2 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: M12 and M8 plugs and sockets for CAN, Ethernet, and external illumination
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1 (2011-01)
- Weight: 635 g
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including GS1-128, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), EtherNet/IP™, CAN, digital inputs/outputs
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 46mm x 142mm x 89mm
- Weight: 0.635 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 2.1 Megapixel resolution (2048 x 1088 px)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- Supports reading of 1D, 2D, and stacked codes including GS1-128, QR code, Data Matrix ECC200
- High scanning frequency of 70 Hz at 2 megapixels resolution
- Robust aluminum die cast housing with IP65 rating
- Multiple communication interfaces including Ethernet, EtherNet/IP™, CAN, and digital I/O
- Internal image storage of 512 MB and optional microSD card support
- Operating temperature range 0 °C to +50 °C with high ambient light immunity
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and control systems
- Barcode and 2D code reading in manufacturing
- Logistics and warehouse scanning
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing extends product lifespan reducing waste
- Energy-efficient operation with typical power consumption of 20 W
- Supports digital data transmission reducing need for physical media
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D652R-MCXXF6 sensor is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
