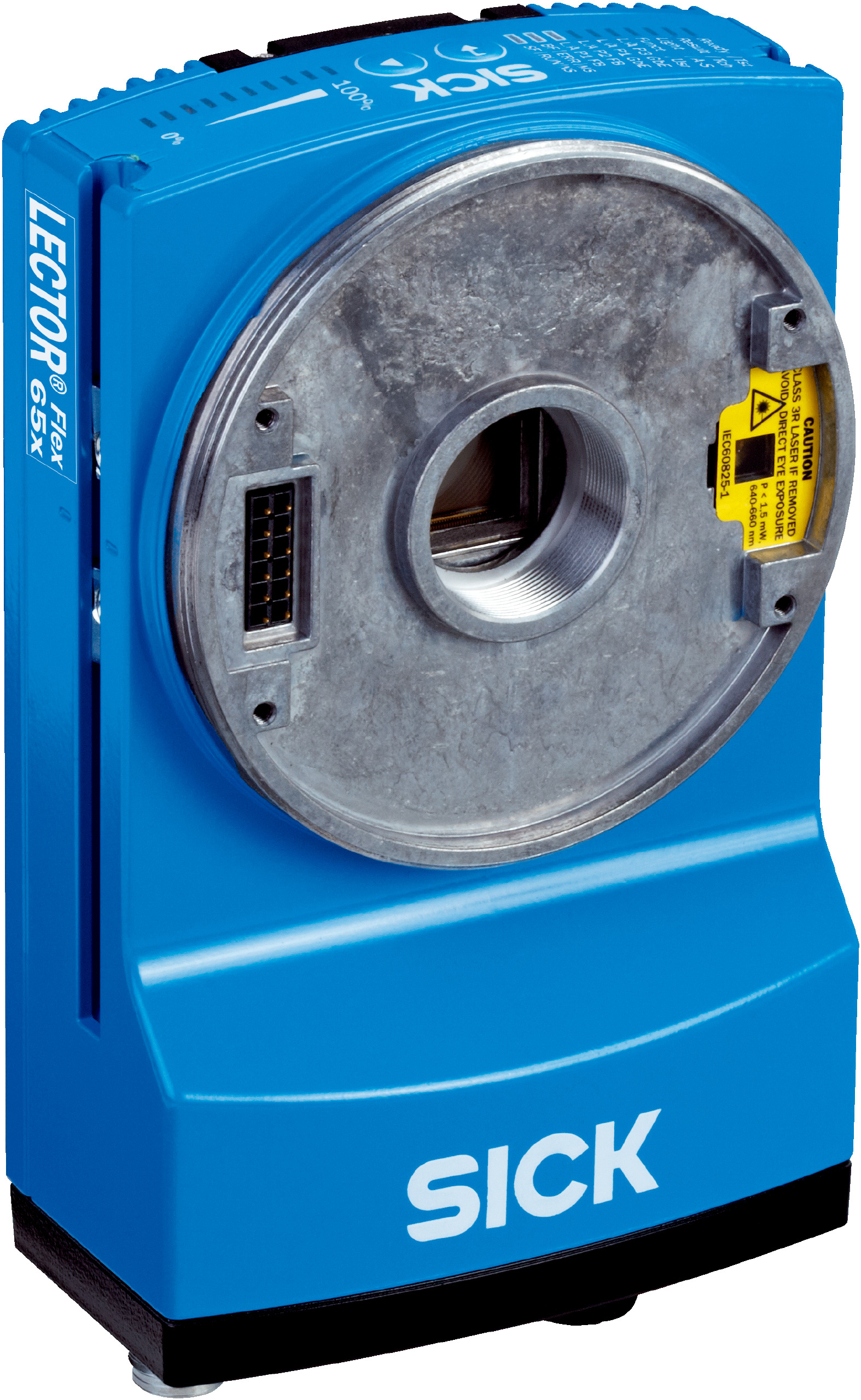

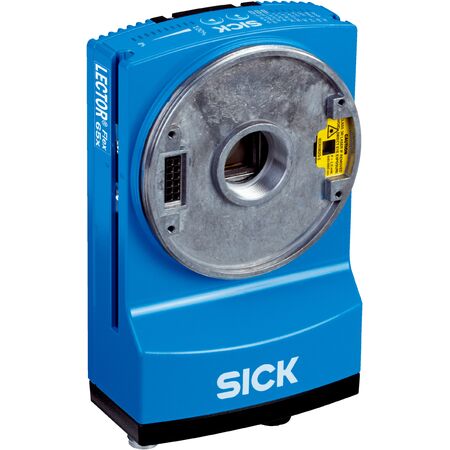

CMOS Barcode Scanner V2D654D-MCXXA6 | 2048 x 2048 Pixels | 40 Hz Scanning Frequency | IP65 Rated | by SICK
The CMOS Barcode Scanner V2D654D-MCXXA6 is designed for industrial automation, featuring a 2048 x 2048 pixels resolution and a high scanning frequency of 40 Hz. With its robust IP65-rated aluminum housing, it excels in harsh environments, making it perfect for logistics, manufacturing quality control, and pharmaceutical applications. This versatile scanner supports various code types, ensuring reliable performance in diverse settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 2048 pixels (4.2 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser, 630 nm to 680 nm, Class 1
- Lens: C-mount, 1 inch optical format
- Scanning frequency: 40 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: 1 x M12 17-pin plug, 2 x M12 8-pin sockets, 1 x M8 4-pin socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked, direct-marked codes
- Supported barcodes: GS1-128, UPC, EAN, Code 39, Code 128, Pharmacode, and more
- Supported 2D codes: Data Matrix ECC200, GS1 Data Matrix, MaxiCode, QR code
- Stacked codes: PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 16 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-6
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 142mm x 89mm
- Weight: 0.635 kg
Key Features
- Adjustable manual optical focus with 2,048 x 2,048 px CMOS monochrome sensor
- Supports 1D, 2D, stacked, and direct-marked codes including GS1, QR, Data Matrix, PDF417
- Laser alignment aid with Class 1 laser safety compliance
- High scanning frequency of 40 Hz with 4 megapixel resolution
- Robust aluminum die-cast housing with IP65 rating for harsh environments
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Internal image storage of 512 MB and optional microSD card support up to 16 GB
- Web server operator interface and configuration via SOPAS ET software
- Electromagnetic compatibility and vibration/shock resistance certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Pharmaceutical and postal code verification
- Manufacturing quality control and traceability
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with typical power consumption of 20 W
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK V2D654D-MCXXA6 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
