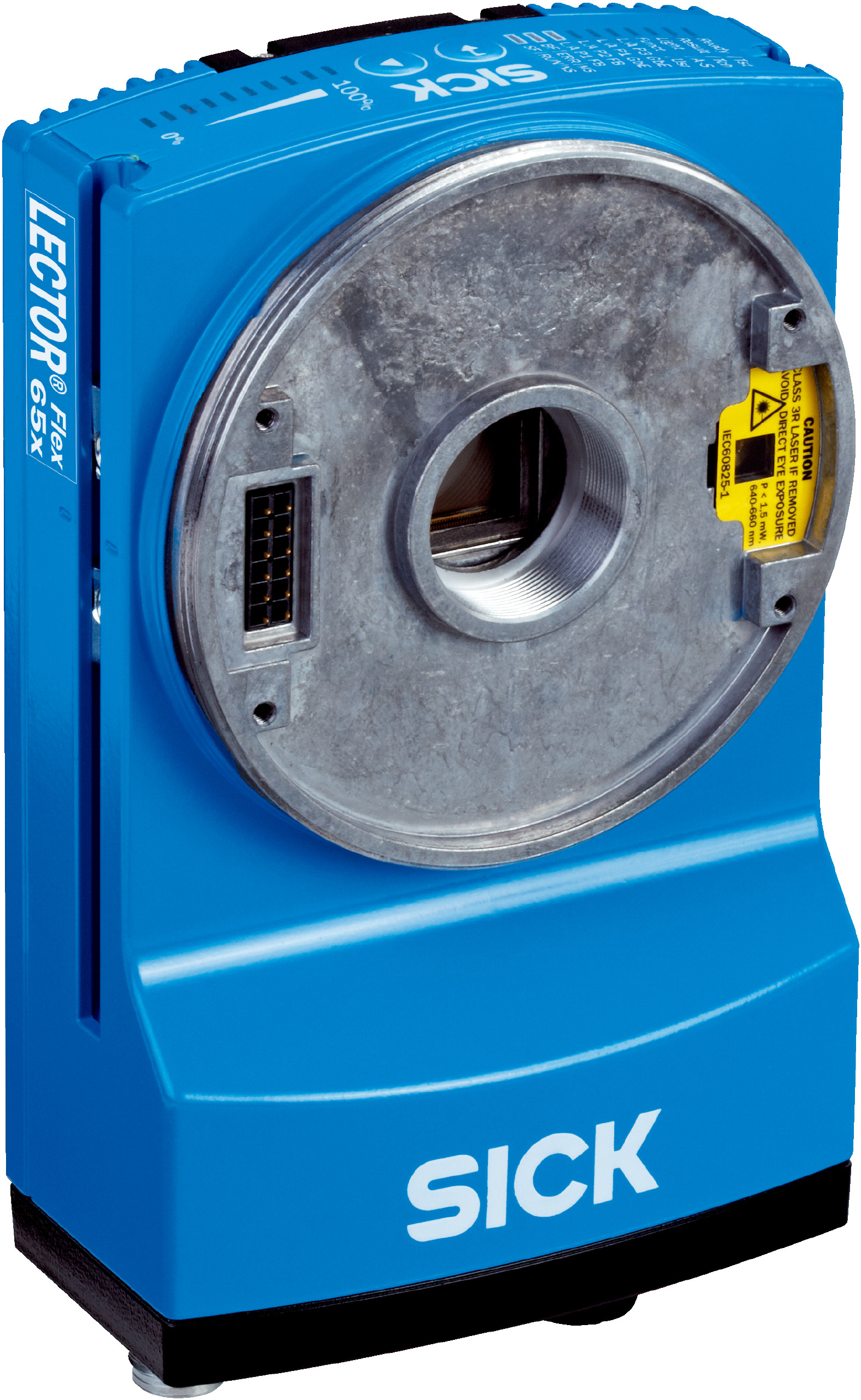

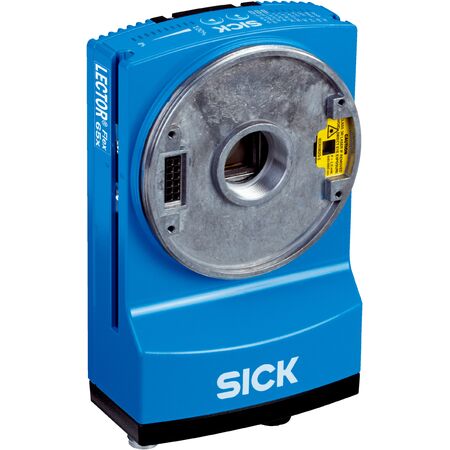

CMOS Barcode Scanner V2D654R-MCXXH6 | 4.2 Megapixel | Adjustable Focus | IP65 Rated | by SICK
The CMOS Barcode Scanner V2D654R-MCXXH6 is designed for industrial automation and logistics, featuring a high-resolution 4.2 Megapixel sensor and adjustable manual optical focus. With a robust IP65-rated aluminum housing, it ensures reliable performance in demanding environments, making it ideal for quality control and package tracking applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 2048 px (4.2 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser, 630 nm to 680 nm, Class 1
- Lens: C-mount, 1" optical format
- Scanning frequency: 40 Hz at 4 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket, M8 4-pin socket, M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1 (2011-01)
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked codes
- Supported barcode types: GS1-128, UPC, EAN, QR code, Data Matrix ECC200, PDF417, and others
- Interfaces: Ethernet (1 Gbit/s), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 16 GB
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on code
- Dimensions (H x L x W): 46mm x 142mm x 89mm
- Weight: 0.635 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 2048 x 2048 px resolution (4.2 Megapixel)
- Laser alignment aid (Red, 630 nm to 680 nm), Laser class 1 compliant
- Supports 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200
- High scanning frequency of 40 Hz at 4 megapixels resolution
- Multiple communication interfaces including Ethernet (1 Gbit/s), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, and PROFIBUS DP
- Robust aluminum die-cast housing with IP65 rating
- Operating temperature range 0 °C to +50 °C
- Internal image storage of 512 MB with optional microSD card support
- Comprehensive digital and configurable inputs/outputs for flexible integration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient 24 V DC power supply reduces operational energy consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D654R-MCXXH6 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
