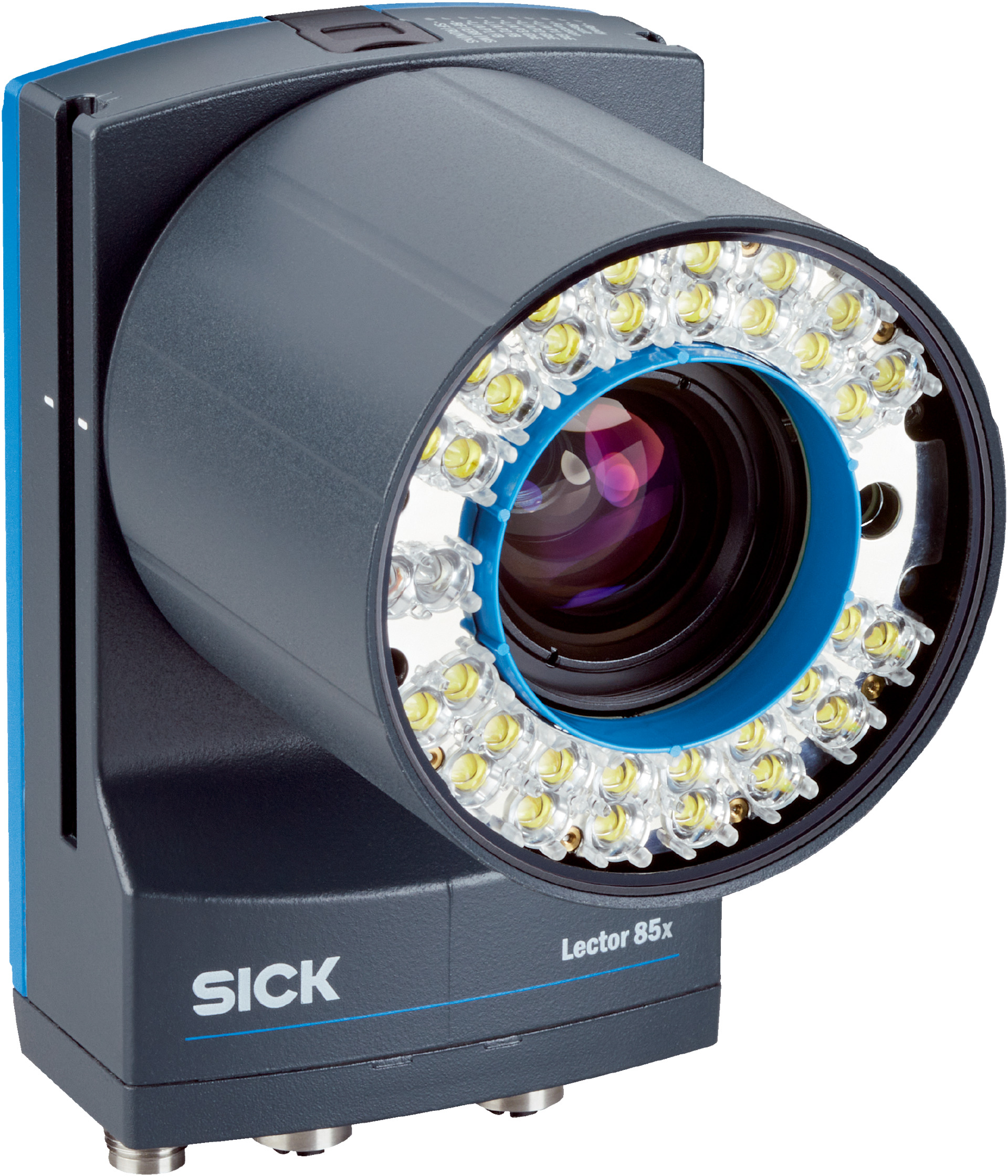

CMOS Barcode Scanner V2D8509R | 9 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK

BRAND: SICK
SKU: 1134217
$37,981.10 List price: $47,738.30
+ −
30 Days Return Delivery Options
The CMOS Barcode Scanner V2D8509R delivers high-resolution scanning with a 9 Megapixel sensor and adjustable optical focus, making it perfect for indoor industrial automation and logistics. With integrated white LED illumination and robust aluminum housing, this scanner ensures reliable performance in quality control and traceability applications.
Technical Specifications
  • Sensor: CMOS monochrome, 4096 x 2176 px (9 Megapixel)
  • Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
  • Optical focus: Adjustable (manual)
  • Lens: C-mount, 16 mm focal length, aperture 1.8 to 16
  • Scanning frequency: 20 Hz
  • Code resolution: ≥ 0.1 mm
  • Working range: 500 mm to 3000 mm
  • Connection types: 1x M12 17-pin male (power, CAN, serial, I/O), 1x M12 5-pin male (power, CAN), 3x M12 8-pin female (Gigabit Ethernet)
  • Supply voltage: 24 V DC ± 20%
  • Power consumption: Typical 24 W
  • Current consumption: Max 2 A
  • Housing: Aluminum die cast, anthracite gray (RAL 7016)
  • Window: 2 mm thick glass with scratch-proof coating
  • Enclosure rating: IP65
  • Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
  • MTBF: 100,000 hours
  • Interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232, RS-422), USB 2.0
  • Digital inputs: 2 insulated inputs, 13 configurable digital I/O
  • Operating temperature: 0°C to +50°C
  • Storage temperature: -20°C to +70°C
  • Relative humidity: ≤ 90%, non-condensing
  • EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
  • Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
  • Shock resistance: EN 60068-2-27:2008
  • Dimensions (H x L x W): 46mm x 143.4mm x 90mm
  • Weight: 0.64 kg
Key Features
  • Adjustable manual optical focus
  • CMOS monochrome sensor with 9 Megapixel resolution (4096 x 2176 px)
  • Integrated white LED illumination with 32 LEDs
  • Aperture angle of 47° for illumination
  • Low risk LED class 1 and laser class 1 compliant with safety standards
  • C-mount lens with 16 mm focal length and aperture range 1.8 to 16
  • Scanning frequency of 20 Hz at 9 megapixels resolution
  • Reads 1D, 2D, and stacked barcode types including Code 128, QR code, Data Matrix ECC200, PDF417
  • Multiple interfaces: Ethernet (Gigabit), CAN, Serial (RS-232, RS-422), USB 2.0
  • Robust aluminum die cast housing with IP65 rating
  • Operating temperature range 0°C to +50°C
  • EMC compliant with IEC 61000-6-2 and IEC 61000-6-4 standards
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
  • Indoor area barcode scanning
  • Industrial automation and logistics
  • Quality control and traceability
Standards & Compliance
  • AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
  • Energy-efficient LED illumination reduces power consumption
  • Durable aluminum housing extends product lifespan, reducing waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK V2D8509R-1MCIDXAL2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial and automation applications.
