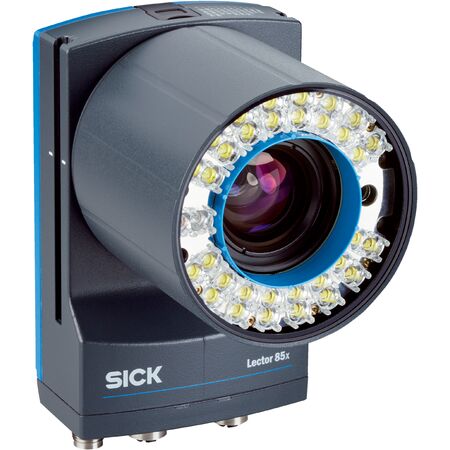

CMOS Barcode Scanner V2D8512R | 12 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The CMOS Barcode Scanner V2D8512R is designed for high-performance indoor barcode scanning, featuring a 12 Megapixel monochrome sensor and adjustable optical focus. With integrated white LED illumination and robust aluminum housing, it excels in industrial automation and logistics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 6048 px x 2048 px (12 Megapixel)
- Illumination: Integrated white LED, 32 LEDs, 31° aperture angle
- Optical focus: Adjustable manual
- Lens: C-mount, 1" optical format, 25 mm focal length, aperture 1.8 to 22
- Scanning frequency: 15 Hz at 12 Megapixel resolution
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: 1x M12 17-pin male, 1x M12 5-pin male, 3x M12 8-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, anthracite gray (RAL 7016)
- Window material: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- MTBF: 100,000 hours
- Interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, 13 configurable digital I/Os
- Operator interface: Web server
- Configuration software: SOPASair
- Memory card slot: Micro SD (not included)
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Permissible relative humidity: ≤ 90%, non-condensing
- Electromagnetic compatibility: IEC 61000-6-2:2016 / IEC 61000-6-4:2018
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- Altitude: < 5,000 m
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 6048 x 2048 resolution
- Integrated white LED illumination with 32 LEDs
- Risk group 1 low risk LED and laser classes
- C-mount lens with 25 mm focal length and aperture range 1.8 to 22
- Reads 1D, 2D, and stacked barcodes including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple interfaces including Ethernet, CAN, Serial (RS-232, RS-422), USB 2.0
- Robust aluminum die cast housing with IP65 rating
- Wide operating temperature range 0°C to +50°C
- High electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area barcode scanning and code reading
- Industrial automation and quality control
- Logistics and warehouse management
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8512R-1WCKEXAL2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial and logistics applications.
