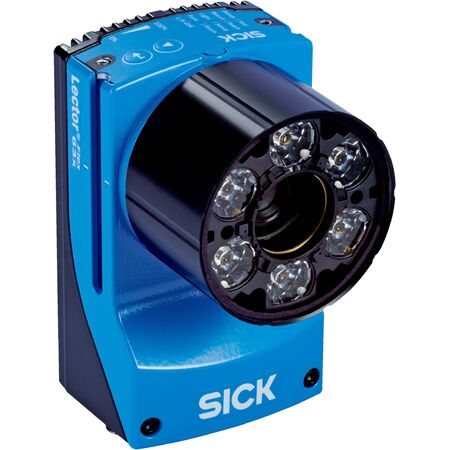

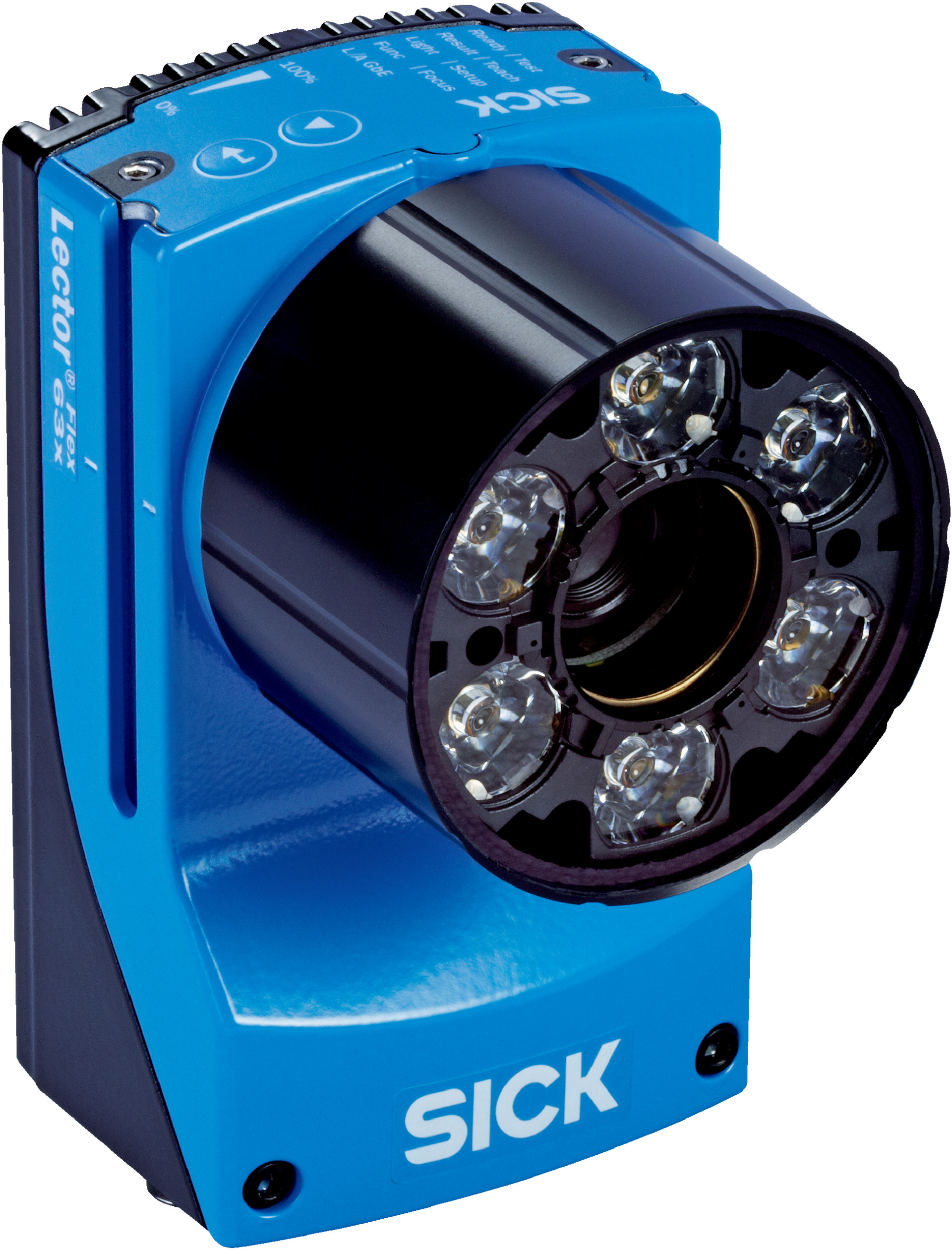

CMOS Monochrome Code Reader | 1.3 Megapixel | IP67 Rated | Adjustable Focus | by SICK
The CMOS Monochrome Code Reader is designed for industrial automation, featuring a 1.3 Megapixel resolution and adjustable manual optical focus. With integrated white LED illumination and robust IP67-rated housing, it excels in harsh environments, making it perfect for logistics, quality control, and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 x 1024 px (1.3 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spot: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Focal length: 25 mm, Aperture: 8, Optical format: 1/1.8"
- Scanning frequency: ≤ 50 Hz at 1.3 Megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable codes: 1D, 2D, stacked codes including GS1-128, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4, Digital outputs: 6, Configurable inputs and outputs
- Indicators: 11 LEDs, beeper, 2 control buttons
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 74mm x 108mm x 63mm
- Weight: 0.5 kg
Key Features
- Adjustable manual optical focus with 25 mm focal length and aperture 8
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated white LED illumination with visible green and red feedback spots
- Laser alignment aid (Class 1 laser compliant with IEC 60825-1 Ed.3)
- Reads 1D, 2D, and stacked codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Robust aluminum die-cast housing with IP67 rating for harsh environments
- Supports image and data storage via microSD card and external FTP
- Configurable digital inputs and outputs with multiple feedback indicators
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package tracking and sorting
- Quality control and inspection systems
- Pharmaceutical and postal code verification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP67 rated housing extends product lifespan in harsh environments
- Supports digital data storage reducing paper and physical media use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D631R-MWSFB4 CMOS Monochrome Code Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
