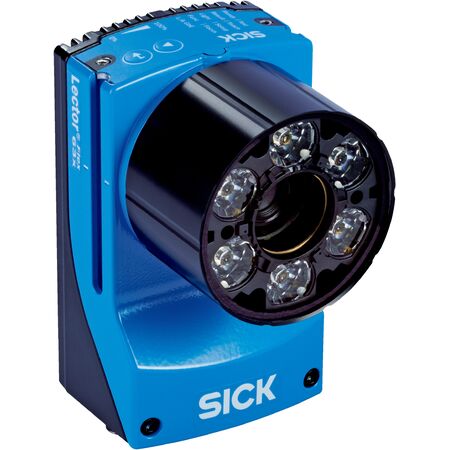

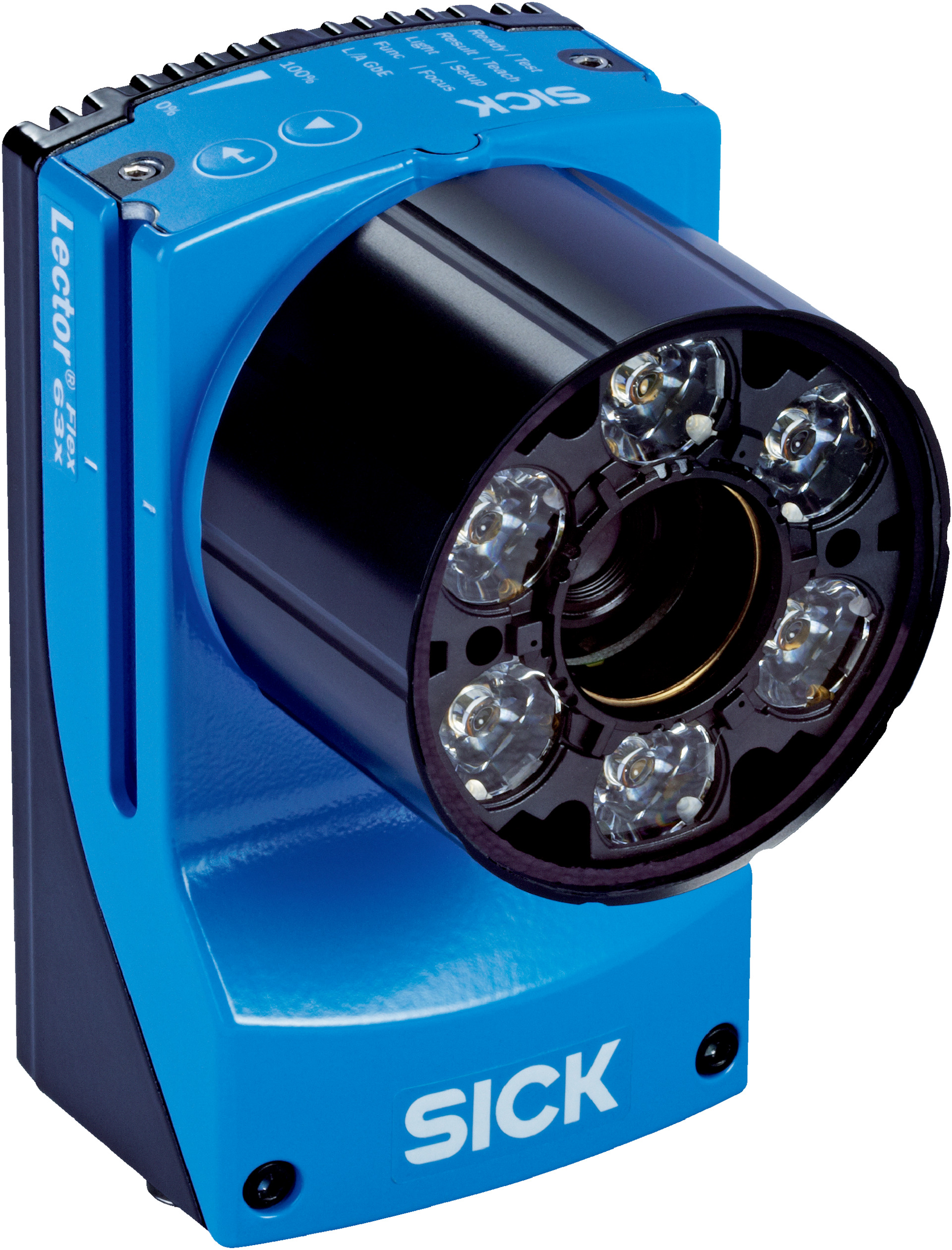

CMOS Monochrome Code Reader | 1.9 Megapixel | IP67 Rated | Adjustable Focus | by SICK
The CMOS Monochrome Code Reader is designed for industrial automation, featuring a 1.9 Megapixel resolution and adjustable manual optical focus. With integrated white LED illumination and robust IP67-rated housing, it excels in barcode and 2D code reading applications, ensuring reliable performance in logistics, manufacturing, and quality control environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 x 1200 px (1.9 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spots: Green (525 nm) and Red (630 nm) LEDs
- Laser alignment aid: Red laser, Class 1 compliant with IEC 60825-1 Ed.3
- Lens: C-mount compact, 12 mm focal length, aperture 8
- Scanning frequency: Up to 50 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin Ethernet socket, M8 4-pin USB socket, M12 4-pin external illumination control
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial RS-232/422, CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 74mm x 108mm x 63mm
- Weight: 0.5 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Class 1 laser compliant with IEC 60825-1 Ed.3)
- C-mount compact lens with 12 mm focal length and aperture 8
- Scanning frequency up to 50 Hz at full resolution
- Reads 1D, 2D, and stacked codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Multiple interface options: Ethernet, PROFINET, EtherNet/IP, Serial RS-232/422, CAN, PROFIBUS DP
- Robust aluminum die cast housing with IP67 rating
- Supports microSD memory card for image and data storage
- Configurable digital inputs and outputs with optical and acoustic indicators
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Manufacturing quality control
- Packaging and labeling verification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP67 rated housing extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D632R-MKMDB4 CMOS Monochrome Code Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
