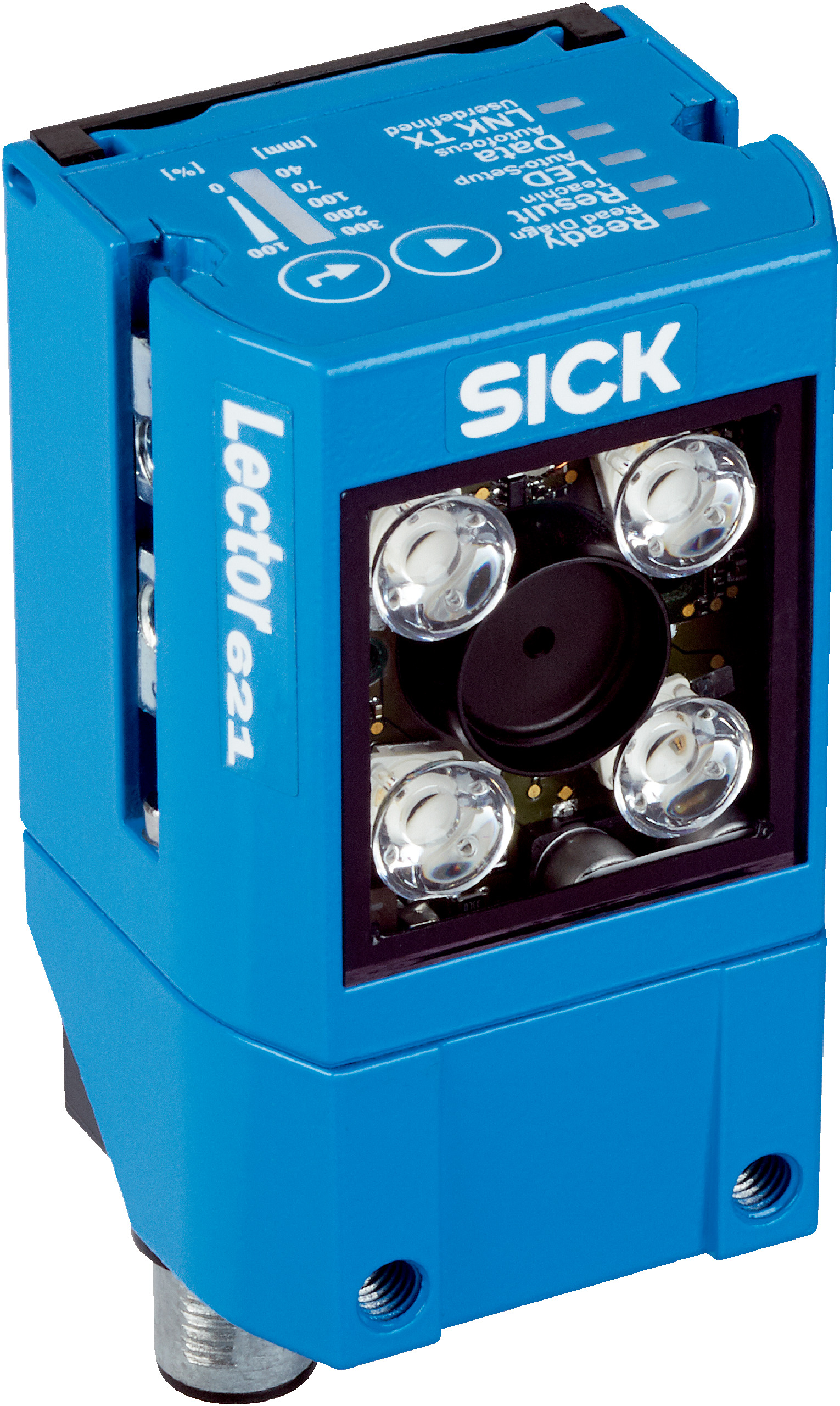

CMOS Monochrome Code Reader | 1,280 x 1,024 Resolution | IP65 Rated | by SICK
The CMOS Monochrome Code Reader is designed for industrial automation, featuring a high resolution of 1,280 x 1,024 pixels and integrated infrared LED illumination. Ideal for barcode and 2D code reading in logistics and manufacturing, it supports multiple communication interfaces and operates within a temperature range of 0 °C to +50 °C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 1,024 px (1.3 Mpixel)
- Illumination: Integrated infrared LED, 850 nm ± 25 nm
- Laser alignment aid: Red laser 630 nm to 680 nm, Class 1
- Scanning frequency: 50 Hz
- Code resolution: 0.25 mm
- Working range: 300 mm to 1,500 mm
- Connection types: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 4 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368
- MTBF: 75,000 hours
- Readable code types: 1D, stacked, 2D, direct-marked codes
- Supported barcodes: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey, MSI/Plessey, Telepen, postal codes
- Supported 2D codes: Data Matrix ECC200, GS1 Data-Matrix, PDF417, QR code, MaxiCode
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 0.3 kBaud to 115.2 kBaud
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Complete device with teach auto focus
- CMOS monochrome sensor with 1,280 px x 1,024 px resolution
- Integrated infrared LED illumination (850 nm) with LED class 0
- Red laser alignment aid (630 nm to 680 nm), laser class 1
- Reads 1D, stacked, 2D, and direct-marked codes
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- IP65 rated aluminum die cast housing with plastic window
- Operating temperature range 0 °C to +50 °C
- 16 LED optical indicators and acoustic beeper for status feedback
- Supports image and data storage via microSD and FTP
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehousing for package tracking
- Manufacturing for quality control and traceability
- Pharmaceutical and postal code verification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable IP65 rated housing extends product life and reduces waste
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

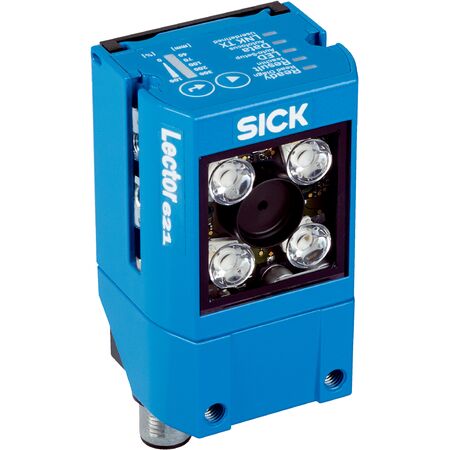

The SICK V2D621D-2MDFGB5 CMOS Monochrome Code Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
