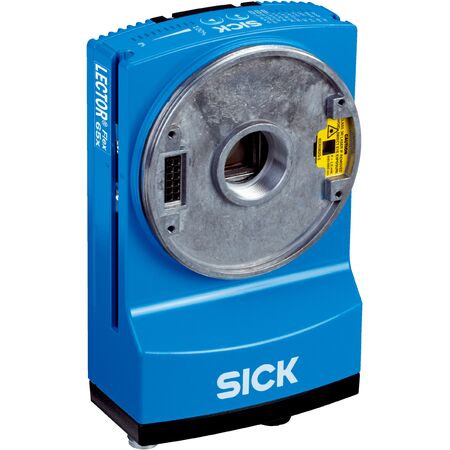

CMOS Monochrome Code Reader V2D654R-MCXXF6 | 2048 x 2048 px | Adjustable Focus | IP65 Rated | by SICK
The CMOS Monochrome Code Reader V2D654R-MCXXF6 is designed for industrial automation, featuring a high-resolution 2048 x 2048 px sensor and adjustable manual optical focus. With a robust IP65-rated aluminum housing, it excels in barcode and 2D code reading applications, ensuring reliability in logistics, manufacturing, and quality assurance processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 2048 px (4.2 Mpixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser, 630 nm to 680 nm, Class 1
- Scanning frequency: 40 Hz at 4 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: M12 and M8 plugs and sockets for CAN, Ethernet, and external illumination
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, color light blue (RAL 5012)
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1 (2011-01)
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, stacked codes
- Supported barcode types: GS1-128, UPC, EAN, Code 39, Code 128, Codabar, USPS, Australian Post, and more
- Supported 2D codes: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
- Stacked codes: PDF417
- Code qualification standards: ISO/IEC 16022, 15415, 18004
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, CAN
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 16 GB
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 46mm x 142mm x 89mm
- Weight: 0.635 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 2048 x 2048 px resolution (4.2 Mpixel)
- Laser alignment aid (Red, 630 nm to 680 nm), Laser class 1 compliant
- Supports 1D, 2D, and stacked code reading including GS1-128, QR code, Data Matrix ECC200
- High scanning frequency of 40 Hz at 4 megapixels resolution
- Robust aluminum die cast housing with IP65 rating
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, CAN
- Digital inputs and outputs configurable for various control functions
- Internal image storage of 512 MB and optional microSD card support
- Operating temperature range 0 °C to +50 °C with high ambient light immunity
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing extends product lifespan reducing waste
- Energy-efficient operation with typical power consumption of 20 W
- Supports digital communication reducing need for additional cabling and hardware
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D654R-MCXXF6 CMOS Monochrome Code Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
