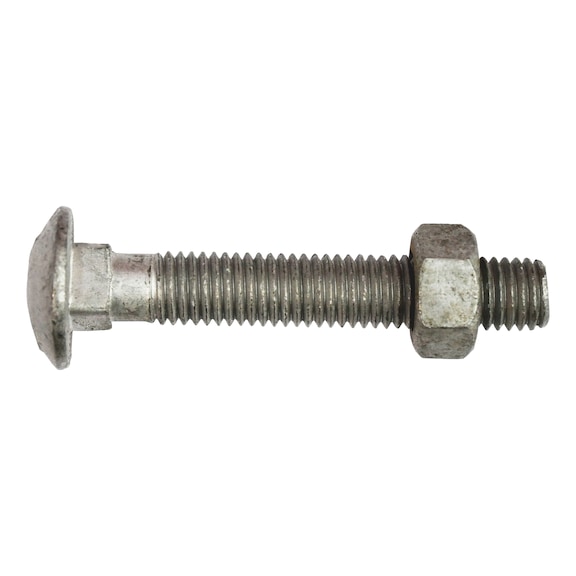

Coach Bolts with Nuts | M10 Thread | Hot Dip Galvanized Finish | Square Neck Design | @Pack of 25 | by Wurth

BRAND: Wurth
SKU: 3619810100
$57.30 List price: $72.10
25 PCS ($2.29 per PCS)
+
Coach bolts with nuts featuring a robust M10 thread and a hot dip galvanized finish are perfect for outdoor timber applications. Designed with a square neck to prevent turning during installation, these bolts ensure secure fastening for hinges, fencing, and gates. Ideal for both professional tradespeople and DIY enthusiasts, they offer long-lasting corrosion resistance and a smooth, low-profile appearance.

Product Name/Title: Coach Bolts with Nuts | M10 Thread | Hot Dip Galvanized Finish | Square Neck Design | @Pack of 25 | by Wurth

Brand: Wurth

SKU: 3619810100

Alternatively Known As: Coach Bolt Set, Square Neck Bolt, Galvanised Coach Bolts, Timber Coach Bolts, Hex Bolts with Nuts

Technical Specifications
  • Thread type x nominal diameter: M10
  • Length: 100 mm
  • Material: Steel
  • Property class: 4.6
  • Surface: Hot dip galvanized
  • Head diameter: 22 mm
  • Head height: 5.4 mm
  • Square width: 10 mm
  • Square height: 5.4 mm
  • Standards: AS/NZS 1390
  • RoHS-compliant: Yes
  • Thread type: Metric thread
  • Pitch: 1.5 mm
  • Shank diameter: 10.58 mm
  • Thread length: 26 mm
  • Product class: C
  • Dimensions (H x L x W): 5.4mm x 100mm x 22mm
  • Weight: 0.5 kg
Key Features
  • Square neck prevents fastener from turning during installation, especially in timber applications
  • Smooth low profile domed head provides a pleasant visual appearance and aids in security as the fastener can only be removed from one side
  • Hot dipped galvanised finish ideal for outdoor use
Professional Installation Requirements
  • Installation by a qualified tradesperson or experienced DIYer is recommended to ensure proper fastening and safety.
Applications
  • Outdoor timber applications
  • Hinges
  • Fencing
  • Gates
  • Timber furniture assembly
Standards & Compliance
  • AS/NZS 1390 – Hot-dip galvanized coatings on threaded fasteners
Environmental Benefits
  • Hot dipped galvanised coating provides long-lasting corrosion resistance, reducing the need for frequent replacements and minimizing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.

Available Now

Wurth Coach Bolts with Nuts 25 PCS are available for immediate purchase, ideal for outdoor timber fastening applications.
