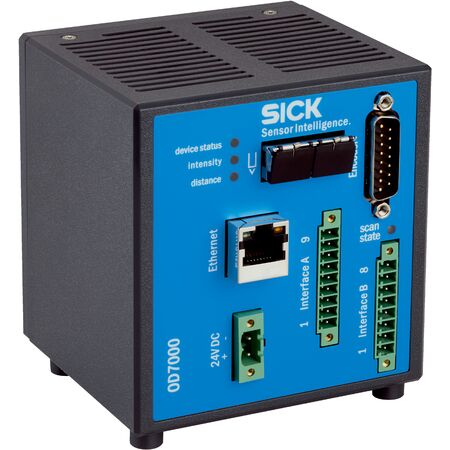

Coating Thickness Sensor OD7000-10061031 | 0.6 mm Measuring Range | 25 nm Axial Resolution | IP20 Rated | by SICK
The Coating Thickness Sensor OD7000-10061031 is designed for precise thickness measurement, featuring a measuring range of 0.6 mm and high resolution of 25 nm axial and 2 µm lateral. Ideal for industrial quality control and inspection, this sensor supports multiple interfaces including RS-232, RS-422, and Ethernet TCP/IP, ensuring seamless integration into manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0.6 mm
- Resolution: Axial 25 nm, Lateral 2 µm
- Linearity: ≥ 0.198 µm
- Number of measuring channels: 1
- Light source: LED Visible white light
- LED risk group: Risk group 1 IEC 62471
- Interfaces: Serial RS-232, RS-422; Ethernet TCP/IP
- Data transmission rate: RS-232 max 1.8 MBaud, RS-422 max 10 MBaud, Ethernet 100 Mbit/s
- Digital inputs: 2
- Digital outputs: 2
- Analog outputs: 2 (current and voltage)
- Trigger input/output: 1 each
- Encoder inputs: 3
- Supply voltage: DC 24 V ± 10%
- Power consumption: 4 W
- Warm-up time: 30 min
- Indication: 4 status LEDs
- Enclosure rating: IP20 (IEC 60529)
- Protection class: III (IEC 61140)
- Electrical safety: IEC 61010
- Dimensions (H x L x W): 106mm x 95mm x 95mm
- Weight: 0.55 kg
Key Features
- Measuring range of 0.6 mm
- High resolution: Axial 25 nm, Lateral 2 µm
- Linearity ≥ 0.198 µm
- Single measuring channel
- Visible white LED light source
- LED risk group 1 IEC 62471
- Multiple interfaces including Serial RS-232, RS-422, Ethernet TCP/IP
- Digital and analog outputs with current and voltage options
- Trigger and encoder inputs for synchronization
- Power consumption of 4 W with 24 V DC supply
- IP20 enclosure rating and protection class III
- Electrical safety compliant with IEC 61010
Professional Installation Requirements
- Installation and setup should be performed by qualified personnel familiar with industrial sensors and electrical safety standards.
Applications
- Coating thickness measurement on natural objects
- Industrial quality control and inspection
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK OD7000-10061031 sensor is available for immediate purchase, ideal for industrial coating thickness measurement and quality control applications.
