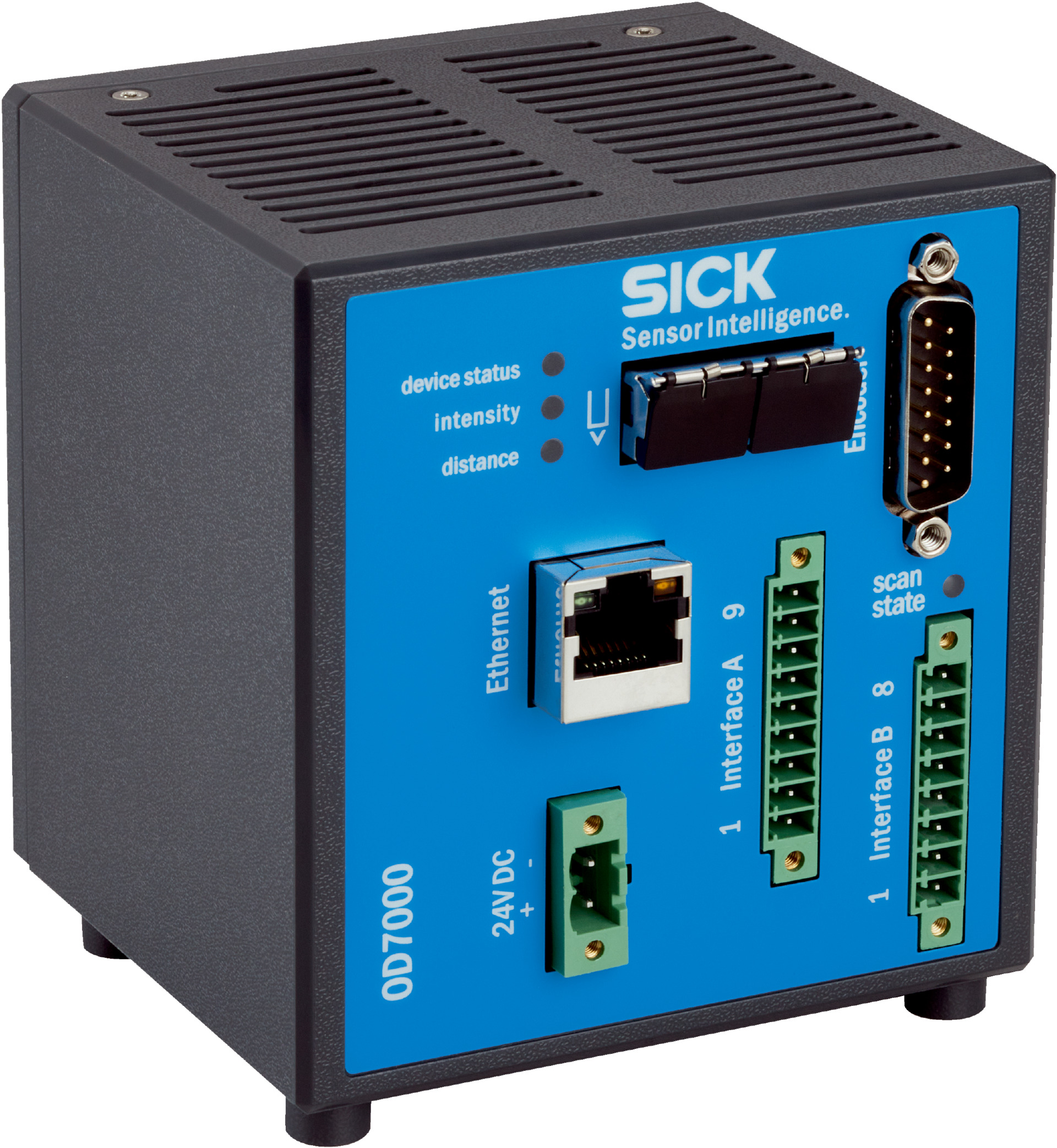

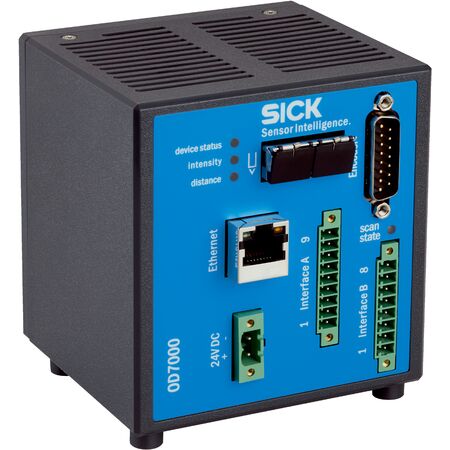

Coating Thickness Sensor OD7000-10401031 | 4 mm Measuring Range | 180 nm Resolution | IP20 Rated | by SICK
The Coating Thickness Sensor OD7000-10401031 is designed for precise thickness measurement, featuring a 4 mm measuring range and high resolution of 180 nm axial and 8 µm lateral. Ideal for industrial quality control and inspection, this sensor supports multiple interfaces including Serial and Ethernet, ensuring seamless integration into manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 4 mm
- Resolution: Axial 180 nm, Lateral 8 µm
- Linearity: ≥ 1.4 µm
- Number of measuring channels: 1
- Light source: Visible white LED
- LED risk group: Risk group 1 IEC 62471
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP)
- Data transmission rate: RS-232 max 1.8 MBaud, RS-422 max 10 MBaud, Ethernet 100 Mbit/s
- Digital inputs: 2, Digital outputs: 2
- Analog outputs: 2 (current –10 mA to 10 mA, voltage –10 V to 10 V)
- Trigger input: 1, Trigger output: 1, Encoder input: 3
- Supply voltage: DC 24 V ± 10%
- Power consumption: 4 W
- Warm-up time: 30 minutes
- Indication: 4 status LEDs
- Enclosure rating: IP20 (IEC 60529)
- Protection class: III (IEC 61140)
- Electrical safety: IEC 61010
- Operating temperature: 0 °C to +50 °C
- Storage temperature: –20 °C to +70 °C
- Relative humidity: 30% to 75% non-condensing
- EMC: Radiated emission EN 61326-1
- Dimensions (H x L x W): 106mm x 95mm x 95mm
- Weight: 0.55 kg
Key Features
- Measuring range of 4 mm
- High resolution with axial 180 nm and lateral 8 µm
- Linearity of ≥ 1.4 µm
- Single measuring channel
- Visible white LED light source
- LED risk group 1 according to IEC 62471
- Multiple interfaces including Serial (RS-232, RS-422), Ethernet (TCP/IP)
- Digital inputs and outputs, analog outputs with current and voltage options
- Trigger and encoder inputs
- Power consumption of 4 W with 24 V DC supply
- IP20 enclosure rating and protection class III
- Electrical safety compliant with IEC 61010
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation and setup should be performed by qualified personnel familiar with industrial sensors and electrical safety standards.
Applications
- Coating thickness measurement on natural objects
- Industrial quality control and inspection
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Electrical safety compliant with IEC 61010 standards
Environmental Benefits
- Enables precise measurement reducing material waste
- Supports efficient quality control to minimize defective products
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK OD7000-10401031 sensor is available for immediate purchase, ideal for industrial coating thickness measurement and quality control applications.
