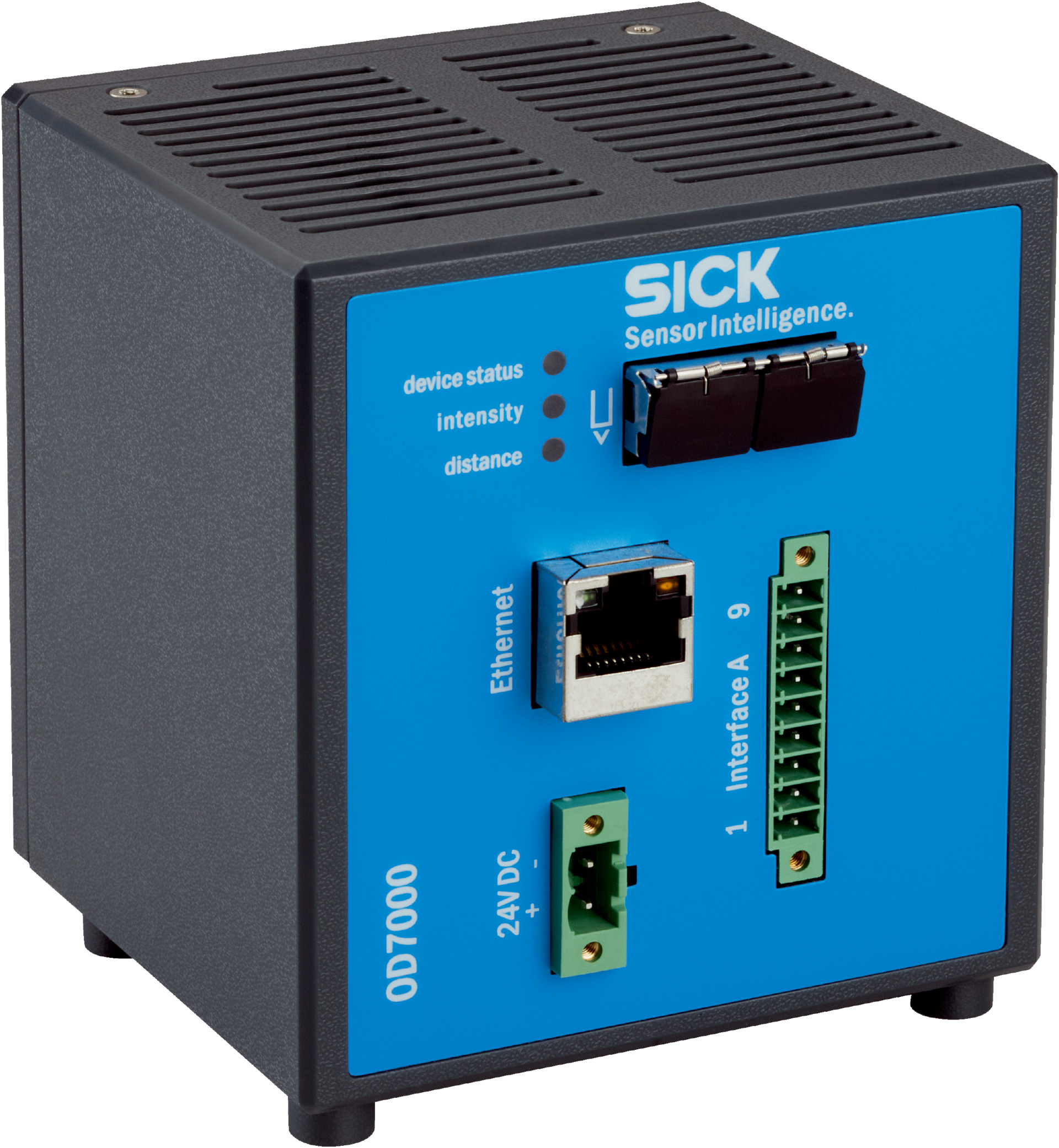

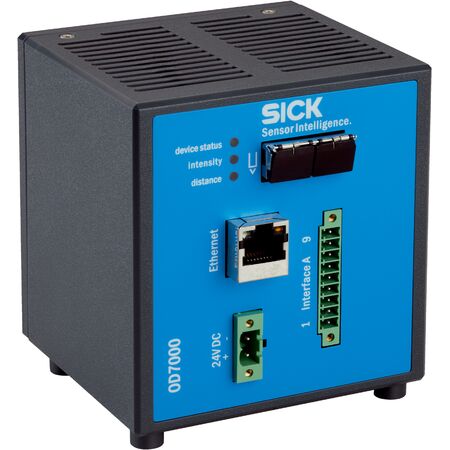

Coating Thickness Sensor OD7000-10401032 | 4 mm Measuring Range | 180 nm Axial Resolution | IP20 Rated | by SICK
The Coating Thickness Sensor OD7000-10401032 is designed for precise measurement of coating thickness on natural objects, making it ideal for industrial quality control and inspection. With a measuring range of 4 mm and high resolution of 180 nm axial and 8 µm lateral, this sensor ensures accuracy in manufacturing processes. Its visible white LED light source and IP20 rated enclosure provide durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 4 mm
- Resolution: Axial 180 nm, Lateral 8 µm
- Linearity: ≥ 1.4 µm
- Number of measuring channels: 1
- Light source: Visible white LED
- LED risk group: Risk group 1 IEC 62471
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP)
- Data transmission rate: RS-232 max 1.8 MBaud, RS-422 max 10 MBaud, Ethernet 100 Mbit/s
- Supply voltage: DC 24 V ± 10%
- Power consumption: 4 W
- Warm-up time: 30 min
- Enclosure rating: IP20 (IEC 60529)
- Protection class: III (IEC 61140)
- Electrical safety: IEC 61010
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 30% to 75% non-condensing
- Electromagnetic compatibility: Radiated emission EN 61326-1
- Dimensions (H x L x W): 106mm x 95mm x 95mm
- Weight: 0.5 kg
Key Features
- Measuring range of 4 mm
- High resolution: Axial 180 nm, Lateral 8 µm
- Linearity of ≥ 1.4 µm
- Single measuring channel
- Visible white LED light source
- Risk group 1 LED according to IEC 62471
- IP20 rated enclosure
- 3 status LEDs for indication
Professional Installation Requirements
- Installation and setup should be performed by qualified personnel familiar with industrial sensors and electrical safety standards.
Applications
- Coating thickness measurement on natural objects
- Industrial quality control and inspection
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact measurement reduces material waste
- Energy-efficient LED light source
- Supports quality control to minimize defective products
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD7000-10401032 sensor is available for immediate purchase, ideal for industrial coating thickness measurement and quality control applications.
