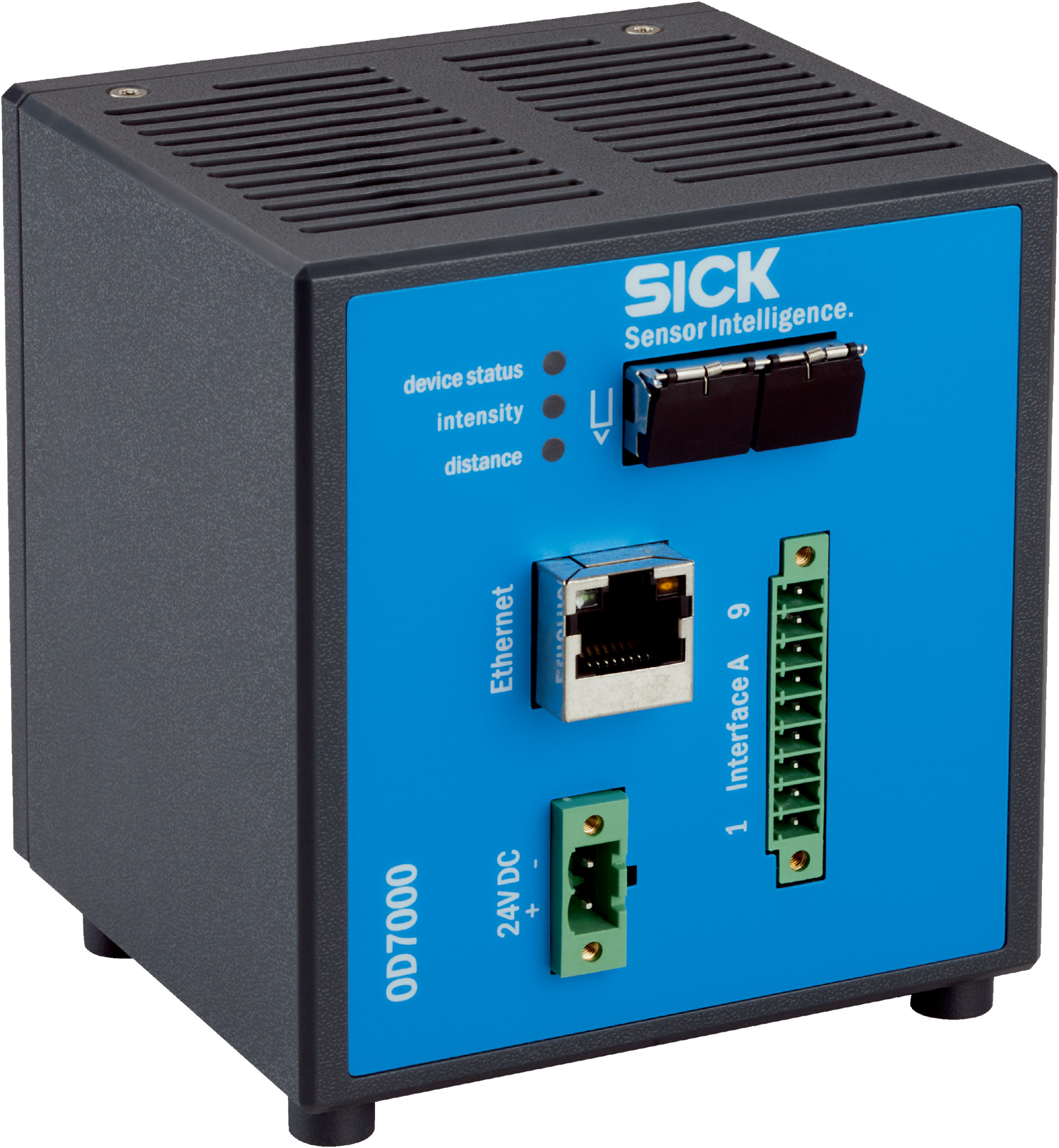

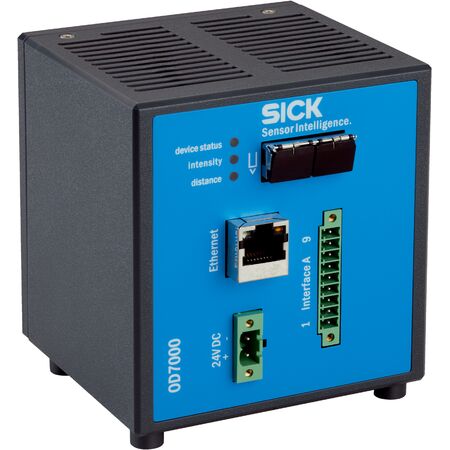

Coating Thickness Sensor OD7000-11001032 | 10 mm Measuring Range | 400 nm Resolution | IP20 Rated | by SICK
The Coating Thickness Sensor OD7000-11001032 is designed for precise industrial coating thickness measurement, featuring a measuring range of 10 mm and high resolution of 400 nm axial and 16 µm lateral. Ideal for quality control in manufacturing and natural object surface analysis, this sensor utilizes a visible white LED light source and complies with IEC safety standards, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 10 mm
- Resolution: Axial 400 nm, Lateral 16 µm
- Linearity: ≥ 4 µm
- Number of measuring channels: 1
- Light source: Visible white LED
- LED risk group: Risk group 1 IEC 62471
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP)
- Data transmission rate: RS-232 max 1.8 MBaud, RS-422 max 10 MBaud, Ethernet 100 Mbit/s
- Supply voltage: DC 24 V ± 10%
- Power consumption: 4 W
- Warm-up time: 30 min
- Indication: 3 status LEDs
- Enclosure rating: IP20 (IEC 60529)
- Protection class: III (IEC 61140)
- Electrical safety: IEC 61010
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 30% to 75% non-condensing
- Electromagnetic compatibility: Radiated emission EN 61326-1
- Connection type: Female RJ-45 connector, 9-pin terminal strip
- Optical fiber length: 3 m
- Dimensions (H x L x W): 106mm x 95mm x 95mm
- Weight: 0.5 kg
Key Features
- Measuring range of 10 mm
- High resolution: Axial 400 nm, Lateral 16 µm
- Linearity of ≥ 4 µm
- Single measuring channel
- Visible white LED light source
- Risk group 1 LED according to IEC 62471
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial coating thickness measurement
- Quality control in manufacturing
- Natural object surface analysis
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact measurement reduces material waste
- Energy-efficient LED light source
- Supports quality control to minimize defective products
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD7000-11001032 sensor is available for immediate purchase, ideal for industrial coating thickness measurement and quality control applications.
