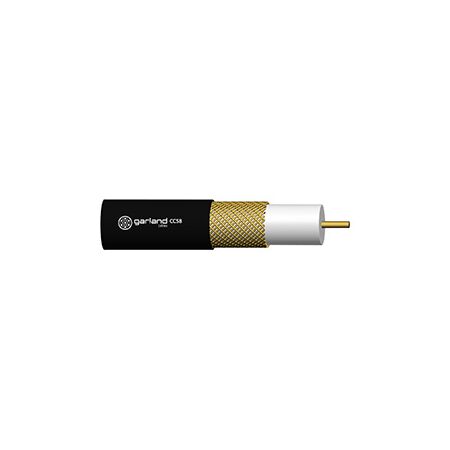

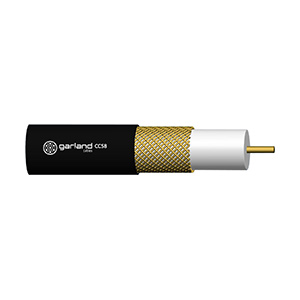

Coax Cable Low Loss RG58 50Ω | 100m Length | Solid PE Insulation | PVC Outer Sheath | by Madison
Coax Cable Low Loss RG58 50Ω is designed for reliable telecommunications and data transmission. With a 100m length, solid PE insulation, and a durable PVC outer sheath, this cable is perfect for networking, CCTV, and audio/video applications. Its low loss characteristics ensure optimal signal quality, making it ideal for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coax Cable Low Loss RG58 50Ω | 100m Length | Solid PE Insulation | PVC Outer Sheath | by Madison
Brand: Madison
SKU: CC58100
Alternatively Known As: RG58 Coaxial Cable, Low Loss RG58 Cable, 50 Ohm Coax Cable, RG58 100m Cable
Technical Specifications
- Conductor: 20 AWG, 19 strands of 0.19mm diameter tinned copper
- Conductor DC Resistance @ 20°C: 35.1Ω/km
- Characteristic Impedance: 50±3Ω at 1MHz
- Insulation: Solid PE, 0.95mm thickness, nominal OD 2.9mm
- Braiding: 0.93mm thickness
- Outer Sheath: PVC, 0.7mm thickness, nominal OD 4.95mm
- Insulation Resistance: Minimum 1,000 MΩ.km at 20°C
- Voltage Test: 500V/1min conductor to core, 3.0kV AC/1min core to sheath
- Operating Temperature Range: -15°C to 70°C
- Minimum Bend Radius: 50mm
- Approximate Mass: 4.4kg per 100m
- Pack Type: Wooden Reel
- Dimensions (H x L x W): 218mm x 100000mm x 330mm
- Weight: 4.4 kg
Key Features
- Low loss RG58 coaxial cable with 50Ω characteristic impedance
- Compliant with AS/ACIF S008 and UL758 standards
- ROHS compliant and A-Tick certified
- Solid PE insulation with high elongation and durability
- PVC outer sheath providing mechanical protection and flexibility
- Voltage tested for conductor to core and core to sheath
- Operating temperature range from -15°C to 70°C
- Minimum bend radius of 50mm for installation
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with electrical and telecommunications standards and to maintain cable integrity.
Applications
- Telecommunications and radio frequency signal transmission
- Networking and data communication
- CCTV and security camera installations
- Broadcast and audio/video signal distribution
Standards & Compliance
- Complies with AS/ACIF S008 for telecommunications cabling
Environmental Benefits
- ROHS compliant ensuring reduced hazardous substances
- Durable materials reduce the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.
Available Now
The Madison Coax Cable Low Loss RG58 50Ω AA 100m is available for immediate purchase, ideal for telecommunications, networking, and security system installations.
