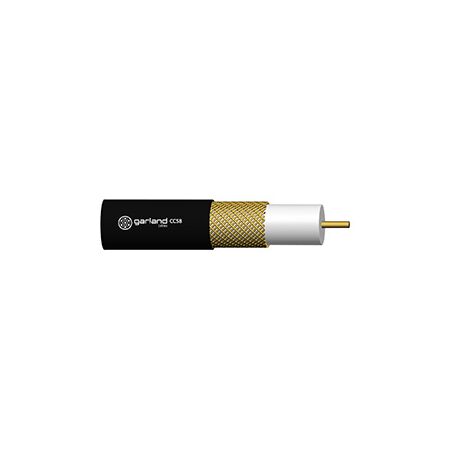

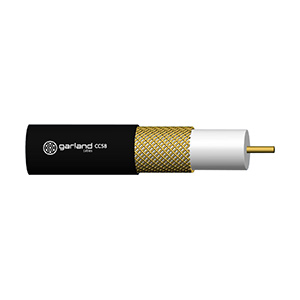

Coax Cable Low Loss RG58 50Ω | 300m Length | Durable PVC Sheath | by Madison
Coax Cable Low Loss RG58 50Ω is perfect for telecommunications, broadcasting, and networking applications. With a robust PVC outer sheath and solid PE insulation, this 300m cable ensures minimal signal loss and reliable performance. Designed for professional installation, it operates efficiently in temperatures ranging from -15°C to 70°C, making it a versatile choice for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coax Cable Low Loss RG58 50Ω | 300m Length | Durable PVC Sheath | @Each by Madison
Brand: Madison
SKU: CC58300B
Alternatively Known As: RG58 Coaxial Cable, 50 Ohm Coax Cable, Low Loss RG58 Cable, Coaxial RF Cable
Technical Specifications
- Conductor: 20 AWG, 19 strands of 0.19mm diameter tinned copper
- Conductor DC Resistance @ 20°C: 35.1 Ω/km
- Insulation: Solid PE, 0.95mm thickness, 2.9mm nominal outer diameter
- Braiding: 0.93mm thickness
- Outer Sheath: PVC, black color, 0.7mm thickness, 4.95mm nominal outer diameter
- Nominal Characteristic Impedance: 50±3 Ω at 1 MHz
- Minimum Insulation Resistance @ 20°C: 1,000 MΩ·km
- Voltage Test: 500V for conductor to core, 3.0kV AC for core to sheath
- Operating Temperature Range: -15°C to 70°C
- Minimum Bend Radius: 50mm
- Approximate Mass: 4.4 kg per 100m
- Dimensions (H x L x W): 218mm x 300000mm x 330mm
- Weight: 13.2 kg
Key Features
- Low loss RG58 coaxial cable with 50Ω characteristic impedance
- Compliant with AS/ACIF S008 and UL758 standards
- RoHS compliant and A-Tick certified
- Solid PE insulation with PVC outer sheath for durability
- Operating temperature range from -15°C to 70°C
- Minimum bend radius of 50mm for installation flexibility
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure proper handling and compliance with electrical standards.
Applications
- Telecommunications: Radio frequency transmission
- Broadcasting: TV and radio antenna connections
- Networking: Data and signal transmission
- General: Low loss coaxial cable applications requiring 50Ω impedance
Standards & Compliance
- Complies with AS/ACIF S008 standard
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials reduce the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.
Available Now
The Madison Coax Cable Low Loss RG58 50Ω AA 300m is available for immediate purchase, ideal for telecommunications, broadcasting, and networking applications.
