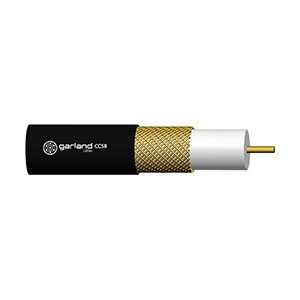

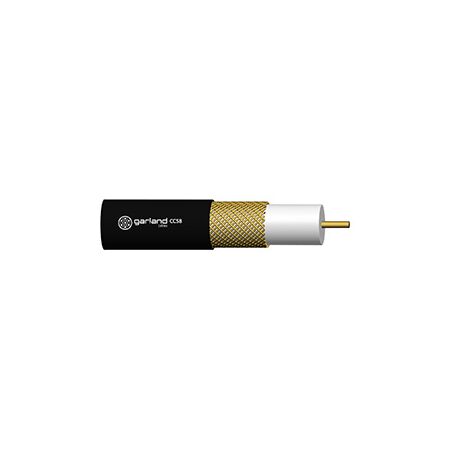

Coax Cable Low Loss RG58 50Ω | 500m Length | AS/ACIF S008 Compliant | ROHS Certified | by Madison
Coax Cable Low Loss RG58 50Ω is designed for optimal signal transmission in telecommunications, broadcasting, and security systems. With a robust 500m length, solid PE insulation, and PVC outer sheath, it ensures durability and compliance with AS/ACIF S008 standards. Ideal for professional installations, this cable supports a wide operating temperature range and features a minimum bend radius of 50mm for easy handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coax Cable Low Loss RG58 50Ω | 500m Length | AS/ACIF S008 Compliant | ROHS Certified | by Madison
Brand: Madison
SKU: CC58500
Alternatively Known As: RG58 Coaxial Cable, Low Loss Coax Cable, 50 Ohm Coax Cable, RG58 50Ω Cable
Technical Specifications
- Conductor: 20 AWG, 19 strands of 0.19mm diameter TC
- Insulation: Solid PE, 0.95mm thickness, 2.9mm nominal OD
- Braiding: 0.93mm thickness
- Outer Sheath: PVC, 0.7mm thickness, 4.95mm nominal OD
- Max Conductor DC Resistance @ 20°C: 35.1Ω/km
- Nominal Characteristic Impedance @ 1MHz: 50±3Ω
- Minimum Insulation Resistance @ 20°C: 1,000 MΩ.km
- Voltage Test: 500V/1min conductor to core, 3.0kV ac/1min core to sheath
- Operating Temperature Range: -15 to 70°C
- Minimum Bend Radius: 50mm
- Approximate Mass: 4.4kg per 100m
- Dimensions (H x L x W): 218mm x 500000mm x 330mm
- Weight: 22 kg
Key Features
- Low loss RG58 coaxial cable with 50Ω impedance
- Compliant with AS/ACIF S008 and UL758 standards
- ROHS compliant and A-Tick certified
- Solid PE insulation with high elongation and durability
- PVC outer sheath providing mechanical protection
- Voltage test passed: 500V conductor to core, 3.0kV core to sheath
- Operating temperature range from -15°C to 70°C
- Minimum bend radius of 50mm for installation
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure proper handling and compliance with electrical and safety standards.
Applications
- Telecommunications: Radio frequency signal transmission
- Broadcasting: TV and radio antenna connections
- Networking: Data communication and networking setups
- Security Systems: CCTV and surveillance camera installations
Standards & Compliance
- Complies with AS/ACIF S008 standard
Environmental Benefits
- ROHS compliant ensuring reduced hazardous substances
- Durable materials reduce frequency of replacement and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.
Available Now
The Madison Coax Cable Low Loss RG58 50Ω AA 500m is available for immediate purchase, ideal for telecommunications, broadcasting, and security system installations.
