Coax Combo Figure 8 and RG59U Cable 100m Ness

BRAND: Ness
SKU: 100-318
$163.30 List price: $217.70
+ −
30 Days Return Electricians Unlock Trade Access

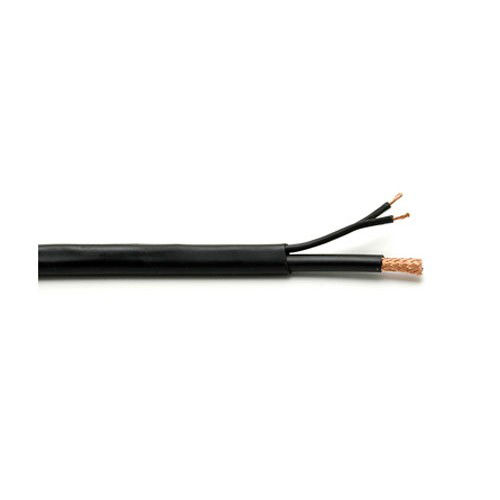

Ness coax combo cable features RG59U coax and figure 8 cable in a 100m length. Ideal for CCTV camera cabling.

Alternatively Known As: CCTV Coaxial Combo Cable, RG59U CCTV Cable with Figure 8 Power Cable, Coax and Power Cable

Technical Specifications
  • Cable Length: 100 m
  • Coaxial Cable: MIL-SPEC RG59U
  • Power Cable: 24/0.20 figure 8, twin-core
  • Construction: RG59U coaxial and figure 8 cable within the same sheath
  • Application: CCTV video and camera power cabling
  • Cable Marking: Metre marked
  • Reel Diameter: 340 mm
  • Product Code: 100-318
  • Dimensions (H x L x W): 340mm x 340mm x 140mm
  • Weight: 13 kg
Key Features
  • Combines CCTV video and power conductors in a single outer sheath
  • MIL-SPEC RG59U coaxial cable for CCTV signal transmission
  • 24/0.20 figure 8 cable for low-voltage camera power connections
  • 100 m reel suitable for longer CCTV cable runs
  • Designed for CCTV systems from standard-definition applications through to compatible HD-over-coax systems
  • Metre marked for easier cable measurement and installation
Applications
  • Analogue CCTV camera installations
  • HD-over-coax CCTV systems including compatible AHD, TVI and SDI equipment
  • Connecting CCTV cameras to video recorders and low-voltage power supplies
  • Commercial, residential and light-industrial security installations
Standards & Compliance
  • AS/CA S008:2020 may apply where the cable is used as customer cabling connected or intended to be connected to a telecommunications network; verify current product marking and installation suitability before use. ([acma.gov.au](https://www.acma.gov.au/australian-cabling-standards?utm_source=openai))
Environmental Benefits
  • Combines video and power conductors in one sheath, potentially reducing installation material and cable-management requirements
  • Durable cable construction can extend service life and reduce replacement waste
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Australian Consumer Law rights also apply. ([ness.com.au](https://ness.com.au/product-warranty))

Available Now

Available through Ness and authorised Australian distributors. ([ness.com.au](https://ness.com.au/61))
