Coax Explorer 2 Cable Tester Wattmaster
Wattmaster coaxial cable tester for mapping and fault-finding. Ideal for structured cabling verification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Tests coaxial cables: RG59, RG6/6Q, RG7, RG11
- LED indicators for PASS, OPEN, SHORT cable conditions
- Includes one red remote for cable location identification
- Supports up to four cables with additional remotes (sold separately)
- Powered by 2 x AAA batteries
- Compact size: 146mm length x 32mm width x 25mm height
- Weight: 85 grams
- Connection type: Coax F-adaptors
- Does not work through cable splitters
- Dimensions (H x L x W): 25mm x 146mm x 32mm
- Weight: 0.1 kg

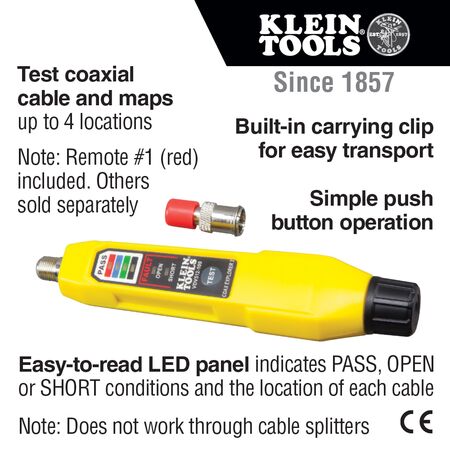

Key Features
- Tests and maps coaxial cables with simple push-button operation
- LED panel indicates PASS, OPEN, or SHORT conditions for easy cable identification
- Includes one red remote for cable location identification
- Supports up to four cables with additional colour-coded remotes (sold separately)
- Compact, pocket-sized design with carrying clip for easy transport
- Uses two replaceable AAA batteries
Professional Installation Requirements
- No professional installation required. Suitable for use by technicians and DIY users familiar with coaxial cable systems.
Applications
- Wire tracing and testing of coaxial cables including RG59, RG6/6Q, RG7, RG11
- Mapping cable location in residential and commercial coaxial cable installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps reduce cable waste by accurately identifying cable faults and locations
- Battery-powered with replaceable batteries to extend product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Coax Explorer™ 2 Cable Tester with Batteries and Red Remote is available now for immediate purchase. Ideal for telecommunications, cable installation, and maintenance professionals.
FAQ
Q: Which coaxial cable types can this tester check?
A: It tests RG59, RG6 6Q, RG7 and RG11 coaxial cables, indicating PASS, OPEN or SHORT conditions on its LED panel.
Q: Does the tester work through cable splitters?
A: No, it does not work through cable splitters, and is backed by the standard Wattmaster manufacturer warranty for added confidence.
Pair with a coaxmap kit to identify and label multiple coaxial cable runs during the same job.
A katapult wire stripper replacement blade keeps stripping tools precise when prepping cable ends for testing.
A BNC male connector for RG6 is useful when terminating cable ends ahead of testing.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
