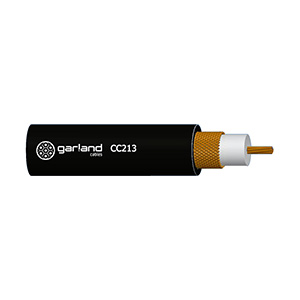

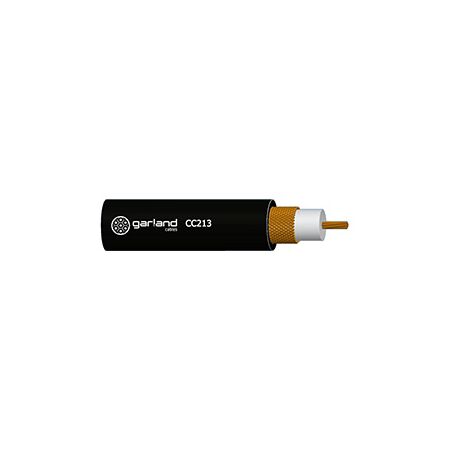

Coaxial Cable Low Loss RG213 | 50 Ohm Impedance | 100m Length | Durable PVC Sheath | by Madison
Coaxial Cable Low Loss RG213 is designed for optimal signal transmission with a 50 ohm impedance, making it ideal for communication and signal control systems. Built with solid PE insulation and a durable PVC outer sheath, this cable operates efficiently in temperatures ranging from -15 to 70°C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coaxial Cable Low Loss RG213 | 50 Ohm Impedance | 100m Length | Durable PVC Sheath | by Madison
Brand: Madison
SKU: CC213100
Alternatively Known As: RG213 Coaxial Cable, Low Loss RG213 Cable, 50 Ohm Coax Cable, Communication Coaxial Cable
Technical Specifications
- Conductor: 7 strands of 0.7mm BC wire, AWG 13
- Conductor DC Resistance @ 20°C: 6.5Ω/km
- Nominal Characteristic Impedance @ 1MHz: 50±3Ω
- Insulation Material: Solid PE, Nominal Thickness 2.5mm
- Outer Sheath Material: PVC, Nominal Thickness 1.15mm
- Insulation Elongation at Break: >300%
- Outer Sheath Elongation at Break: >100%
- Tensile Strength Before Aging: >12MPa
- Voltage Test: Conductor to core 500V for 1 min
- Voltage Test: Core to sheath 3.0kV AC for 1 min
- Operating Temperature Range: -15 to 70°C
- Max Recommended Pulling Tension: 188N
- Minimum Bend Radius (Installation): 103mm
- Dimensions (H x L x W): 394mm x 100000mm x 540mm
- Weight: 15.6 kg
Key Features
- Low loss coaxial cable with 50 ohm impedance
- Compliant with UL758 standard
- ROHS compliant
- Solid PE insulation with high elongation
- PVC outer sheath for durability
- Suitable for operating temperatures from -15 to 70°C
- Max recommended pulling tension of 188N
- Minimum bend radius of 103mm for installation
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure proper handling and compliance with electrical standards.
Applications
- Signal control systems
- Communication systems
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- ROHS compliant, ensuring reduced hazardous substances
- Durable materials reduce need for frequent replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.
Available Now
The Madison Coaxial Cable Low Loss RG213 50ohm 100m is available for immediate purchase, ideal for signal control and communication system applications.
