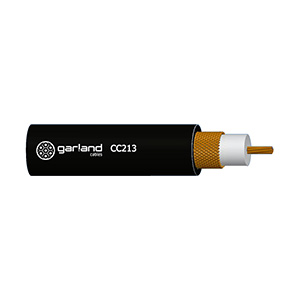

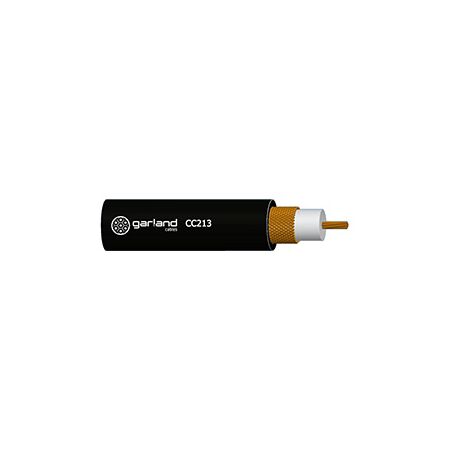

Coaxial Cable Low Loss RG213 | 50 Ohm Impedance | 500m Length | Durable PVC Sheath | by Madison
Coaxial Cable Low Loss RG213 is designed for optimal signal control and communication systems, featuring a 50 ohm characteristic impedance and a durable PVC outer sheath. With a solid PE insulation and high elongation properties, this cable ensures reliable performance in various applications, making it ideal for professional installations and long-term use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coaxial Cable Low Loss RG213 | 50 Ohm Impedance | 500m Length | Durable PVC Sheath | by Madison
Brand: Madison
SKU: CC213500
Alternatively Known As: RG213 Coaxial Cable, Low Loss 50 Ohm Cable, Communication Coax Cable, Signal Control Cable
Technical Specifications
- Conductor: 13 AWG BC, 7 strands of 0.7mm
- Conductor DC Resistance @ 20°C: 6.5Ω/km
- Nominal Characteristic Impedance @ 1MHz: 50±3Ω
- Insulation Material: Solid PE, thickness 2.5mm, nominal OD 7.3mm
- Braiding: 0.91
- Outer Sheath Material: PVC, thickness 1.15mm, nominal OD 10.3mm
- Insulation Elongation at Break: >300%
- Outer Sheath Elongation at Break: >100%
- Tensile Strength Before Aging: >12MPa
- Voltage Test: 500V/1min conductor to core, 3.0kV ac/1min core to sheath
- Operating Temperature Range: -15 to 70°C
- Max Recommended Pulling Tension: 188N
- Minimum Bend Radius (Install): 103mm
- Approximate Mass: 15.6kg per 100m
- Dimensions (H x L x W): 394mm x 500000mm x 540mm
- Weight: 78 kg
Key Features
- Low loss coaxial cable with 50 ohm characteristic impedance
- Compliant with UL758 standard
- ROHS compliant
- Single core conductor with 13 AWG BC material
- Solid PE insulation with high elongation
- PVC outer sheath for durability
- Voltage test: 500V conductor to core, 3.0kV core to sheath
- Operating temperature range from -15 to 70°C
- Max recommended pulling tension of 188N
- Minimum bend radius of 103mm for installation
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper handling and compliance with electrical standards.
Applications
- Signal control systems
- Communication systems
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- ROHS compliant ensuring reduced hazardous substances
- Durable materials reduce need for frequent replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to Madison for specific warranty details.
Available Now
The Madison Coaxial Cable Low Loss RG213 50ohm 500m is available for immediate purchase, ideal for signal control and communication system applications.
