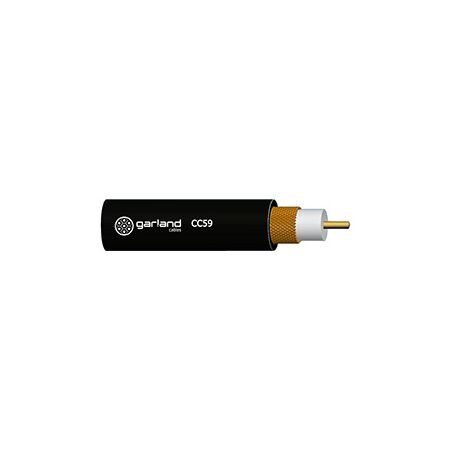

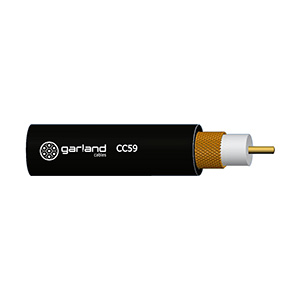

Coaxial Cable Low Loss RG59 | 75 Ohm | 300m Length | PVC Outer Sheath | by Madison
Coaxial Cable Low Loss RG59 is designed for optimal signal transmission with a 75 Ohm impedance, making it ideal for communication and signal control systems. Featuring a single core conductor made of 23 AWG bare copper and solid PE insulation, this 300m cable ensures durability and performance in various environments, with an operating temperature range of -15 to 70°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coaxial Cable Low Loss RG59 | 75 Ohm | 300m Length | PVC Outer Sheath | by Madison
Brand: Madison
SKU: CC59300B
Alternatively Known As: RG59 Coaxial Cable, Low Loss Coax Cable, 75 Ohm Coax Cable, Communication Cable, Signal Cable
Technical Specifications
- Pack Size: 300m
- Applicable Standards: UL758
- Number of Cores: 1
- Conductor AWG: 23
- Conductor Stranding: 1/0.6 mm
- Conductor Area: 0.29 mm²
- Conductor Material: BC (Bare Copper)
- Insulation Material: Solid PE
- Insulation Nominal Thickness: 1.5 mm
- Insulation Nominal Outer Diameter: 3.7 mm
- Braiding Thickness: 0.84 mm
- Outer Sheath Material: PVC
- Outer Sheath Colour: Black
- Outer Sheath Nominal Thickness: 0.9 mm
- Outer Sheath Nominal Outer Diameter: 6.2 mm
- Insulation Elongation at Break: >300%
- Outer Sheath Elongation at Break: >100%
- Tensile Strength Before Aging: >12 MPa
- Max Conductor DC Resistance @ 20°C: 62 Ω/km
- Nominal Characteristic Impedance @ 1MHz: 75±3 Ω
- Minimum Insulation Resistance @ 20°C: 1,000 MΩ·km
- Voltage Test Conductor to Core: 500V for 1 minute
- Voltage Test Core to Sheath: 3.0kV AC for 1 minute
- Operating Temperature Range: -15 to 70°C
- Max Recommended Pulling Tension: 107 N
- Minimum Bend Radius (Install): 62 mm
- Approximate Mass: 5.5 kg per 100m
- Dimensions (H x L x W): 445mm x 210mm x 445mm
- Weight: 16.5 kg
Key Features
- Low loss RG59 coaxial cable
- Single core conductor with 23 AWG BC material
- Solid PE insulation with 1.5mm nominal thickness
- PVC outer sheath in black with 0.9mm nominal thickness
- Nominal characteristic impedance of 75±3Ω at 1MHz
- Voltage test: 500V/1min conductor to core, 3.0kV ac/1min core to sheath
- Operating temperature range from -15 to 70°C
- Max recommended pulling tension of 107N
- Minimum bend radius of 62mm during installation
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with electrical standards and optimal cable performance.
Applications
- Signal control systems
- Communication systems
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in the cable materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.
Available Now
The Madison Coaxial Cable Low Loss RG59 75Ω 300m is available for immediate purchase, ideal for signal control and communication system applications.
